Packaging
www.vishay.com
Vishay
Revision: 14-Feb-13
1
Document Number: 28721
For technical questions, contact: filmresistorsleaded@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Linear Leaded Resistors

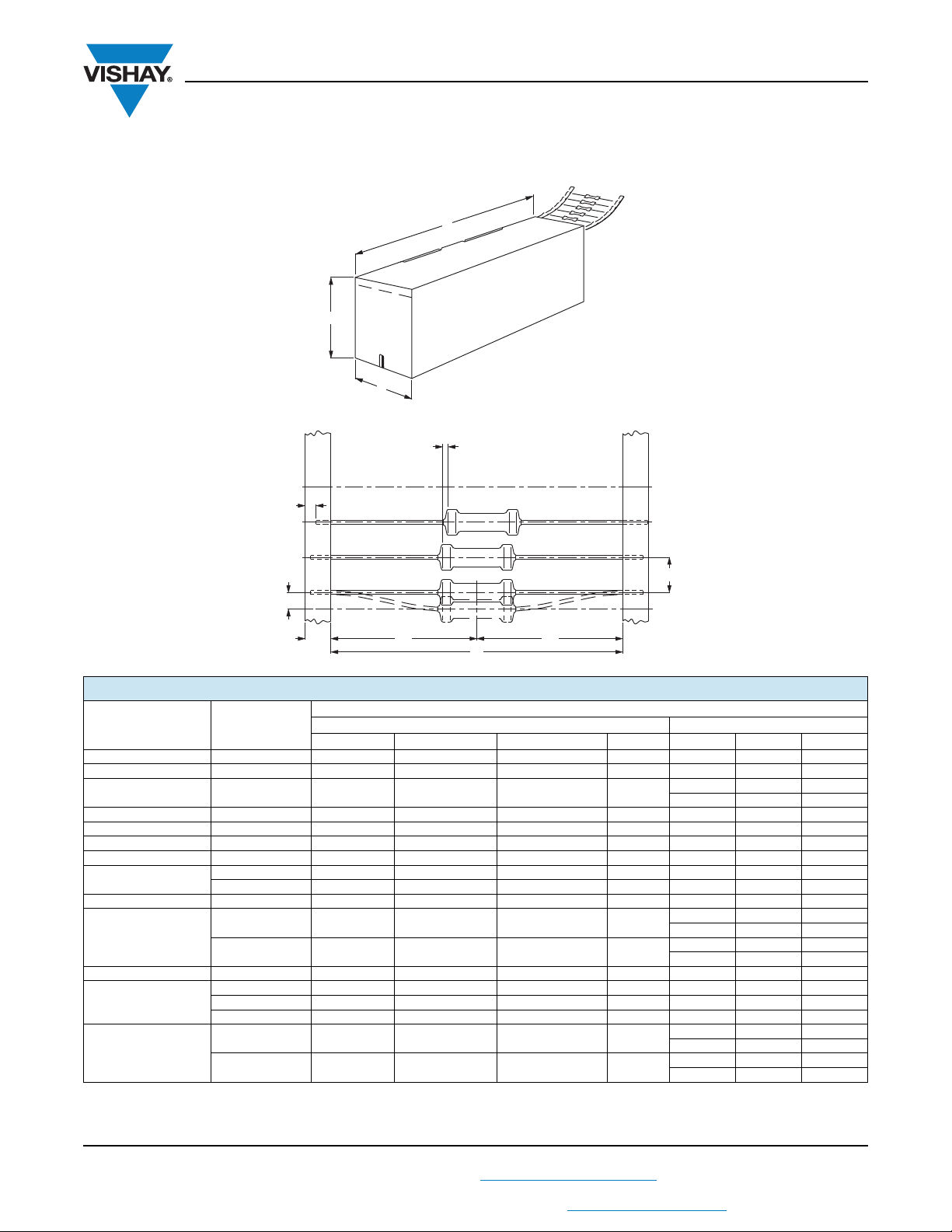

DIMENSIONS OF AMMOPACK
Bandolier in ammopack
Axial style on tape
Notes
(1)
Manufacturing at different production locations may involve use of differently sized box.
(2)
Radial taped
(3)
Manufacturing at different production locations may involve use of differently sized box
DIMENSIONS in millimeters - Resistor type, quantities and packaging dimensions for axial taped in ammopack
PRODUCT
TYPE
QUANTITY
PACKAGING DIMENSIONS
AXIAL TAPED ON BANDOLIER AMMOPACK
aA|B
1
- B
2
|SMNP
AC01 1000 6 ± 0.5 63 ± 2.0 1.2 10 85 58 260
AC03 500 6 ± 0.5 63 ± 2.0 1.2 10 85 58 260
AC04
(1)
500 6 ± 0.5 63 ± 2.0 1.2 10
85 70 260
85 58 260
AC05 500 6 ± 0.5 63 ± 2.0 1.2 10 86 118 270
AC07 500 6 ± 0.5 74 ± 2.0 1.2 10 90 118 265
AC10 250 6 ± 0.5 89 ± 4 1.2 10 105 105 265
AC01RT
(2)
2000 6 ± 0.5 71 ± 1 1.2 10 147 53 334
CBB 0207
1000 6 ± 0.5 53 ± 2.0 1.2 5 74 42 182
5000 6 ± 0.5 53 ± 2.0 1.2 5 77 82 324
MBA/SMA 0204 5000 6 ± 0.5 53 ± 2.0 1.2 5 75 55 330
MBB/SMA 0207
(3)
1000 6 ± 0.5 53 ± 1.0 1.2 5
74 42 184
78 31 260
5000 6 ± 0.5 53 ± 1.0 1.2 5
75 114 260
77 82 324
MBE/SMA 0414 1000 6 ± 0.5 63 ± 2.0 1.2 5 47 84 374
MRS16
100 6 ± 0.5 53 ± 2.0 1.2 5 74 42 184
1000 6 ± 0.5 53 ± 2.0 1.2 5 74 42 184
5000 6 ± 0.5 53 ± 2.0 1.2 5 75 55 330
MRS25
(2)
1000 6 ± 0.5 53 ± 1.0 1.2 5
74 42 184
78 31 260
5000 6 ± 0.5 53 ± 1.0 1.2 5
75 114 260
77 82 324
N
P
M
0.8 max. displacement
between any two resistors
1 max.
a
A
B
1
B
2
S ± 0.1
0 + 1.6
0
Dimensions in millimeters
Maximum 1 mm per 10 spacings
Maximum 0.5 mm per 5 spacings
