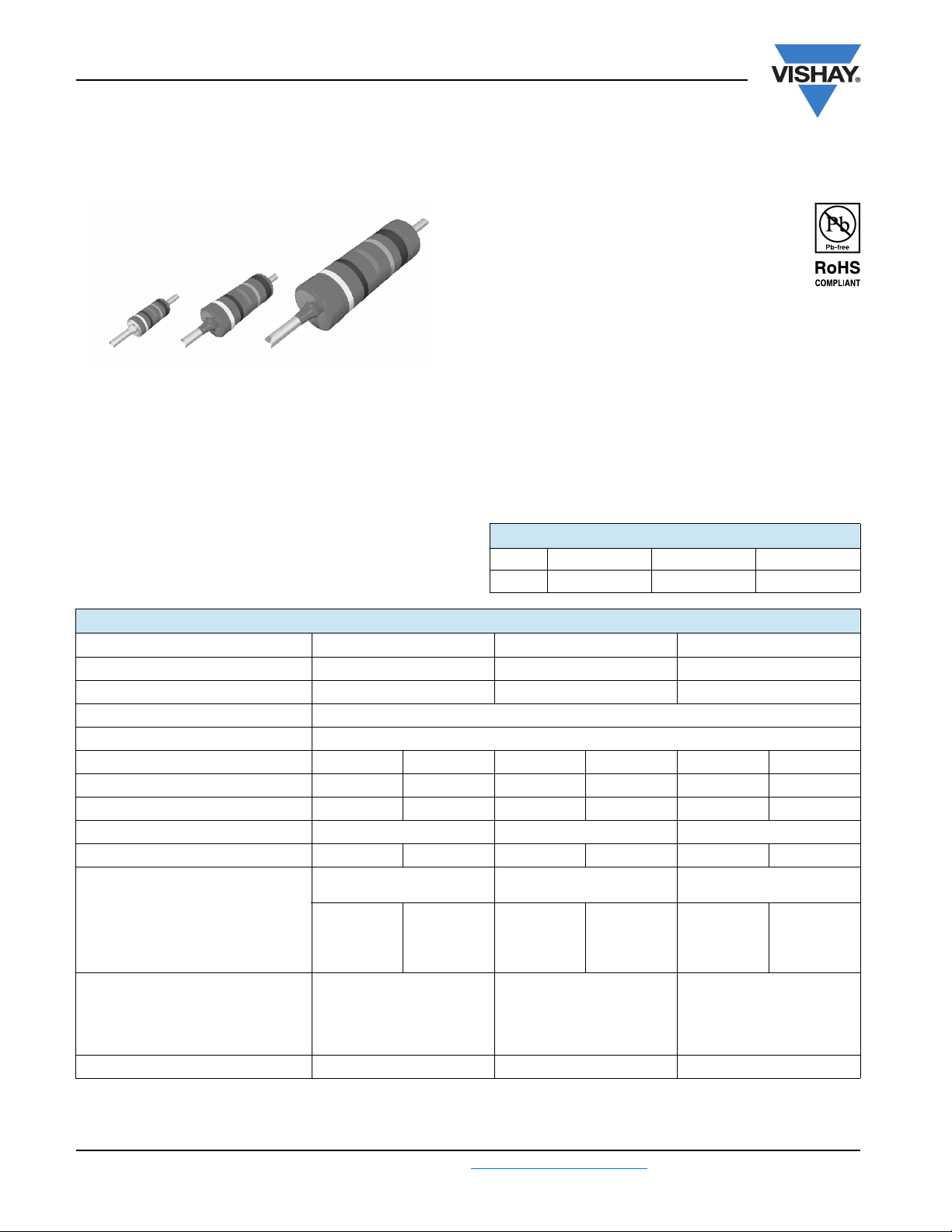

Professional Thin Film Leaded Resistors
MBA/SMA 0204, MBB/SMA 0207, MBE/SMA 0414 - Professional
Vishay Beyschlag
www.vishay.com For technical questions, contact: filmresistorsleaded@vishay.com Document Number: 28766
22 Revision: 23-Jul-10
DESCRIPTION
MBA/SMA 0204, MBB/SMA 0207 and MBE/SMA 0414
professional leaded thin film resistors are the general
purpose resistor for all fields of professional electronics
where reliability and stability is of major concern. Typical
applications include industrial, telecommunication and
medical equipment.
FEATURES
• Available in standard version or CECC version
(approved according to EN 140101-806)
• Advanced thin film technology
• Power dissipation rating up to 1 W
• Excellent overall stability: Class 0.25
• Wide professional range: 0.22 Ω to 22 MΩ
• Lead (Pb)-free solder contacts
• Pure tin plating provides compatibility with lead (Pb)-free
and lead containing soldering processes
• Compliant to RoHS directive 2002/95/EC
• AEC-Q200 qualified available
APPLICATIONS
• Industrial
• Telecommunication
• Medical equipment
Notes
• MB_ series has been merged with the related SMA series to form one series “MB_/SMA__”
• These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift increasing over
operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a functional lifetime.
METRIC SIZE
DIN 0204 0207 0414
CECC ABD
TECHNICAL SPECIFICATIONS
DESCRIPTION MBA/SMA 0204 MBB/SMA 0207 MBE/SMA 0414
CECC Size A B D
Resistance Range 0.22 Ω to 10 MΩ; 0 Ω 0.22 Ω to 22 MΩ; 0 Ω 0.22 Ω to 22 MΩ
Resistance Tolerance ± 5 %; ± 1 %; ± 0.5 %
Temperature Coefficient ± 50 ppm/K; ± 25 ppm/K
Operation Mode Long term Standard Long term Standard Long term Standard
Climatic Category (LCT/UCT/Days) 55/125/56 55/155/56 55/125/56 55/155/56 55/125/56 55/155/56
Rated Dissipation, P
70
0.25 W 0.4 W 0.4 W 0.6 W 0.65 W 1.0 W
Operating Voltage, U
max.
AC/DC 200 V 350 V 500 V
Film Temperature 125 °C 155 °C 125 °C155°C 125 °C155°C
Max. Resistance Change at P
70
for Resistance Range, ΔR/R max., After:
1 Ω to 332 kΩ 1 Ω to 1 MΩ 1 Ω to 2.4 MΩ
1000 h ≤ 0.25 % ≤ 0.5 % ≤ 0.25 % ≤ 0.5 % ≤ 0.2 % ≤ 0.4 %
8000 h ≤ 0.5 % ≤ 1.0 % ≤ 0.5 % ≤ 1.0 % ≤ 0.4 % ≤ 0.8 %
225 000 h ≤ 1.5 % - ≤ 1.5 % - ≤ 1.2 % -
Permissible Voltage Against Ambient
(Insulation):
1 Minute; U
ins
300 V 500 V 800 V
Continuous 75 V 75 V 75 V
Failure Rate: FIT
observed
≤ 0.1 x 10
-9
/h ≤ 0.1 x 10
-9
/h ≤ 0.1 x 10
-9
/h
