MC0063W0603110K5 其他数据使用手册 - Multicomp
制造商:
Multicomp
分类:
贴片电阻
封装:
0603
描述:
MULTICOMP MC0063W0603110K5 片式电阻器, 表面贴装, 厚膜, MC系列, 10.5 kohm, 50 V, 0603 [1608公制], 63 mW, ± 1%
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
封装尺寸在P2
功能描述在P1P2P3P4P5P6P7P8P9P10P11
导航目录
MC0063W0603110K5数据手册
Page:
of 11 Go
若手册格式错乱，请下载阅览PDF原文件
www.element14.com
www.farnell.com
www.newark.com

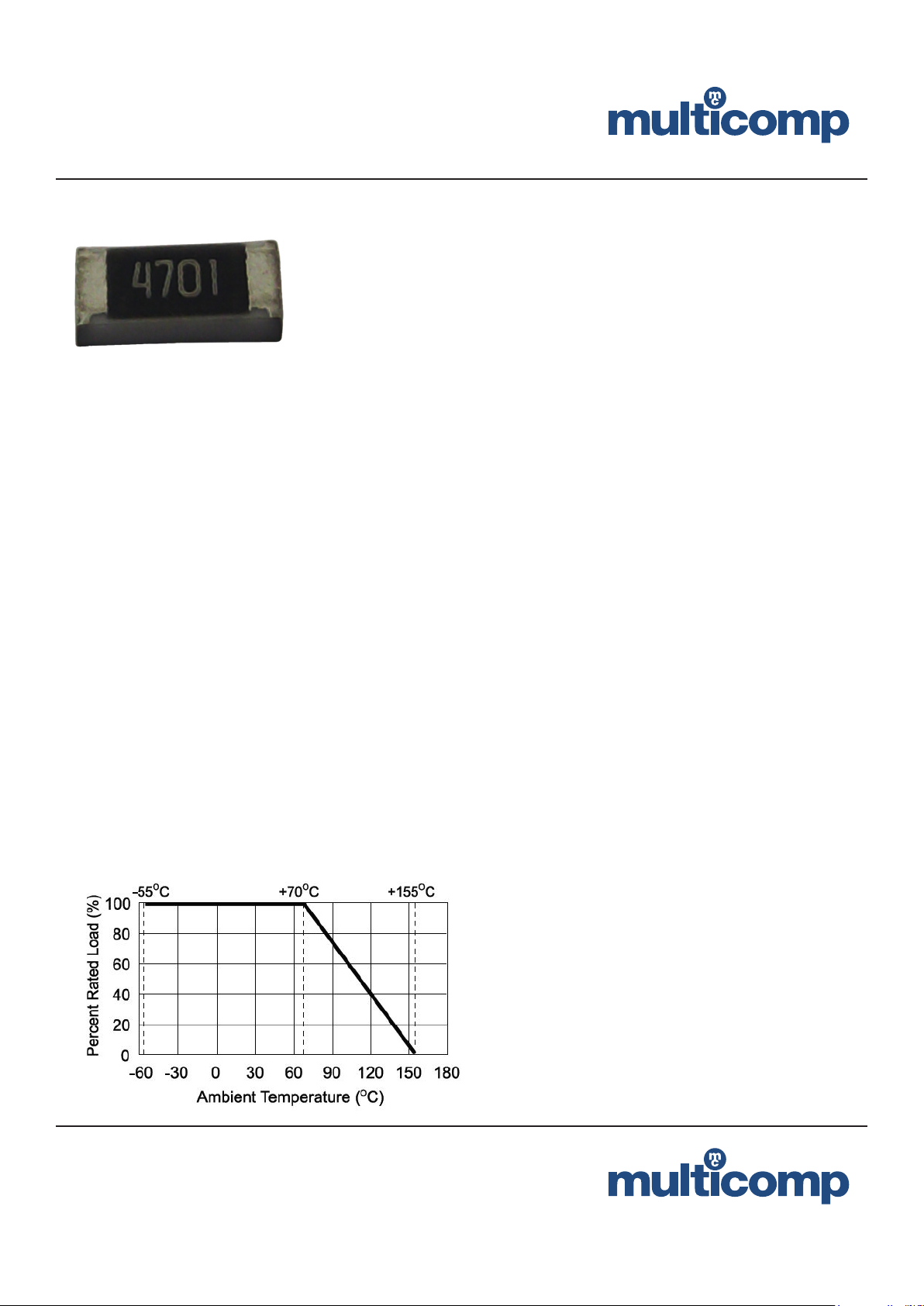

Page <1> V1.213/01/14
Thick Film Chip Resistor
0603
Features
• Small size and light weight
• Suitable for both wave and reow soldering
• Reduction of assembly costs
Performance Specication
Temperature Coefcient : 1Ω to 10Ω ±400PPM/°C
11Ω to 100Ω ±200PPM/°C
>100Ω ±100PPM/°C
Short Time Overload : ±5% : ±(2% +0.1Ω)Max.
±1% : ±(1% +0.1Ω)Max.
Insulation Resistance : Min. 1,000MΩ
Dielectric Withstanding Voltage : No evidence of ashover, mechanical damage,
arcing or insulation breakdown.
Terminal Bending : ±(1% +0.05Ω) Max.
Soldering Heat : ±(1% +0.05Ω) Max.
Solderability : Min. 95% coverage
Temperature Cycling : ±5% : ±(1% +0.05Ω) Max.
±1% : ±(0.5% +0.05Ω) Max.
Humidity (Steady State) : ±5% : ±(3% +0.1Ω) Max.
±1% : ±(0.5% +0.1Ω) Max.
Load Life in Humidity : ±5% : ±(3% +0.1Ω) Max.
±1% : ±(1% +0.1Ω) Max.
Load Life : ±5% : ±(3% +0.1Ω) Max.
±1% : ±(1% +0.1Ω) Max.
Derating Curve
