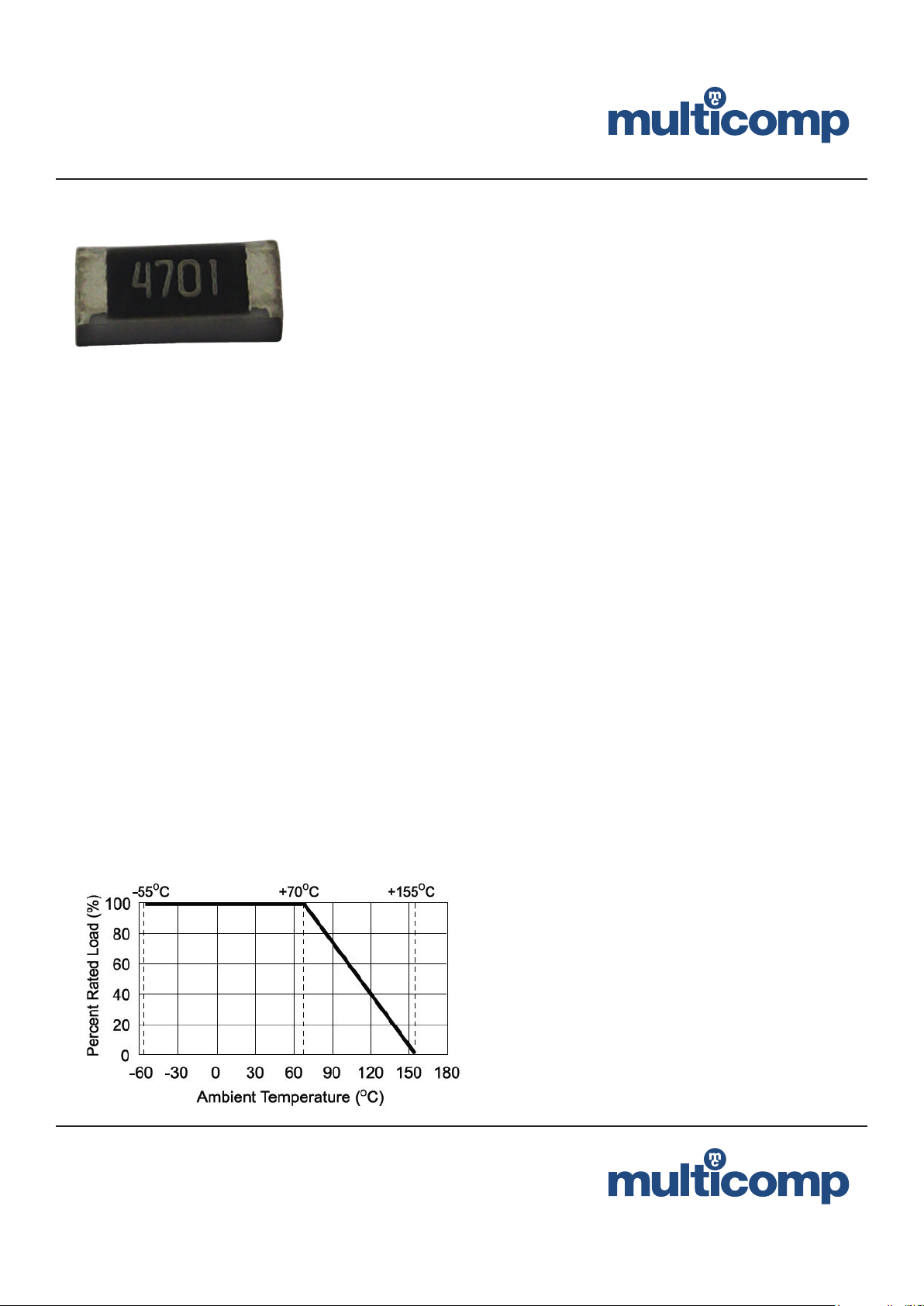

Thick Film Chip Resistor
0805
Features
• Small size and light weight
• Suitable for both wave and reow soldering
• Reduction of assembly costs
Performance Specication
Temperature Coefcient : 1Ω to 10Ω ±400PPM/°C
11Ω to 100Ω ±200PPM/°C
>100Ω ±100PPM/°C
Short Time Overload : ±5% : ±(2% +0.1Ω)Max.
±1% : ±(1% +0.1Ω)Max.
Insulation Resistance : Min. 1,000MΩ
Dielectric Withstanding Voltage : No evidence of ashover, mechanical damage,
arcing or insulation breakdown.
Terminal Bending : ±(1% +0.05Ω) Max.
Soldering Heat : ±(1% +0.05Ω) Max.
Solderability : Min. 95% coverage
Temperature Cycling : ±5% : ±(1% +0.05Ω) Max.
±1% : ±(0.5% +0.05Ω) Max.
Humidity (Steady State) : ±5% : ±(3% +0.1Ω) Max.
±1% : ±(0.5% +0.1Ω) Max.
Load Life in Humidity : ±5% : ±(3% +0.1Ω) Max.
±1% : ±(1% +0.1Ω) Max.
Load Life : ±5% : ±(3% +0.1Ω) Max.
±1% : ±(1% +0.1Ω) Max.
Derating Curve
