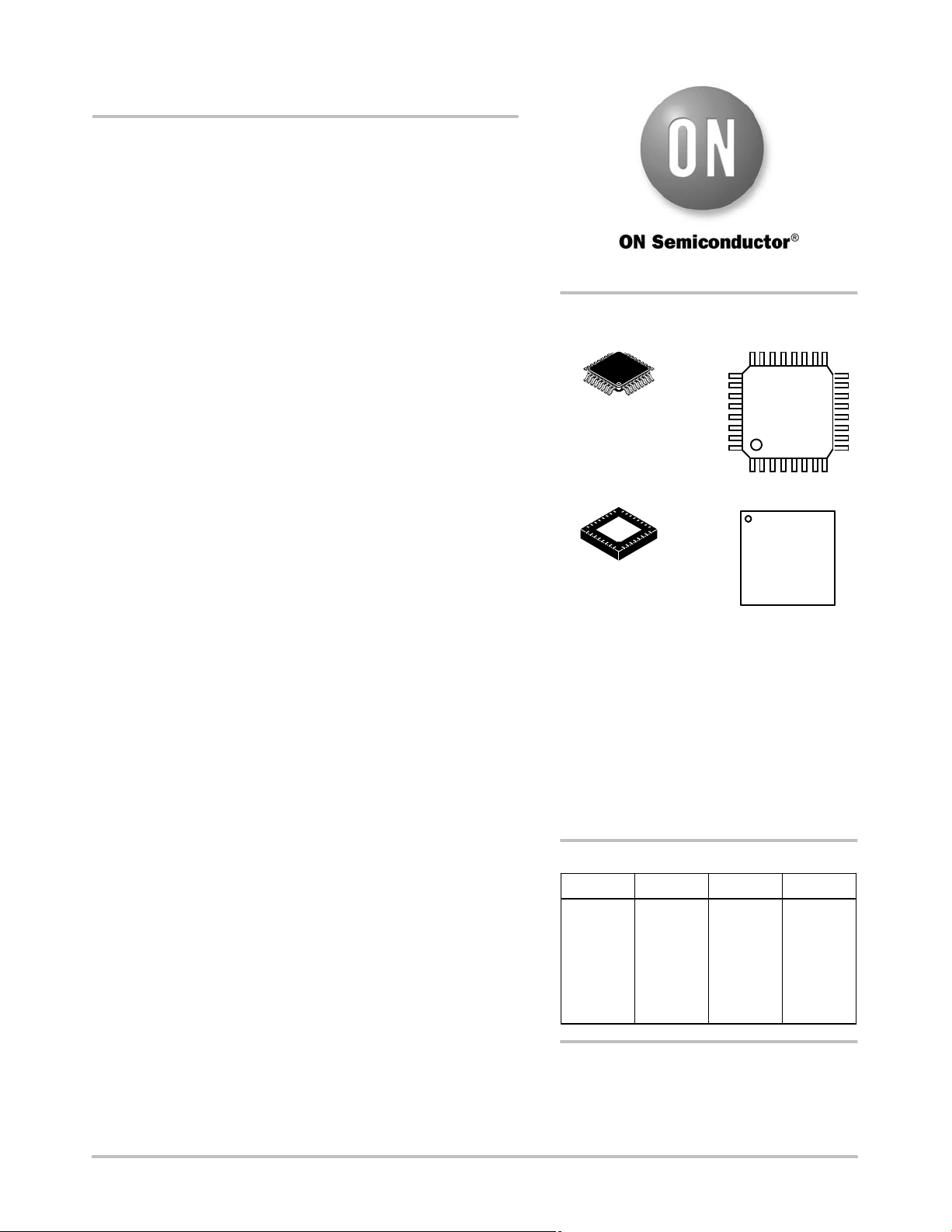

© Semiconductor Components Industries, LLC, 2011
May, 2011 − Rev. 6
1 Publication Order Number:
MC100EPT622/D
MC100EPT622
3.3V LVTTL/LVCMOS to
LVPECL Translator
Description
The MC100EPT622 is a 10−Bit LVTTL/LVCMOS to LVPECL
translator. Because LVPECL (Positive ECL) levels are used only +3.3 V
and ground are required. The device has an OR−ed enable input which
can accept either LVPECL (ENPECL) or TTL/LVCMOS inputs
(ENTTL). If the inputs are left open, they will default to the enable state.
The device design has been optimized for low channel−to−channel skew.
Features
• 450 ps Typical Propagation Delay
• Maximum Frequency > 1.5 GHz Typical
• PECL Mode
• Operating Range: V
CC
= 3.0 V to 3.8 V with V
EE
= 0 V
• PNP LVTTL Inputs for Minimal Loading
• Q Output Will Default HIGH with Inputs Open
• The 100 Series Contains Temperature Compensation
• Pb−Free Packages are Available*
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
*For additional marking information, refer to
Application Note AND8002/D.
MARKING
DIAGRAMS*
LQFP−32
FA SUFFIX
CASE 873A
32
1
MC100
EPT622
AWLYYWWG
A = Assembly Location
WL = Wafer Lot
YY = Year
WW = Work Week
G or G = Pb−Free Package
(Note: Microdot may be in either location)
Table 1. TRUTH TABLE
ENPECL
H
H
ENTTL D Q
X
X
L
X
X
H
H
L
H
L
H
L
X
H
L
H
L
L
See detailed ordering and shipping information in the package
dimensions section on page 6 of this data sheet.
ORDERING INFORMATION
http://onsemi.com
32
1
MC100
EPT622
AWLYYWWG
G
1
QFN32
MN SUFFIX
CASE 488AM
