MC145152DW2数据手册
Page:
of 24 Go
若手册格式错乱，请下载阅览PDF原文件

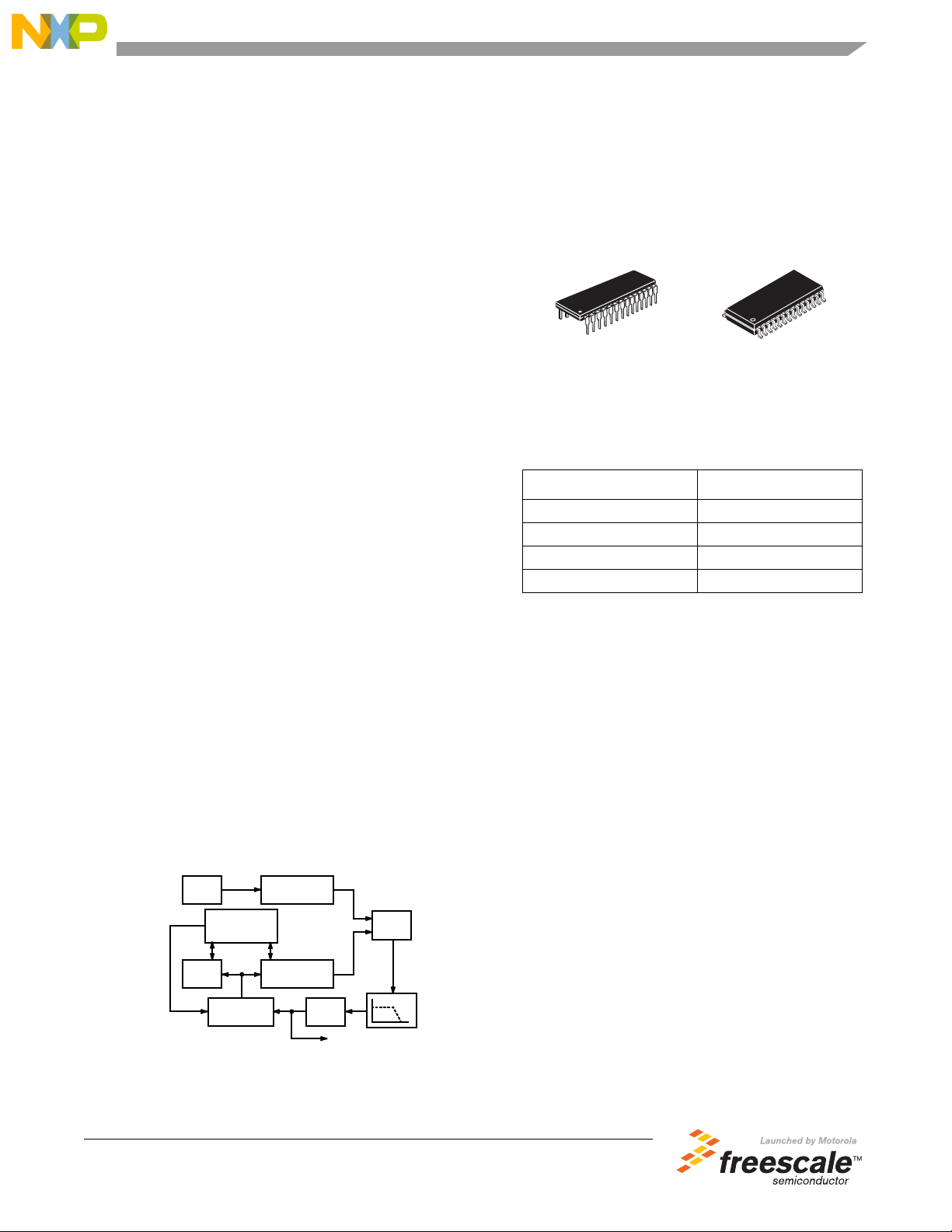

© Freescale Semiconductor, Inc., 2004. All rights reserved.
Freescale Semiconductor
Technical Data
Freescale reserves the right to change the detail specifications as may be required to permit improvements in the design of its
products.
MC145151-2/D
Rev. 5, 12/2004
MC145151-2
MC145152-2
DW Suffix
SOG Package
Case 751F
P Suffix
Plastic DIP
Case 710
Package Information
28
1
28
1
Ordering Information
Device Package
MC145151P2 Plastic DIP
MC145151DW2 SOG Package
MC145152P2 Plastic DIP
MC145152DW2 SOG Package
The devices described in this document are typically
used as low-power, phase-locked loop frequency
synthesizers. When combined with an external low-pass
filter and voltage-controlled oscillator, these devices can
provide all the remaining functions for a PLL frequency
synthesizer operating up to the device's frequency limit.
For higher VCO frequency operation, a down mixer or a
prescaler can be used between the VCO and the
synthesizer IC.
These frequency synthesizer chips can be found in the
following and other applications:
CATV TV Tuning
AM/FM Radios Scanning Receivers
Two-Way Radios Amateur Radio
÷ R
OSC
÷ N
÷ A
φ
÷ P/P + 1
VCO
OUTPUT FREQUENCY
CONTROL
LOGIC
MC145151-2 and
MC145152-2
PLL Frequency Synthesizers
(CMOS)
Contents
1 MC145151-2 Parallel-Input (Interfaces with
Single-Modulus Prescalers) . . . . . . . . . . . . . 2
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Typical Applications . . . . . . . . . . . . . . . . . . . 6
2 MC145152-2 Parallel-Input (Interfaces with
Dual-Modulus Prescalers) . . . . . . . . . . . . . . . 7
2.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Typical Applications . . . . . . . . . . . . . . . . . . 10
3 MC145151-2 and MC145152-2
Electrical Characteristics . . . . . . . . . . . . . . 12
4 Design Considerations . . . . . . . . . . . . . . . . 18
4.1 Phase-Locked Loop — Low-Pass Filter
Design . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2 Crystal Oscillator Considerations . . . . . . . . 19
4.3 Dual-Modulus Prescaling . . . . . . . . . . . . . . 21
5 Package Dimensions . . . . . . . . . . . . . . . . . . 23
