MC14520B 产品设计图 - ON Semiconductor（安森美）
制造商:
ON Semiconductor（安森美）
分类:
逻辑控制器
封装:
SOIC-16
描述:
双专柜 Dual Up Counters
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
封装尺寸在P1
焊盘布局在P1
标记信息在P1P2
导航目录
MC14520B数据手册
Page:
of 2 Go
若手册格式错乱，请下载阅览PDF原文件

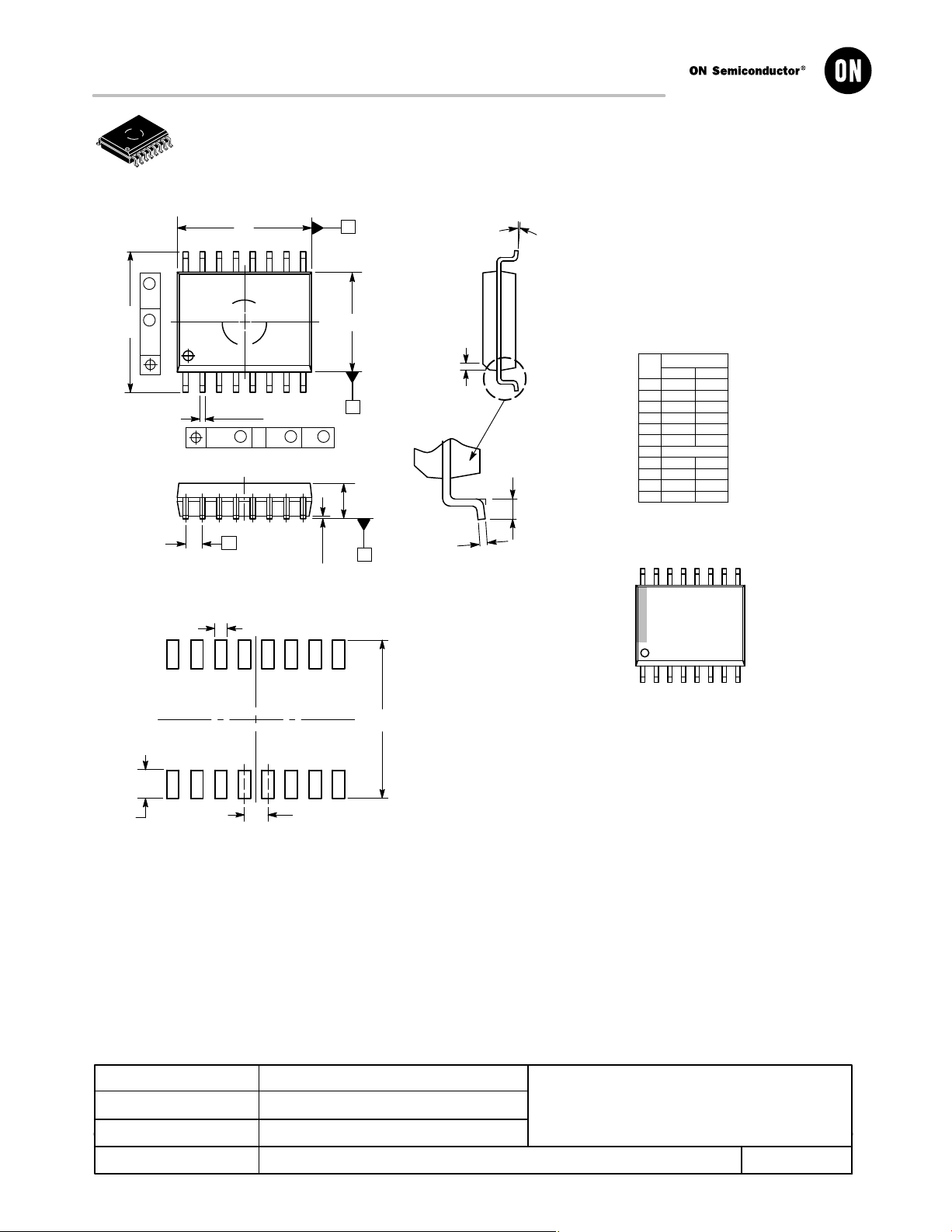

SOIC−16 WB
CASE 751G−03
ISSUE D
DATE 12 FEB 2013
SCALE 1:1
D
14X
B16X
SEATING
PLANE
S
A
M
0.25 B
S
T
16 9
81
h X 45
_
M
B
M
0.25
H8X
E
B
A
e
T
A1
A
L
C
q
NOTES:
1. DIMENSIONS ARE IN MILLIMETERS.
2. INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M, 1994.
3. DIMENSIONS D AND E DO NOT INLCUDE
MOLD PROTRUSION.
4. MAXIMUM MOLD PROTRUSION 0.15 PER SIDE.
5. DIMENSION B DOES NOT INCLUDE DAMBAR
PROTRUSION. ALLOWABLE DAMBAR
PROTRUSION SHALL BE 0.13 TOTAL IN
EXCESS OF THE B DIMENSION AT MAXIMUM
MATERIAL CONDITION.
DIM MIN MAX
MILLIMETERS
A 2.35 2.65
A1 0.10 0.25
B 0.35 0.49
C 0.23 0.32
D 10.15 10.45
E 7.40 7.60
e 1.27 BSC
H 10.05 10.55
h 0.25 0.75
L 0.50 0.90
q 0 7
__
XXXXX = Specific Device Code
A = Assembly Location
WL = Wafer Lot
YY = Year
WW = Work Week
G = Pb−Free Package
GENERIC
MARKING DIAGRAM*
16
1
XXXXXXXXXXX
XXXXXXXXXXX
AWLYYWWG
1
*This information is generic. Please refer to
device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “ G”,
may or may not be present.
11.00
16X
0.58
16X
1.62
1.27
DIMENSIONS: MILLIMETERS
1
PITCH
SOLDERING FOOTPRINT
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
http://onsemi.com
1
© Semiconductor Components Industries, LLC, 2002
October, 2002 − Rev. 0
Case Outline Number:
XXX
DOCUMENT NUMBER:
STATUS:
NEW STANDARD:
DESCRIPTION:
98ASB42567B
ON SEMICONDUCTOR STANDARD
SOIC−16 WB
Electronic versions are uncontrolled except when
accessed directly from the Document Repository. Printed
versions are uncontrolled except when stamped
“CONTROLLED COPY” in red.
PAGE 1 OF 2
