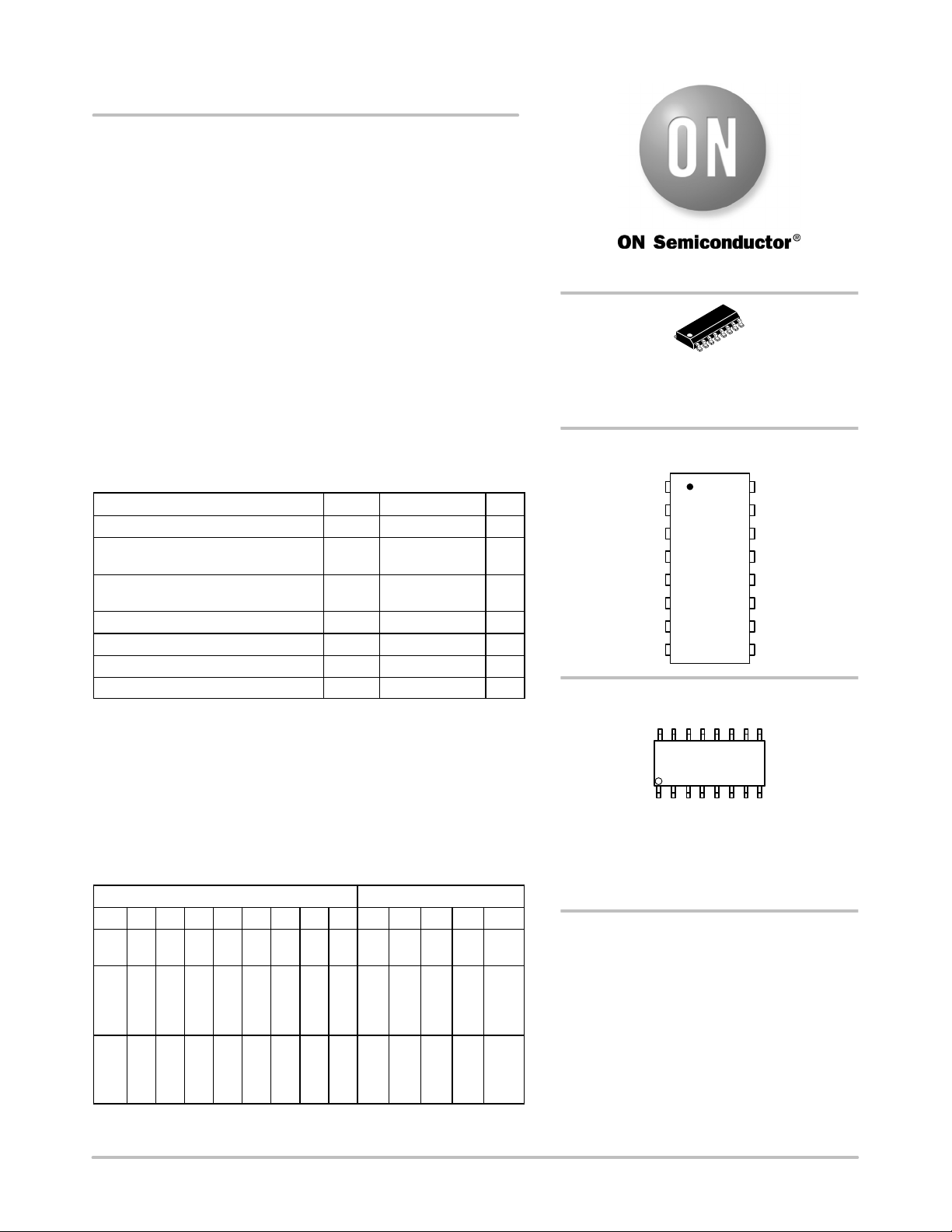

MC14532BDR2G数据手册
Page:
of 8 Go
若手册格式错乱，请下载阅览PDF原文件
© Semiconductor Components Industries, LLC, 2014
July, 2014 − Rev. 9
1 Publication Order Number:
MC14532B/D
MC14532B
8-Bit Priority Encoder
The MC14532B is constructed with complementary MOS (CMOS)
enhancement mode devices. The primary function of a priority
encoder is to provide a binary address for the active input with the
highest priority. Eight data inputs (D0 thru D7) and an enable input
(E
in)
are provided. Five outputs are available, three are address outputs
(Q0 thru Q2), one group select (GS) and one enable output (E
out
).
Features
• Diode Protection on All Inputs
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• Capable of Driving Two Low−Power TTL Loads or One Low−Power
Schottky TTL Load over the Rated Temperature Range
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• This Device is Pb−Free and is RoHS Compliant
MAXIMUM RATINGS (Voltages Referenced to V
SS
)
Rating
Symbol Value Unit
DC Supply Voltage Range V
DD
−0.5 to +18.0 V
Input or Output Voltage Range
(DC or Transient)
V
in
,
V
out
−0.5 to V
DD
+ 0.5 V
Input or Output Current
(DC or Transient) per Pin
I
in
, I
out
±10 mA
Power Dissipation, per Package (Note 1) P
D
500 mW
Ambient Temperature Range T
A
−55 to +125 °C
Storage Temperature Range T
stg
−65 to +150 °C
Lead Temperature (8 Sec Soldering) T
L
260 °C
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
1. Temperature Derating: “D/DW” Package: –7.0 mW/_C From 65_C To 125_C
This device contains protection circuitry to guard against damage due to high
static voltages or electric fields. However, precautions must be taken to avoid
applications of any voltage higher than maximum rated voltages to this
high−impedance circuit. For proper operation, V
in
and V
out
should be constrained
to the range V
SS
≤ (V
in
or V
out
) ≤ V
DD
.
Unused inputs must always be tied to an appropriate logic voltage level
(e.g., either V
SS
or V
DD
). Unused outputs must be left open.
TRUTH TABLE
Input Output
E
in
D7 D6 D5 D4 D3 D2 D1 D0 GS Q2 Q1 Q0 E
out
0 X X X X X X X X 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0 0 0 0 1
1 1 X X X X X X X 1 1 1 1 0
1 0 1 X X X X X X 1 1 1 0 0
1 0 0 1 X X X X X 1 1 0 1 0
1 0 0 0 1 X X X X 1 1 0 0 0
1 0 0 0 0 1 X X X 1 0 1 1 0
1 0 0 0 0 0 1 X X 1 0 1 0 0
1 0 0 0 0 0 0 1 X 1 0 0 1 0
1 0 0 0 0 0 0 0 1 1 0 0 0 0
X = Don’t Care
SOIC−16
D SUFFIX
CASE 751B
MARKING DIAGRAM
http://onsemi.com
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
ORDERING INFORMATION
A = Assembly Location
WL = Wafer Lot
YY, Y = Year
WW = Work Week
G = Pb−Free Package
14532BG
AWLYWW
13
14
15
16
9
10
11
125
4
3
2
1
8
7
6
D2
D3
GS
E
out
V
DD
Q0
D0
D1
D7
D6
D5
D4
V
SS
Q1
Q2
E
in
PIN ASSIGNMENT
1
1
