© Semiconductor Components Industries, LLC, 2011
September, 2011 − Rev. 13
1 Publication Order Number:
MC34262/D
MC34262, MC33262
Power Factor Controllers
The MC34262/MC33262 are active power factor controllers
specifically designed for use as a preconverter in electronic ballast
and in off−line power converter applications. These integrated
circuits feature an internal startup timer for stand−alone applications,
a one quadrant multiplier for near unity power factor, zero current
detector to ensure critical conduction operation, transconductance
error amplifier, quickstart circuit for enhanced startup, trimmed
internal bandgap reference, current sensing comparator, and a totem
pole output ideally suited for driving a power MOSFET.
Also included are protective features consisting of an overvoltage
comparator to eliminate runaway output voltage due to load removal,
input undervoltage lockout with hysteresis, cycle−by−cycle current
limiting, multiplier output clamp that limits maximum peak switch
current, an RS latch for single pulse metering, and a drive output high
state clamp for MOSFET gate protection. These devices are
available in dual−in−line and surface mount plastic packages.
Features
• Overvoltage Comparator Eliminates Runaway Output Voltage
• Internal Startup Timer
• One Quadrant Multiplier
• Zero Current Detector
• Trimmed 2% Internal Bandgap Reference
• Totem Pole Output with High State Clamp
• Undervoltage Lockout with 6.0 V of Hysteresis
• Low Startup and Operating Current
• Supersedes Functionality of SG3561 and TDA4817
• These are Pb−Free and Halide−Free Devices

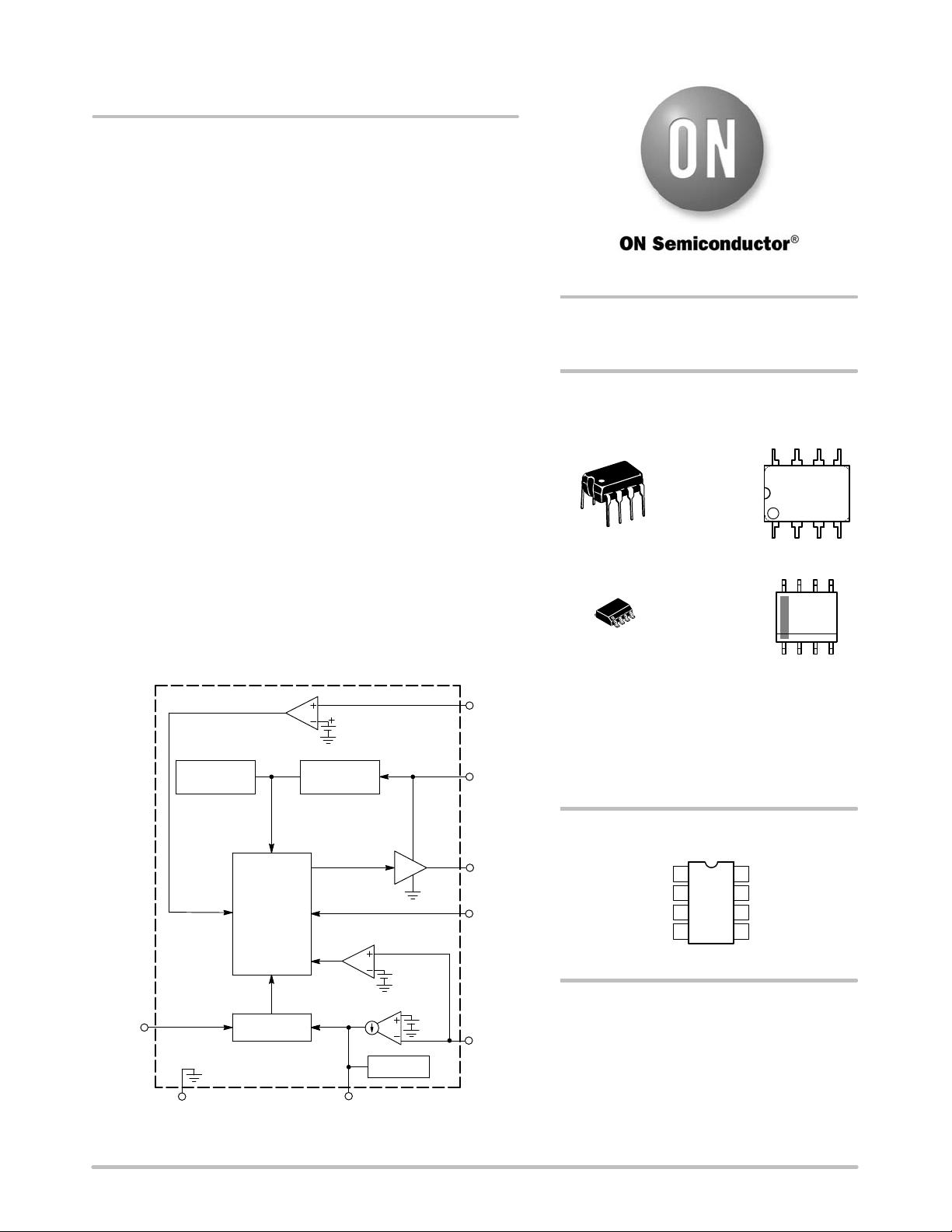

Figure 1. Simplified Block Diagram
Voltage
Feedback
Input
Multiplier,
Latch,
PWM,
Timer,
&
Logic
Error Amp
Multiplier
Undervoltage
Lockout
2.5V
Reference
Zero Current Detector
5
8
6
7
4
3
2
1
Drive Output
GND
Zero Current
Detect Input
Multiplier
Input
Compensation
V
CC
Current Sense
Input
Overvoltage
Comparator
+
1.08 V
ref
+
V
ref
Quickstart
POWER FACTOR
CONTROLLERS
PIN CONNECTIONS
SOIC−8
D SUFFIX
CASE 751
8
1
8
1
PDIP−8
P SUFFIX
CASE 626
Voltage Feedback
Input
1
2
3
4
8
7
6
5
(Top View)
Compensation
Multiplier Input
Current Sense
Input
V
CC
Drive Output
GND
Zero Current
Detect Input
http://onsemi.com
See detailed ordering and shipping information in the package
dimensions section on page 17 of this data sheet.
ORDERING INFORMATION
x = 3 or 4
A = Assembly Location
WL, L = Wafer Lot
YY, Y = Year
WW, W = Work Week
G = Pb−Free Package
G = Pb−Free Package
MARKING
DIAGRAMS
MC3x262P
AWL
YYWWG
1
8
3x262
ALYW
G
1
8
