© Semiconductor Components Industries, LLC, 2012
January, 2012 Rev. 11
1 Publication Order Number:
MC3403/D

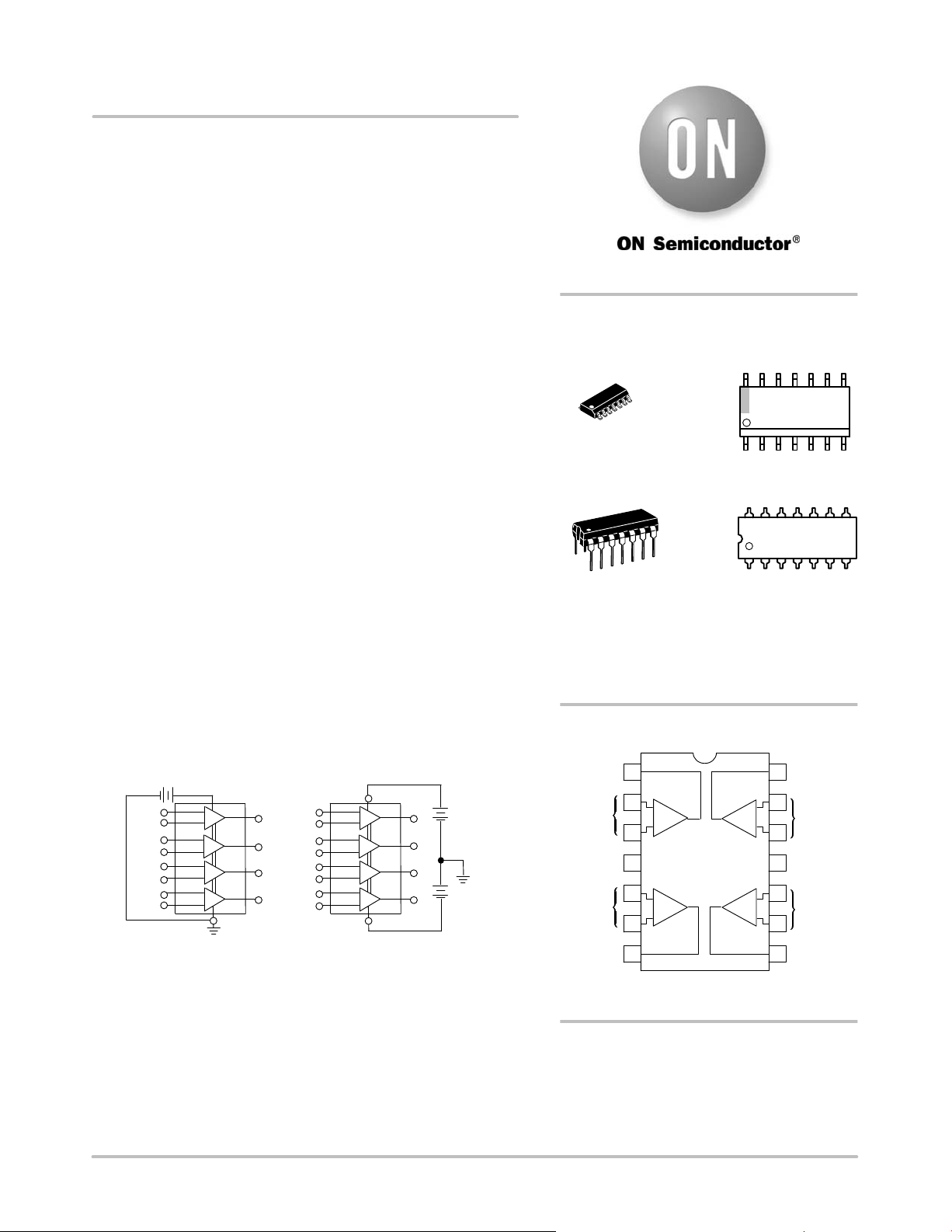

MC3403, MC3303
Single Supply Quad
Operational Amplifiers
The MC3403 is a low cost, quad operational amplifier with true
differential inputs. The device has electrical characteristics similar to
the popular MC1741C. However, the MC3403 has several distinct
advantages over standard operational amplifier types in single supply
applications. The quad amplifier can operate at supply voltages as low
as 3.0 V or as high as 36 V with quiescent currents about one third of
those associated with the MC1741C (on a per amplifier basis). The
common mode input range includes the negative supply, thereby
eliminating the necessity for external biasing components in many
applications. The output voltage range also includes the negative
power supply voltage.
Features
Short Circuit Protected Outputs
Class AB Output Stage for Minimal Crossover Distortion
True Differential Input Stage
Single Supply Operation: 3.0 V to 36 V
Split Supply Operation: ±1.5 V to ±18 V
Low Input Bias Currents: 500 nA Max
Four Amplifiers Per Package
Internally Compensated
Similar Performance to Popular MC1741C
Industry Standard Pinouts
ESD Diodes Added for Increased Ruggedness
PbFree Packages are Available
3.0 V to 36 V
Single Supply
V
EE
, GND
1
2
3
4
V
CC
V
CC
2
3
4
V
EE
1.5 V to 18 V
1.5 V to 18 V
Split Supplies
1
MARKING
DIAGRAMS
x = 3 or 4
A = Assembly Location
WL = Wafer Lot
YY, Y = Year
WW = Work Week
G = PbFree Package
PDIP14
P SUFFIX
CASE 646
1
14
PIN CONNECTIONS
1
2
3
4
5
6
78
9
10
11
12
13
14
-
+
-
+
-
+
-
+
Out 1
Inputs 1
V
CC
V
EE
/GND
Inputs 2
Out 2
Out 4
Inputs 4
Inputs 3
Out 3
1
2
4
3
(Top View)
1
14
MC3x03P
AWLYYWWG
http://onsemi.com
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
ORDERING INFORMATION
SOIC14
D SUFFIX
CASE 751A
14
1
MC3x03DG
AWLYWW
1
14
