© Semiconductor Components Industries, LLC, 2006
October, 2006 − Rev. 7
1 Publication Order Number:
MC74AC02/D
MC74AC02, MC74ACT02
Quad 2−Input NOR Gate
Features
• Outputs Source/Sink 24 mA
• ′ACT02 Has TTL Compatible Inputs
• Pb−Free Packages are Available
1314 12 11 10 9 8
21 34567
GND
V
CC

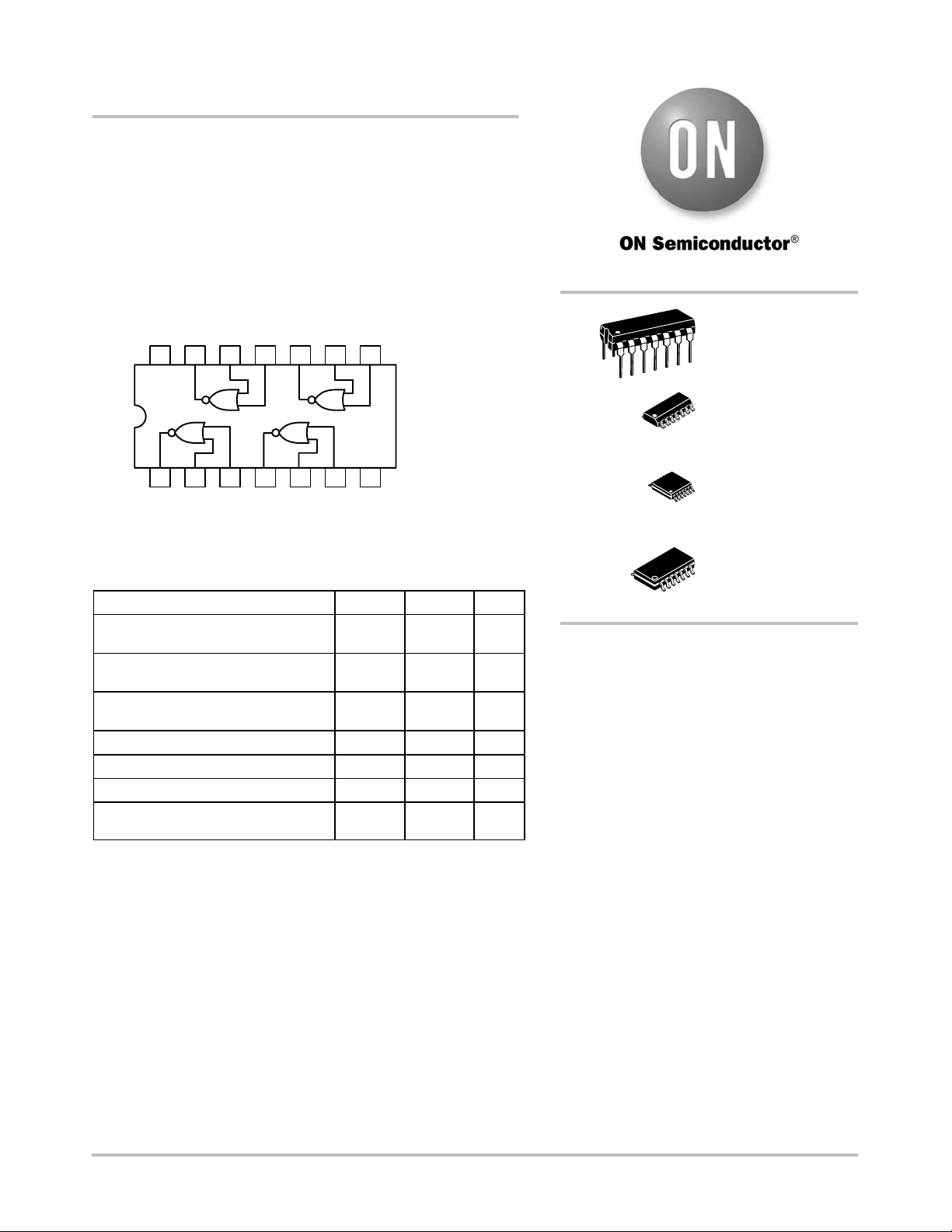

Figure 1. Pinout: 14−Lead Packages Conductors
(Top View)
MAXIMUM RATINGS
Rating Symbol Value Unit
DC Supply Voltage (Referenced to GND) V
CC
−0.5 to
+7.0
V
DC Input Voltage (Referenced to GND) V
in
−0.5 to
V
CC
+0.5
V
DC Output Voltage (Referenced to GND) V
out
−0.5 to
V
CC
+0.5
V
DC Input Current, per Pin I
in
±20 mA
DC Output Sink/Source Current, per Pin I
out
±50 mA
DC V
CC
or GND Current per Output Pin I
CC
±50 mA
Storage Temperature T
stg
−65 to
+150
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
TSSOP−14
DT SUFFIX
CASE 948G
1
14
SOEIAJ−14
M SUFFIX
CASE 965
1
14
SOIC−14
D SUFFIX
CASE 751A
1
14
1
14
PDIP−14
N SUFFIX
CASE 646
See detailed ordering and shipping information in the package
dimensions section on page 5 of this data sheet.
ORDERING INFORMATION
http://onsemi.com
