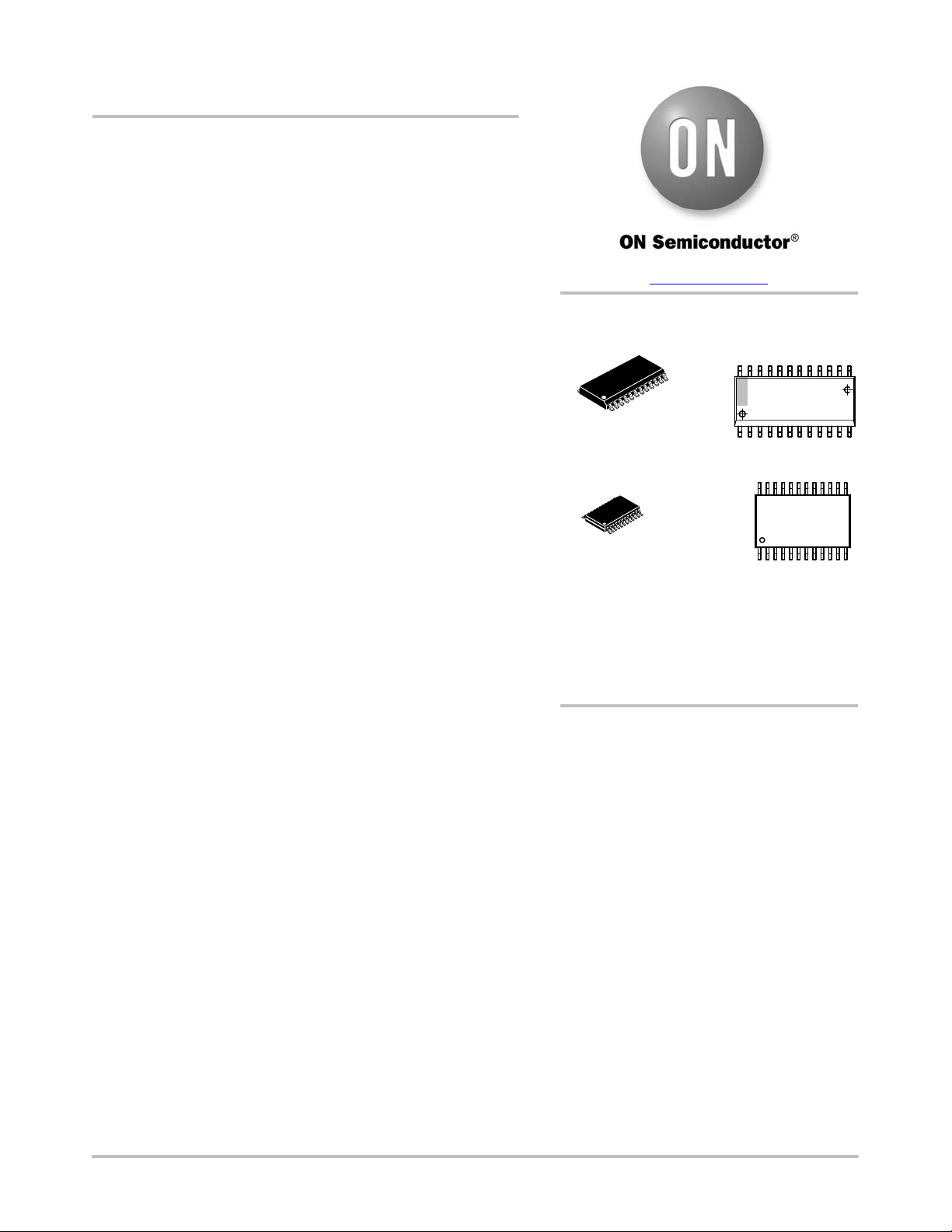

© Semiconductor Components Industries, LLC, 2015
May, 2015 − Rev. 2
1 Publication Order Number:
MC74HC4067A/D
MC74HC4067A
Quad Analog Switch/
Multiplexer/Demultiplexer
High−Performance Silicon−Gate CMOS
The MC74HC4067A utilizes silicon−gate CMOS technology to
achieve fast propagation delays, low ON resistances, and low
OFF−channel leakage current. This bilateral switch/
multiplexer/demultiplexer controls analog and digital voltages that
may vary across the full power−supply range (from V
CC
to GND).
The ON/OFF control inputs are compatible with standard CMOS
outputs; with pullup resistors, they are compatible with LSTTL outputs.
For analog switches with voltage−level translators, see the HC4316A.
Features
• Fast Switching and Propagation Speeds
• High ON/OFF Output Voltage Ratio
• Low Crosstalk Between Switches
• Diode Protection on All Inputs/Outputs
• Wide Power−Supply Voltage Range (V
CC
− GND) = 2.0 to 6.0 V
• Analog Input Voltage Range (V
CC
− GND) = 0 to 6.0 V
• Improved Linearity and Lower ON Resistance over Input Voltage
• Low Noise
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These are Pb−Free Devices
www.onsemi.com
MARKING
DIAGRAMS
A = Assembly Location
L, WL = Wafer Lot
Y, YY = Year
W, WW = Work Week
G = Pb−Free Package
See detailed ordering and shipping information in the package
dimensions section on page 10 of this data sheet.
ORDERING INFORMATION
TSSOP−24
DT SUFFIX
CASE 948H
24
1
SOIC−24
DW SUFFIX
CASE 751E
2
4
1
HC4067AG
AWLYWW
1
24
HC
4067AG
ALYW
1
24
(Note: Microdot may be in either location)
