© Semiconductor Components Industries, LLC, 2013
October, 2013 − Rev. 14
1 Publication Order Number:
MC74HC04A/D

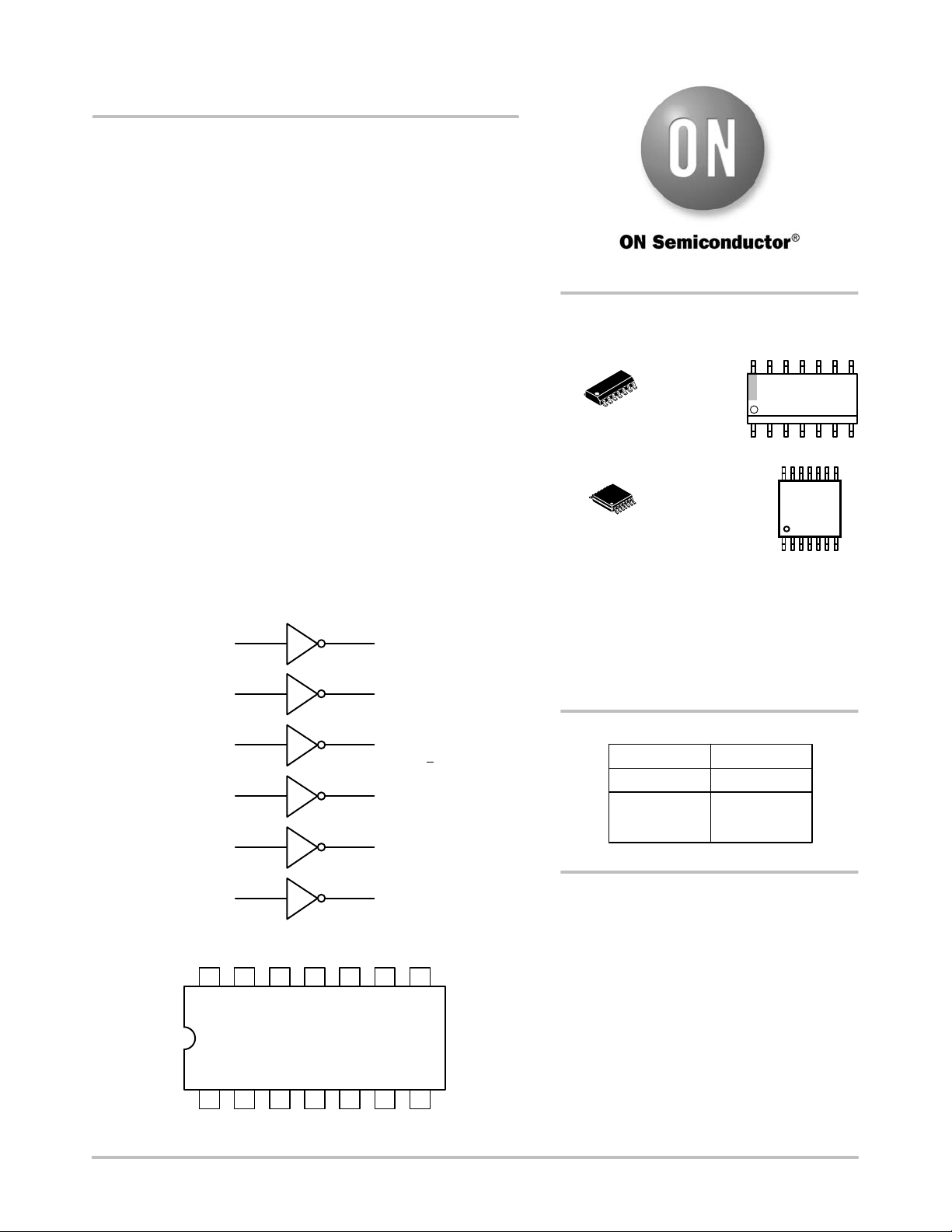

MC74HC04A
Hex Inverter
High−Performance Silicon−Gate CMOS
The MC74HC04A is identical in pinout to the LS04 and the
MC14069. The device inputs are compatible with Standard CMOS
outputs; with pullup resistors, they are compatible with LSTTL
outputs.
The device consists of six three−stage inverters.
Features
• Output Drive Capability: 10 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 2.0 to 6.0 V
• Low Input Current: 1 mA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance With the JEDEC Standard No. 7A Requirements
• Chip Complexity: 36 FETs or 9 Equivalent Gates
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free and are RoHS Compliant
LOGIC DIAGRAM
Y1A1
A2
A3
A4
A5
A6
Y2
Y3
Y4
Y5
Y6
1
3
5
9
11
13
2
4
6
8
10
12
Y = A
Pinout: 14−Lead Packages (Top View)
1314 12 11 10 9 8
21 34567
V
CC
A6 Y6 A5 Y5 A4 Y4
A1 Y1 A2 Y2 A3 Y3 GND
http://onsemi.com
L
H
FUNCTION TABLE
Inputs Outputs
A
H
L
Y
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
ORDERING INFORMATION
MARKING
DIAGRAMS
A = Assembly Location
L, WL = Wafer Lot
Y, YY = Year
W, WW = Work Week
G or G = Pb−Free Package
TSSOP−14
DT SUFFIX
CASE 948G
14
1
SOIC−14
D SUFFIX
CASE 751A
14
1
HC04AG
AWLYWW
1
14
HC
04A
ALYWG
G
1
14
(Note: Microdot may be in either location)
