Semiconductor Components Industries, LLC, 2005
May, 2005 − Rev. 10
1 Publication Order Number:
MC74HC14A/D
MC74HC14A
Hex Schmitt−Trigger
Inverter
High−Performance Silicon−Gate CMOS
The MC74HC14A is identical in pinout to the LS14, LS04 and the
HC04. The device inputs are compatible with Standard CMOS
outputs; with pullup resistors, they are compatible with LSTTL
outputs.
The HC14A is useful to “square up” slow input rise and fall times.
Due to hysteresis voltage of the Schmitt trigger, the HC14A finds
applications in noisy environments.
Features
• Output Drive Capability: 10 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 2.0 to 6.0 V
• Low Input Current: 1.0 A
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance With the JEDEC Standard No. 7.0 A Requirements
• Chip Complexity: 60 FETs or 15 Equivalent Gates
• Pb−Free Packages are Available*
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
http://onsemi.com

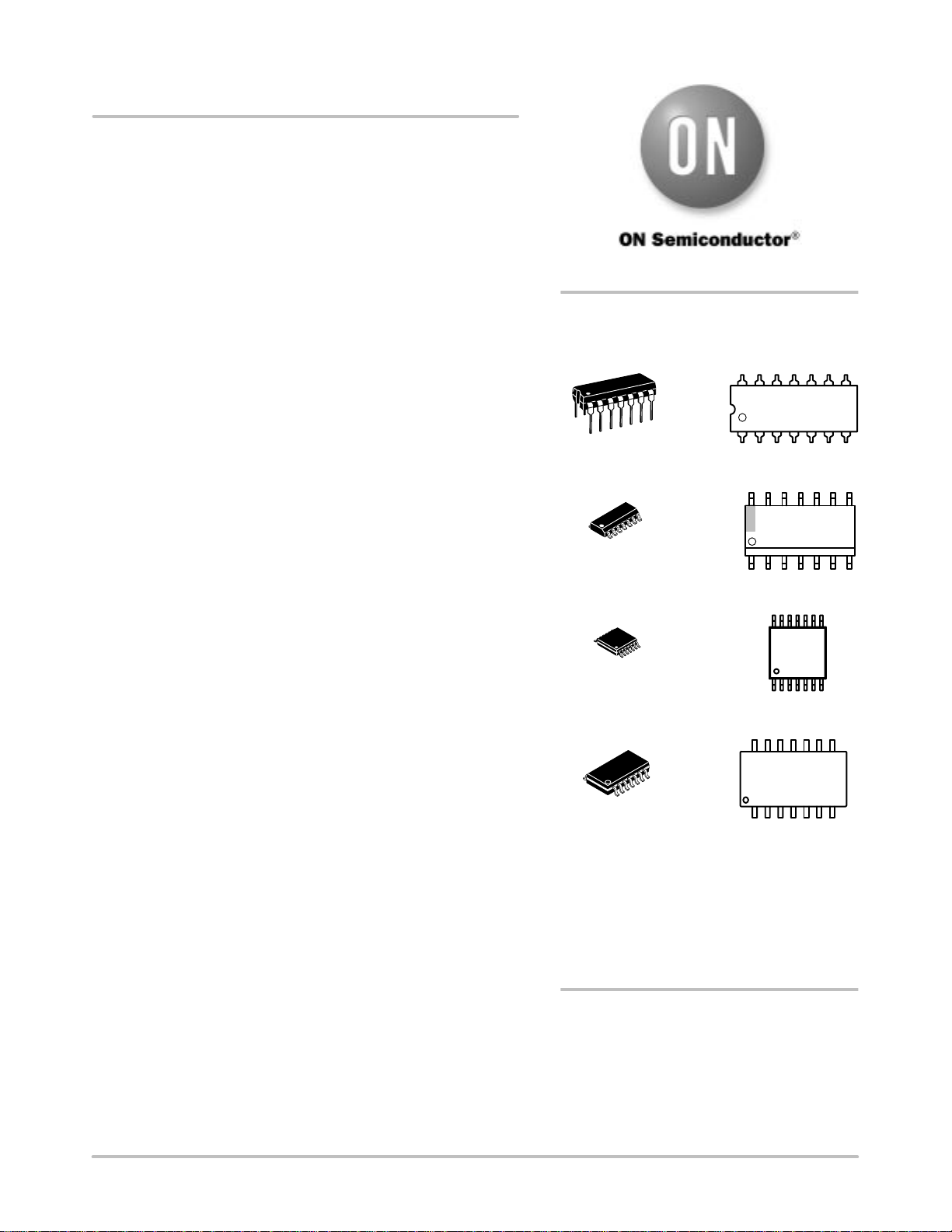

MARKING
DIAGRAMS
A = Assembly Location
L, WL = Wafer Lot
Y, YY = Year
W, WW = Work Week
G = Pb−Free Package
= Pb−Free Package
(Note: Microdot may be in either location)
TSSOP−14
DT SUFFIX
CASE 948G
14
1
SOEIAJ−14
F SUFFIX
CASE 965
SOIC−14
D SUFFIX
CASE 751A
14
1
1
14
74HC14A
ALYWG
HC14AG
AWLYWW
14
1
1
14
HC
14A
ALYW
1
14
1
4
1
PDIP−14
N SUFFIX
CASE 646
MC74HC14AN
AWLYYWWG
1
14
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
ORDERING INFORMATION
