MC74HC14ADT数据手册
Page:
of 13 Go
若手册格式错乱，请下载阅览PDF原文件

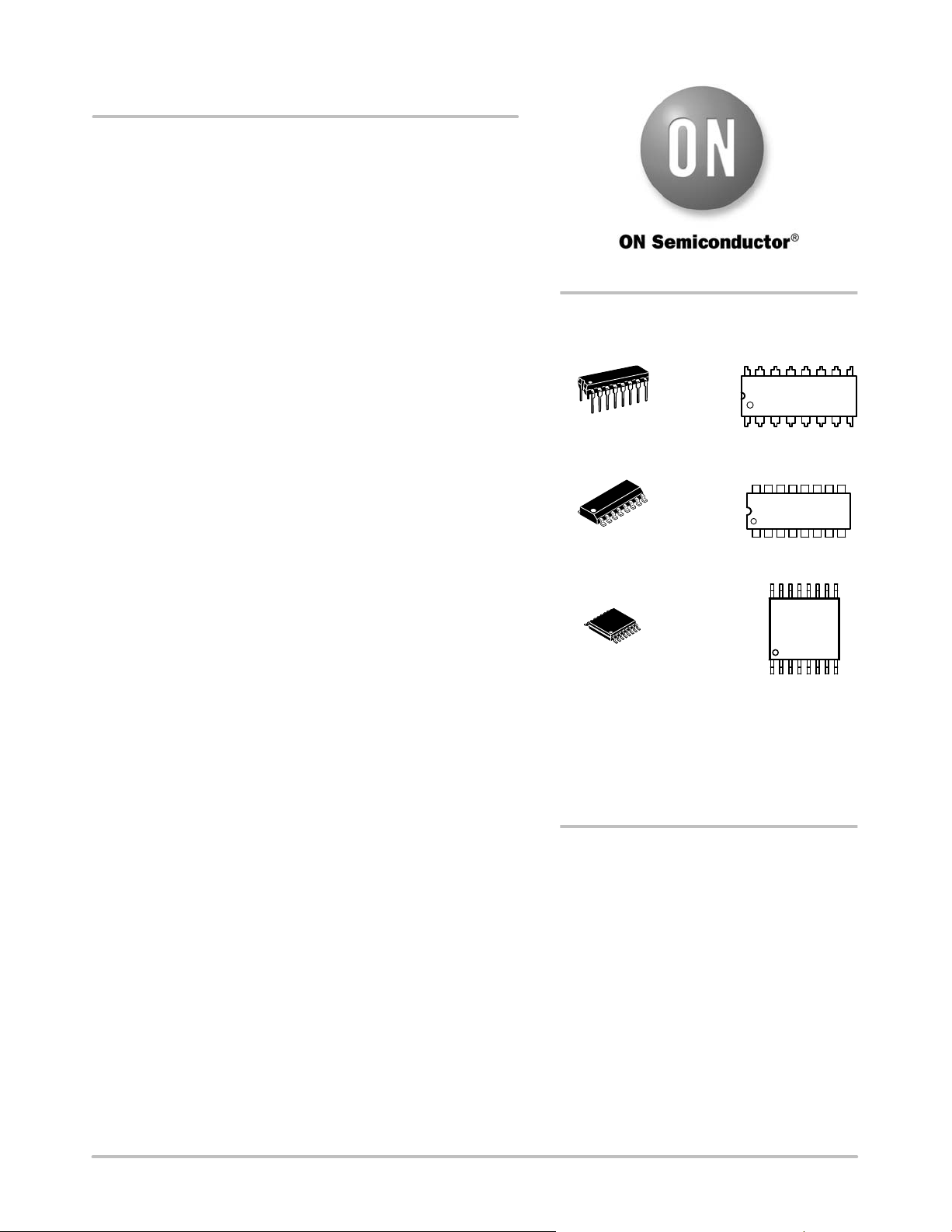

© Semiconductor Components Industries, LLC, 2013
July, 2013 − Rev. 15
1 Publication Order Number:
MC74HC595A/D
MC74HC595A
8-Bit Serial-Input/Serial or
Parallel-Output Shift
Register with Latched
3-State Outputs
High−Performance Silicon−Gate CMOS
The MC74HC595A consists of an 8−bit shift register and an 8−bit
D−type latch with three−state parallel outputs. The shift register
accepts serial data and provides a serial output. The shift register also
provides parallel data to the 8−bit latch. The shift register and latch
have independent clock inputs. This device also has an asynchronous
reset for the shift register.
The HC595A directly interfaces with the SPI serial data port on
CMOS MPUs and MCUs.
Features
• Output Drive Capability: 15 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2.0 to 6.0 V
• Low Input Current: 1.0 mA
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC
Standard No. 7 A
• Chip Complexity: 328 FETs or 82 Equivalent Gates
• Improvements over HC595
− Improved Propagation Delays
− 50% Lower Quiescent Power
− Improved Input Noise and Latchup Immunity
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free and are RoHS Compliant
http://onsemi.com
MARKING
DIAGRAMS
A = Assembly Location
WL, L = Wafer Lot
YY, Y = Year
WW, W = Work Week
G, G = Pb−Free Package
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
ORDERING INFORMATION
SOIC−16
D SUFFIX
CASE 751B
TSSOP−16
DT SUFFIX
CASE 948F
1
16
PDIP−16
N SUFFIX
CASE 648
1
16
1
16
1
16
MC74HC595AN
AWLYYWWG
1
16
HC595AG
AWLYWW
HC
595A
ALYWG
G
1
16
(Note: Microdot may be in either location)
