MC74HC164A
8−Bit Serial−Input/Parallel−
Output Shift Register
HighPerformance SiliconGate CMOS
The MC74HC164A is identical in pinout to the LS164. The device
inputs are compatible with standard CMOS outputs; with pullup
resistors, they are compatible with LSTTL outputs.
The MC74HC164A is an 8bit, serialinput to paralleloutput shift
register. Two serial data inputs, A1 and A2, are provided so that one
input may be used as a data enable. Data is entered on each rising edge
of the clock. The activelow asynchronous Reset overrides the Clock
and Serial Data inputs.
Features
Output Drive Capability: 10 LSTTL Loads
Outputs Directly Interface to CMOS, NMOS, and TTL
Operating Voltage Range: 2.0 V to 6.0 V
Low Input Current: 1 mA
High Noise Immunity Characteristic of CMOS Devices
In Compliance with the JEDEC Standard No. 7A Requirements
Chip Complexity: 244 FETs or 61 Equivalent Gates
PbFree Packages are Available
http://onsemi.com

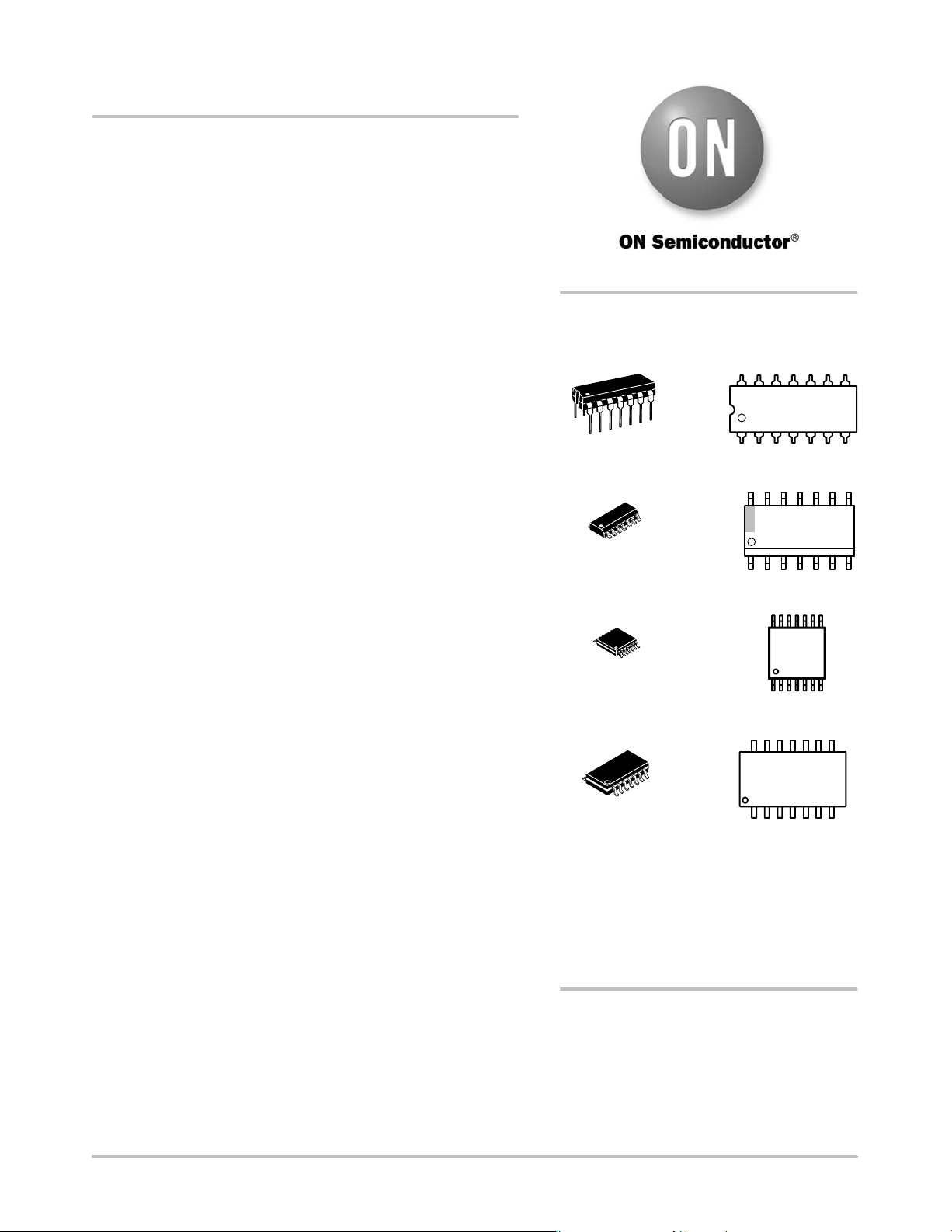

MARKING
DIAGRAMS
A = Assembly Location
L, WL = Wafer Lot
Y, YY = Year
W, WW = Work Week
G or G = PbFree Package
TSSOP14
DT SUFFIX
CASE 948G
14
1
SOEIAJ14
F SUFFIX
CASE 965
SOIC14
D SUFFIX
CASE 751A
14
1
1
14
74HC164A
ALYWG
HC164AG
AWLYWW
14
1
1
14
HC
164A
ALYWG
G
1
14
1
4
1
PDIP14
N SUFFIX
CASE 646
MC74HC164AN
AWLYYWWG
1
14
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
ORDERING INFORMATION
(Note: Microdot may be in either location)
