Semiconductor Components Industries, LLC, 2005
April, 2005 − Rev. 9
1 Publication Order Number:
MC74HC595A/D
MC74HC595A
8−Bit Serial−Input/Serial or
Parallel−Output Shift
Register with Latched
3−State Outputs
High−Performance Silicon−Gate CMOS
The MC74HC595A consists of an 8−bit shift register and an 8−bit
D−type latch with three−state parallel outputs. The shift register
accepts serial data and provides a serial output. The shift register also
provides parallel data to the 8−bit latch. The shift register and latch
have independent clock inputs. This device also has an asynchronous
reset for the shift register.
The HC595A directly interfaces with the SPI serial data port on
CMOS MPUs and MCUs.
Features
• Output Drive Capability: 15 LSTTL Loads
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 2.0 to 6.0 V
• Low Input Current: 1.0 A
• High Noise Immunity Characteristic of CMOS Devices
• In Compliance with the Requirements Defined by JEDEC
Standard No. 7A
• Chip Complexity: 328 FETs or 82 Equivalent Gates
• Improvements over HC595
− Improved Propagation Delays
− 50% Lower Quiescent Power
− Improved Input Noise and Latchup Immunity
• Pb−Free Packages are Available*
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
http://onsemi.com

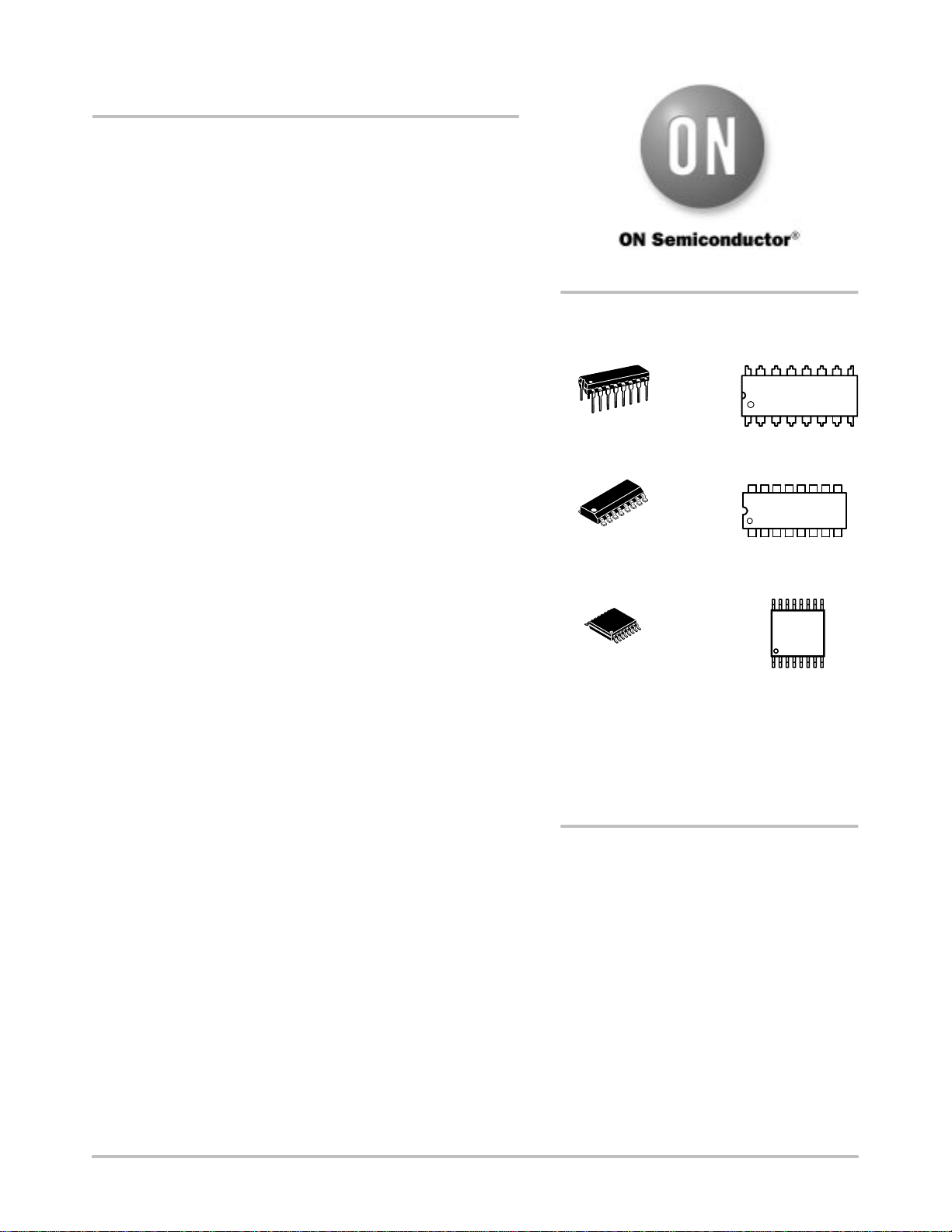

MARKING
DIAGRAMS
A = Assembly Location
L, WL = Wafer Lot
Y, YY = Year
W, WW = Work Week
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
ORDERING INFORMATION
SOIC−16
D SUFFIX
CASE 751B
TSSOP−16
DT SUFFIX
CASE 948F
1
16
PDIP−16
N SUFFIX
CASE 648
1
16
1
16
1
16
MC74HC595AN
AWLYYWW
1
16
HC595A
AWLYWW
HC
595A
ALYW
1
16
