February, 2013 − Rev. 6

1 Publication Order Number:

MC74HC4051A/D

MC74HC4051A,

MC74HC4052A,

MC74HC4053A

Analog Multiplexers /

Demultiplexers

High−Performance Silicon−Gate CMOS

The MC74HC4051A, MC74HC4052A and MC74HC4053A utilize

silicon−gate CMOS technology to achieve fast propagation delays,

low ON resistances, and low OFF leakage currents. These analog

multiplexers/demultiplexers control analog voltages that may vary

across the complete power supply range (from V

to V

The HC4051A, HC4052A and HC4053A are identical in pinout to

the metal−gate MC14051AB, MC14052AB and MC14053AB. The

Channel−Select inputs determine which one of the Analog

Inputs/Outputs is to be connected, by means of an analog switch, to the

Common Output/Input. When the Enable pin is HIGH, all analog

switches are turned off.

The Channel−Select and Enable inputs are compatible with standard

CMOS outputs; with pullup resistors they are compatible with LSTTL

outputs.

These devices have been designed so that the ON resistance (R

) is

more linear over input voltage than R

of metal−gate CMOS analog

switches.

For a multiplexer/demultiplexer with injection current protection,

see HC4851A and HC4852A.

Features

• Fast Switching and Propagation Speeds

• Low Crosstalk Between Switches

• Diode Protection on All Inputs/Outputs

• Analog Power Supply Range (V

− V

) = 2.0 to 12.0 V

• Digital (Control) Power Supply Range (V

− GND) = 2.0 to 6.0 V

• Improved Linearity and Lower ON Resistance Than Metal−Gate

Counterparts

• Low Noise

• In Compliance with the Requirements of JEDEC Standard No. 7A

• Chip Complexity: HC4051A — 184 FETs or 46 Equivalent Gates

HC4052A — 168 FETs or 42 Equivalent Gates

HC4053A — 156 FETs or 39 Equivalent Gates

• NLV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q100

Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free and are RoHS Compliant

http://onsemi.com

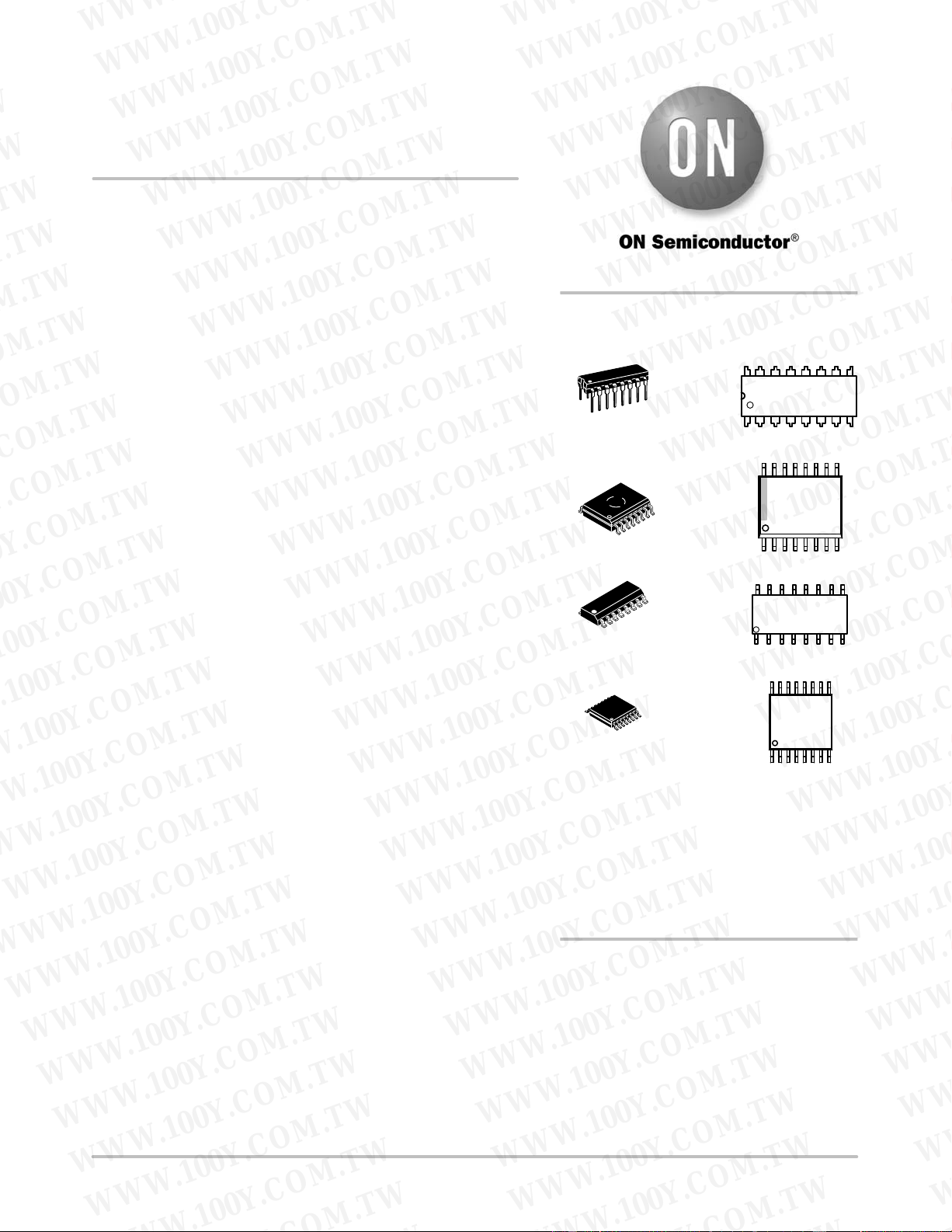

MARKING

DIAGRAMS

SOIC−16

D SUFFIX

CASE 751B

TSSOP−16

DT SUFFIX

CASE 948F

PDIP−16

N SUFFIX

CASE 648

MC74HC405xAN

AWLYYWWG

HC405xAG

AWLYWW

HC40

5xA

ALYWG

SOIC−16 WIDE

DW SUFFIX

CASE 751G

HC405xA

AWLYWWG

See detailed ordering and shipping information in the package

dimensions section on page 13 of this data sheet.

ORDERING INFORMATION

x = Specific Device Code

A = Assembly Location

WL, L = Wafer Lot

YY, Y = Year

WW, W = Work Week

G = Pb−Free Package

(Note: Microdot may be in either location)
