© Semiconductor Components Industries, LLC, 2011
May, 2011 − Rev. 10
1 Publication Order Number:
MC74HCT04A/D
MC74HCT04A
Hex Inverter
With LSTTL−Compatible Inputs
High−Performance Silicon−Gate CMOS
The MC74HCT04A may be used as a level converter for interfacing
TTL or NMOS outputs to High−Speed CMOS inputs. The HCT04A is
identical in pinout to the LS04.
Features
• Output Drive Capability: 10 LSTTL Loads
• TTL/NMOS−Compatible Input Levels
• Outputs Directly Interface to CMOS, NMOS and TTL
• Operating Voltage Range: 4.5 to 5.5 V
• Low Input Current: 1 mA
• In Compliance With the JEDEC Standard No. 7 A Requirements
• Chip Complexity: 48 FETs or 12 Equivalent Gates
• These Devices are Pb−Free, Halogen Free and are RoHS Compliant
http://onsemi.com
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
ORDERING INFORMATION

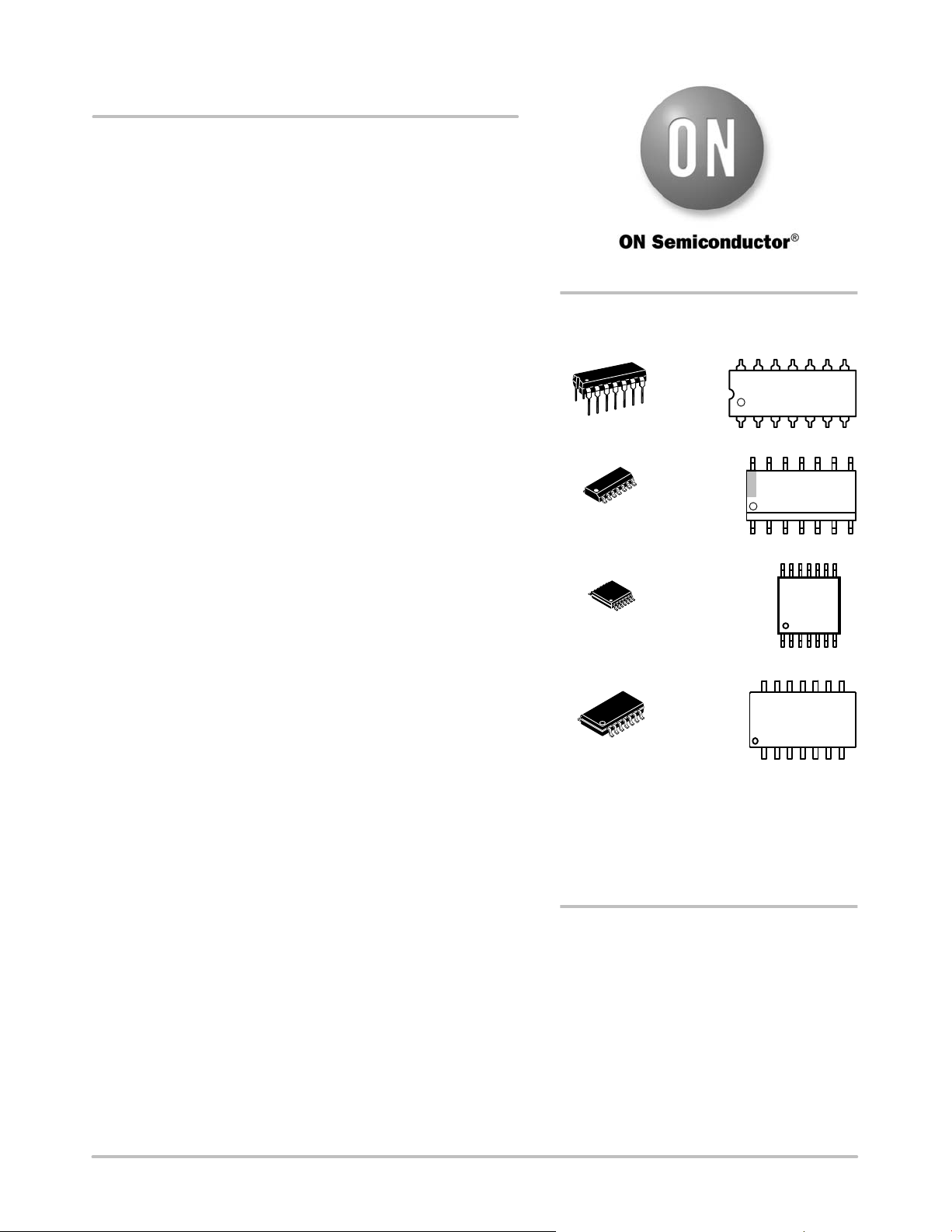

MARKING
DIAGRAMS
A = Assembly Location
L, WL = Wafer Lot
Y, YY = Year
W, WW = Work Week
G or G = Pb−Free Package
TSSOP−14
DT SUFFIX
CASE 948G
14
1
SOEIAJ−14
F SUFFIX
CASE 965
SOIC−14
D SUFFIX
CASE 751A
14
1
1
14
74HCT04A
ALYWG
HCT04AG
AWLYWW
14
1
1
14
HCT
04A
ALYWG
G
1
14
14
1
PDIP−14
N SUFFIX
CASE 646
MC74HCT04AN
AWLYYWWG
1
14
(Note: Microdot may be in either location)
