© Semiconductor Components Industries, LLC, 2011
October, 2020 − Rev. 18
1 Publication Order Number:
MC74VHC1G01/D
Single 2-Input NAND Gate
with Open Drain Output
MC74VHC1G01,
MC74VHC1GT01
The MC74VHC1G01 / MC74VHC1GT01 is a 2−input NAND gate
with an open drain output in tiny footprint packages. The
MC74VHC1G01 has CMOS−level input thresholds while the
MC74VHC1GT01 has TTL−level inputs.
The input structures provide protection when voltages up to 5.5 V
are applied, regardless of the supply voltage. This allows the device to
be used to interface 5 V circuits to 3 V circuits. The output structures
also provide protection when V
CC
= 0 V and when the output voltage
exceeds V
CC
. These input and output structures help prevent device
destruction caused by supply voltage − input/output voltage mismatch,
battery backup, hot insertion, etc.
Features
• Designed for 2.0 V to 5.5 V V
CC
Operation
• 3.5 ns t
PD
at 5 V (typ)
• Inputs/Outputs Over−Voltage Tolerant up to 5.5 V
• I
OFF
Supports Partial Power Down Protection
• Source/Sink 8 mA at 3.0 V
• Available in SC−88A, SC−74A, TSOP−5, SOT−553, SOT−953 and
UDFN6 Packages
• Chip Complexity < 100 FETs
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant

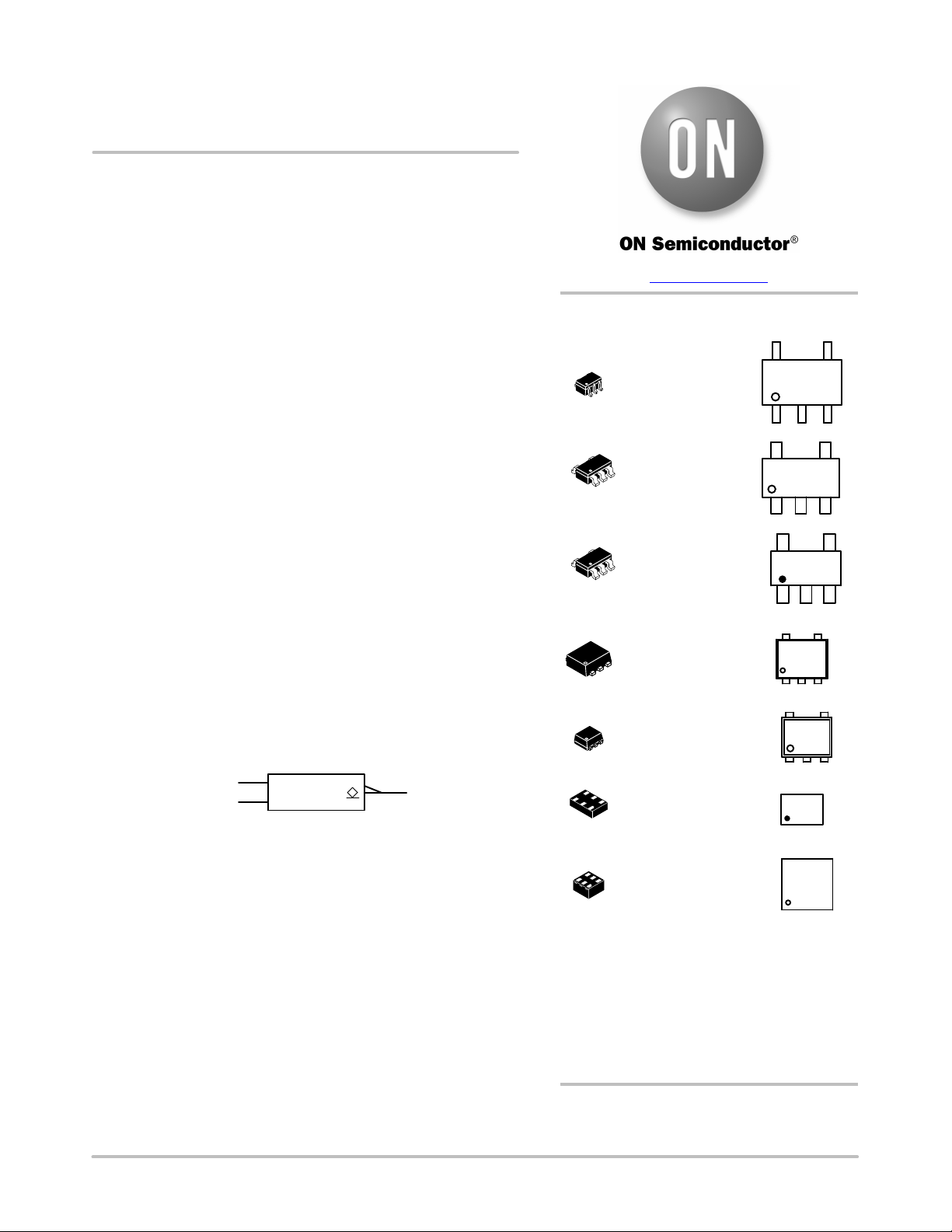

Figure 1. Logic Symbol
A
B
Y
&
See detailed ordering, marking and shipping information in the
package dimensions section on page 7 of this data sheet.
ORDERING INFORMATION
www.onsemi.com
SC−88A
DF SUFFIX
CASE 419A
SOT−553
XV5 SUFFIX
CASE 463B
XX MG
G
XX = Specific Device Code
M = Date Code*
G = Pb−Free Package
XX MG
G
1
5
XX MG
G
TSOP−5
DT SUFFIX
CASE 483
1
5
(Note: Microdot may be in either location)
*Date Code orientation and/or position may
vary depending upon manufacturing location.
UDFN6
1.0 x 1.0
CASE 517BX
X M
1
SOT−953
P5 SUFFIX
CASE 527AE
X M
1
XXX MG
G
SC−74A
DBV SUFFIX
CASE 318BQ
XM
UDFN6
1.45 x 1.0
CASE 517AQ
1
MARKING
DIAGRAMS
