Single 2−Input AND Gate
The MC74VHC1G08 is an advanced high speed CMOS 2−input AND
gate fabricated with silicon gate CMOS technology.
The internal circuit is composed of multiple stages, including a buffer
output which provides high noise immunity and stable output.
The MC74VHC1G08 input structure provides protection when voltages
up to 7.0 V are applied, regardless of the supply voltage. This allows the
MC74VHC1G08 to be used to interface 5.0 V circuits to 3.0 V circuits.
• High Speed: t
PD
= 3.5 ns (Typ) at V
CC
= 5.0 V
• Low Power Dissipation: I
CC
= 1.0 A (Max) at T
A
= 25°C
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Pin and Function Compatible with Other Standard Logic Families
• Chip Complexity: FETs = 62
• Pb−Free Package May be Available. The G−Suffix Denotes a
Pb−Free Lead Finish
V
CC
IN B
IN A
OUT Y
GND
IN A
IN B
OUT Y
&

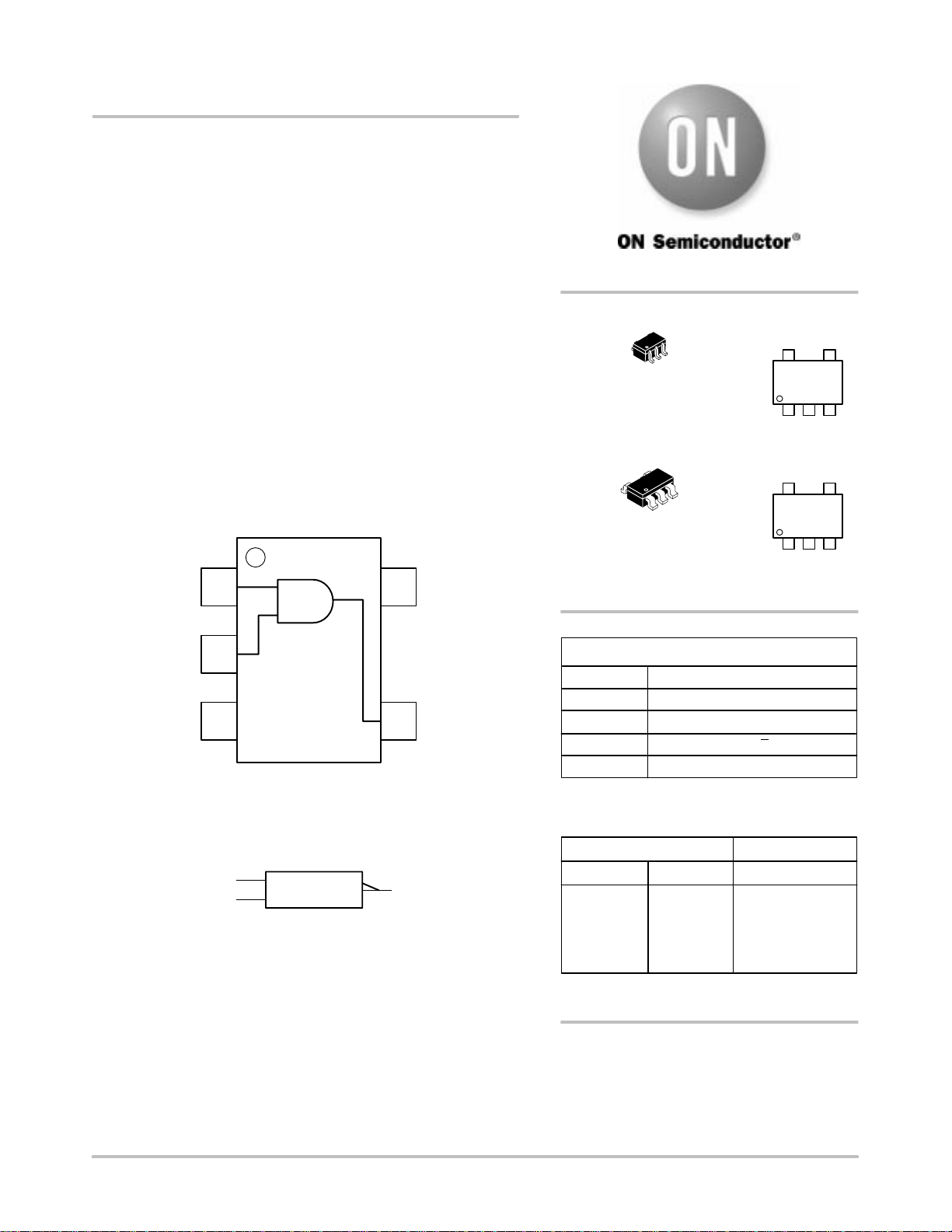

Figure 1. Pinout (Top View)
Figure 2. Logic Symbol
1
2
3
4
5
MARKING
DIAGRAMS
Pin 1
V2
d
SC70−5/SC−88A/SOT−353
DF SUFFIX
CASE 419A
SOT23−5/TSOP−5/SC59−5
DT SUFFIX
CASE 483
Pin 1
V2
d
1
1
5
5
L
L
H
H
L
H
L
H
FUNCTION TABLE
Inputs Output
AB
L
L
L
H
Y
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
ORDERING INFORMATION
d = Date Code
d = Date Code
PIN ASSIGNMENT
1
2
3 GND
IN B
IN A
4
5V
CC
OUT Y
