MCP2210-I/SO数据手册
Page:
of 83 Go
若手册格式错乱，请下载阅览PDF原文件

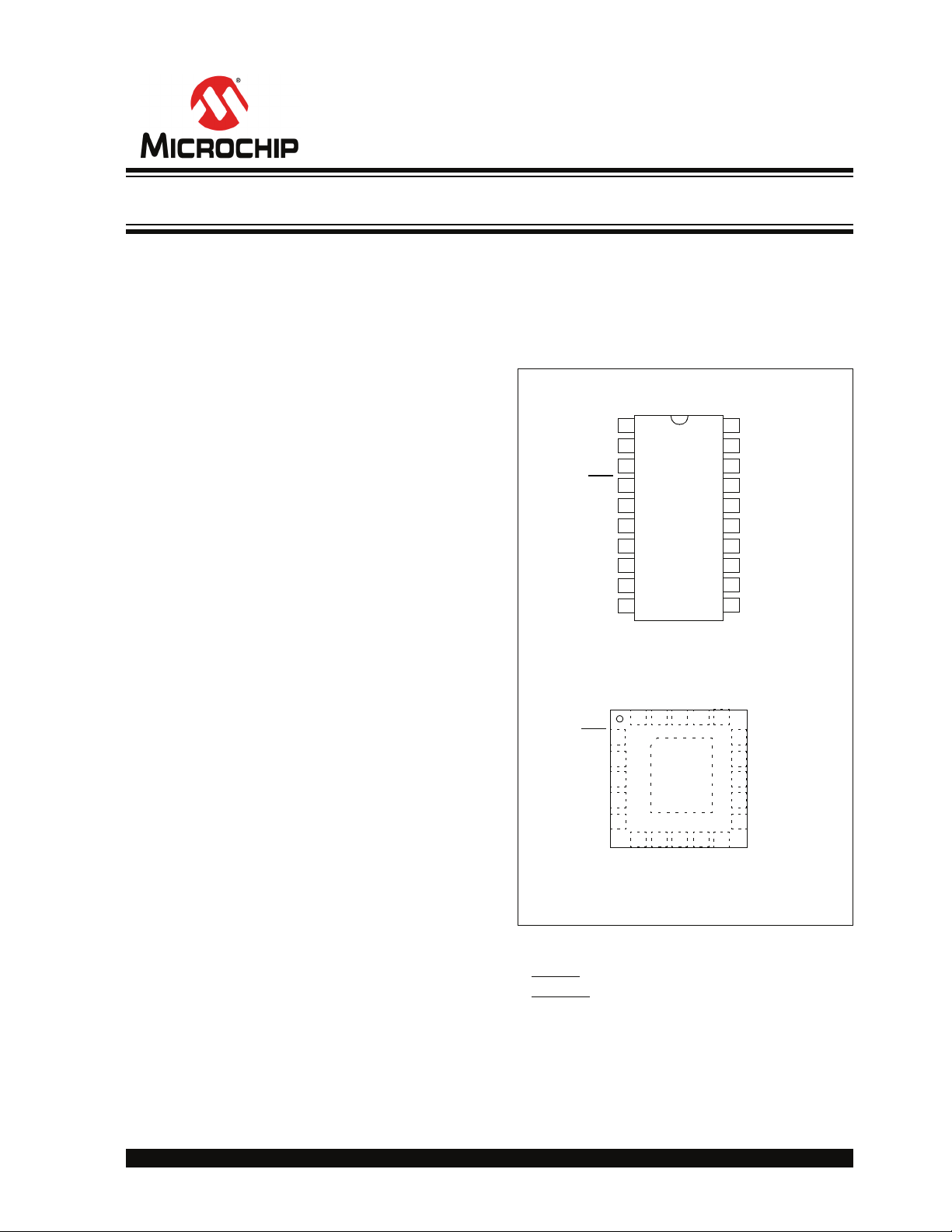

2011 Microchip Technology Inc. DS22288A-page 1
MCP2210
Features:
Universal Serial Bus (USB)
• Supports Full-Speed USB (12 Mb/s)
• Human Interface Device (HID) device
• 128-Byte Buffer to Handle Data Throughput:
- 64-byte transmit
- 64-byte receive
• Fully Configurable VID, PID Assignments and
String Descriptor (factory programming also avail-
able)
• Bus Powered (factory default) or Self-Powered
(can be selected through special USB
commands)
• USB 2.0 Compliant
USB Driver and Software Support
• Uses Standard HID Drivers (built-in support on
Windows
®
XP, Vista, 7, Linux and Mac OS
®
)
• Configuration Utility for Device’s Power-up
Configuration
• Utility for USB-SPI Communication, GPIO
Manipulation and Miscellaneous Features Usage
SPI Master Peripheral
• Supports all Four SPI modes (Mode 0, 1, 2, 3)
• Bit Rates from 1500 bps up to 12 Mbps
• Configurable Delays for SPI Transactions:
- Chip Select (assert) to 1
st
byte of data delay
- Data to data delay
- Data to Chip Select (de-assert) delay
• SPI Transactions Lengths of up to 65535 Bytes
Long
• Up to 9 Chip Select lines – to be used in any
combination for a given SPI transaction (the Chip
Select lines are shared between GPIOs and
alternate function pins; certain GPs – up to 9 of
them – can be assigned with the Chip Select
functionality)
General Purpose Input/Output (GPIO) Pins
• Nine General Purpose I/O Pins
EEPROM
• 256 Bytes of User EEPROM (accessible through
certain USB commands)
Package Types:
The device will be offered in the following packages:
• 20-lead QFN (5 x 5 mm)
• 20-lead SOIC
• 20-lead SSOP
Other
• USB Activity LED Output
• SSPND
Output Pin (to signal USB Suspend state)
• USBCFG
Output Pin (indicates when the
enumeration is completed)
• Operating Voltage: 3.3-5.5V
• Oscillator Input: 12 MHz
• Industrial Operating Temperature: -40°C to +85°C
2
MCP2210
SOIC, SSOP
OSC2
OSC1
RST
1
2
3
4
20
1
9
1
8
1
7
V
DD
V
SS
D+
D-
V
USB
GP0
5
1
6
GP8
GP1
6
15
GP2
7
14
GP6
GP7
MCP2210
5x5 QFN*
GP1
GP2
RST
D-
V
USB
MOSI
GP8
GP4
SCK
GP5
GP7
OSC2
OSC1
V
DD
V
SS
GP0
EP
20
1
1
9
1
8
1
7
3
4
1
5
1
4
1
3
12
6789
21
1
3
1
2
1
1
MISO
GP5
SCK
GP3
8
MOSI
9
GP4
10
D+
1
6
GP3
GP6
5
11
MISO
10
* Includes Exposed Thermal Pad (EP); see Tab le 1-1.
USB-to-SPI Protocol Converter with GPIO (Master Mode)
