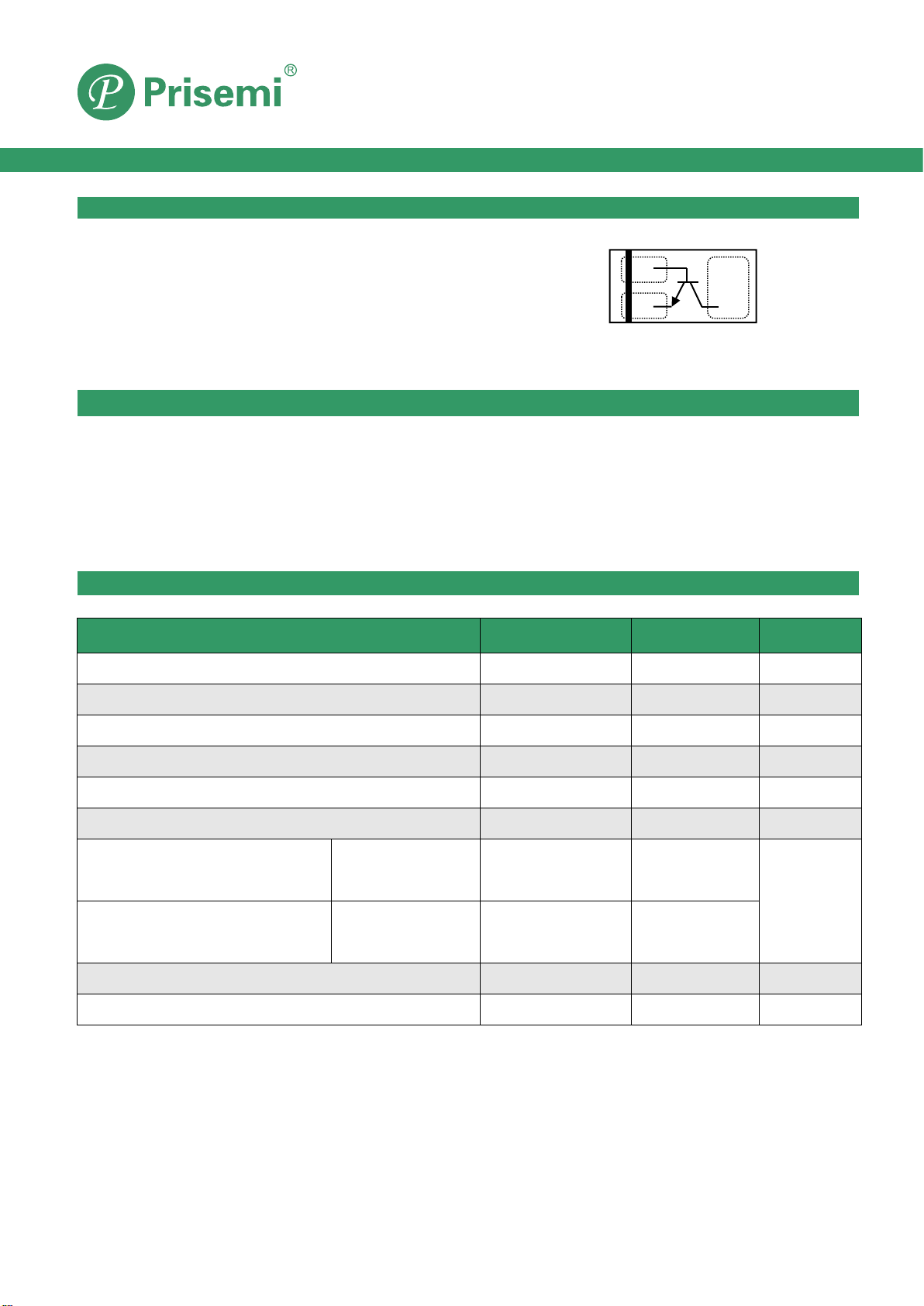

PNT3FD403E0-5
Rev.06.1 1 www.prisemi.com
NPN general purpose transistor
This device is Pb-Free, Halogen Free/BFR Free and RoHS compliant.
Package: DFN1006-3L
Emitter -Base Breakdown Voltage 6V
500mA continuous collector current
NPN switch transistor
Lead finish:100% matte Sn(Tin)
Mounting position: Any
Qualified max reflow temperature:260℃
Device meets MSL 1 requirements
Pure tin plating: 7 ~ 17 um
Parameter
Symbol
Value
Units
Collector-Emitter Breakdown Voltage
V
(BR)CEO
40
V
Collector-Base Breakdown Voltage
V
(BR)CBO
40
V
Emitter -Base Breakdown Voltage
V
(BR)EBO
6
V
Collector Current
I
C
500
mA
Peak Collector Current
I
CM
1
A
Peak Base Current
I
BM
100
mA
Maximum Power Dissipation
(Note 1)(Note 2)
TA=25°C
P
D
250
mW
Maximum Power Dissipation
(Note 3)(Note 2)
TA=25°C
P
D
590
Storage Temperature
T
stg
-65~150
°C
Max. Operating Junction Temperature
T
j
150
°C
Feature
Electrical characteristics per line@25℃( unless otherwise specified)
Mechanical Characteristics
Top View
B
C
E
