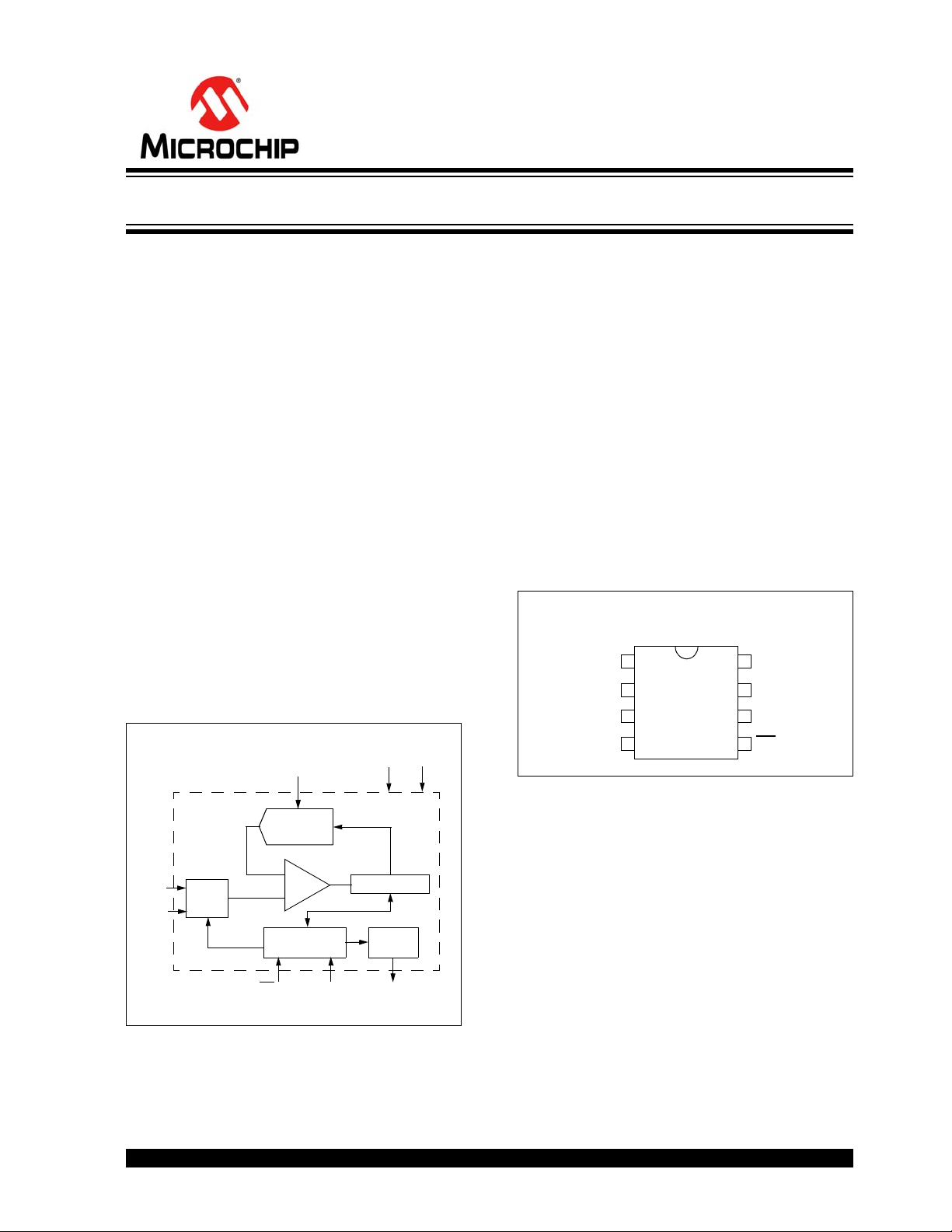

1998-2011 Microchip Technology Inc. DS21290F-page 1
MCP3201
Features
•12-Bit Resolution
• ±1 LSB max DNL
• ±1 LSB max INL (MCP3201-B)
• ±2 LSB max INL (MCP3201-C)
• On-chip Sample and Hold
• SPI Serial Interface (modes 0,0 and 1,1)
• Single Supply Operation: 2.7V - 5.5V
• 100 ksps Maximum Sampling Rate at V
DD
= 5V
• 50 ksps Maximum Sampling Rate at V
DD
= 2.7V
• Low-Power CMOS Technology
• 500 nA Typical Standby Current, 2 µA Maximum
• 400 µA Maximum Active Current at 5V
• Industrial Temp Range: -40°C to +85°C
• 8-pin MSOP, PDIP, SOIC and TSSOP Packages
Applications
• Sensor Interface
• Process Control
• Data Acquisition
• Battery Operated Systems
Functional Block Diagram
Description
The Microchip Technology Inc. MCP3201 device is a
successive approximation 12-bit Analog-to-Digital
(A/D) Converter with on-board sample and hold
circuitry. The device provides a single pseudo-differen-
tial input. Differential Nonlinearity (DNL) is specified at
±1 LSB, and Integral Nonlinearity (INL) is offered in
±1 LSB (MCP3201-B) and ±2 LSB (MCP3201-C)
versions. Communication with the device is done using
a simple serial interface compatible with the SPI
protocol. The device is capable of sample rates of up to
100 ksps at a clock rate of 1.6 MHz. The MCP3201
device operates over a broad voltage range (2.7V-
5.5V). Low-current design permits operation with
typical standby and active currents of only 500 nA and
300 µA, respectively. The device is offered in 8-pin
MSOP, PDIP, TSSOP and 150 mil SOIC packages.
Package Types
Comparator
Sample
and
Hold
12-Bit SAR
DAC
Control Logic
CS/SHDN
V
REF
IN+
IN-
V
SS
V
DD
CLK
D
OUT
Shift
Register
V
REF
IN+
IN–
V
SS
V
DD
CLK
D
OUT
CS/SHDN
1
2
3
4
8
7
6
5
MSOP, PDIP, SOIC, TSSOP
MCP3201
2.7V 12-Bit A/D Converter with SPI Serial Interface
