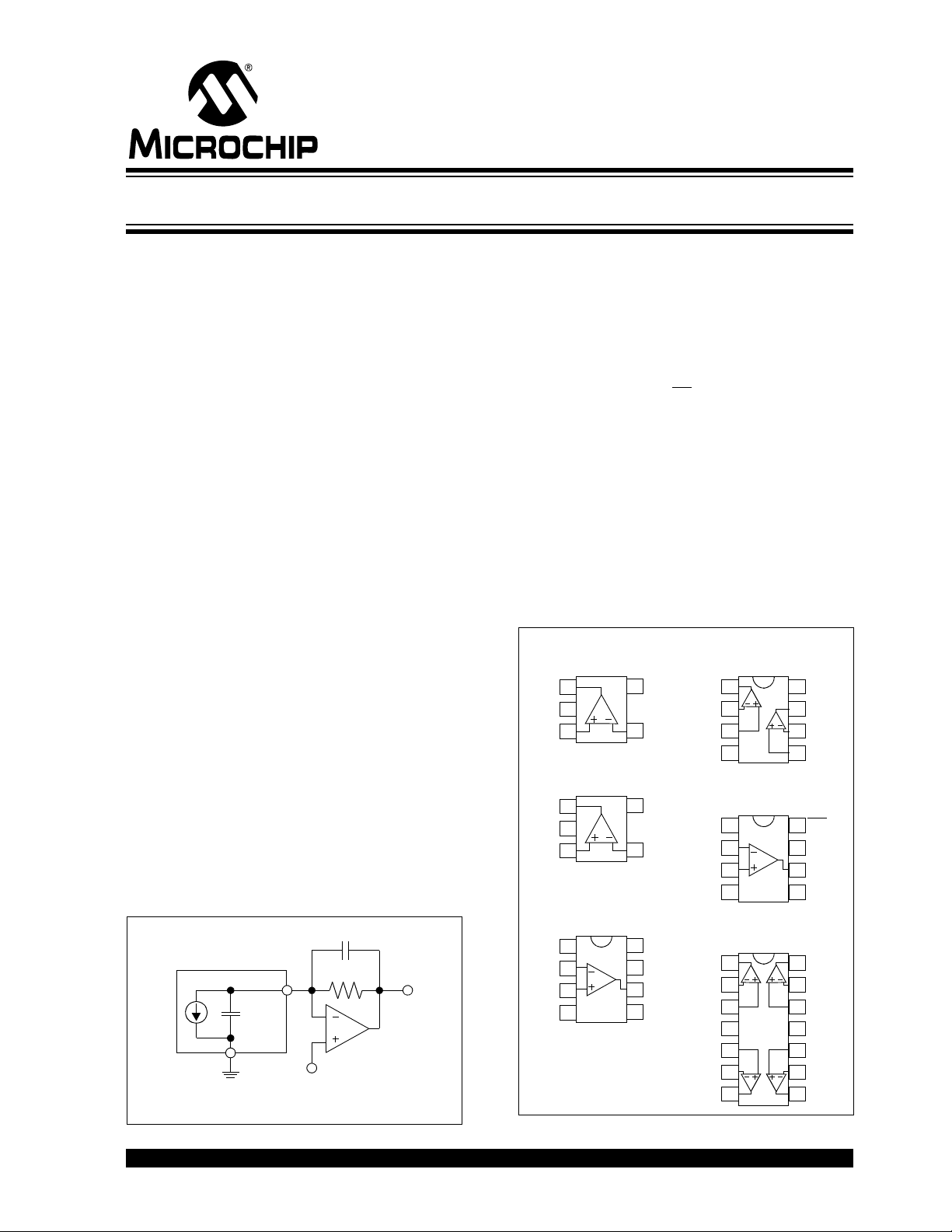

© 2006 Microchip Technology Inc. DS21685C-page 1
MCP6021/1R/2/3/4
Features
• Rail-to-Rail Input/Output
• Wide Bandwidth: 10 MHz (typ.)
• Low Noise: 8.7 nV/√Hz, at 10 kHz (typ.)
• Low Offset Voltage:
- Industrial Temperature: ±500 µV (max.)
- Extended Temperature: ±250 µV (max.)
• Mid-Supply V
REF
: MCP6021 and MCP6023
• Low Supply Current: 1 mA (typ.)
• Total Harmonic Distortion: 0.00053% (typ., G = 1)
• Unity Gain Stable
• Power Supply Range: 2.5V to 5.5V
• Temperature Range:
- Industrial: -40°C to +85°C
- Extended: -40°C to +125°C
Typical Applications
• Automotive
• Driving A/D Converters
• Multi-Pole Active Filters
• Barcode Scanners
• Audio Processing
• Communications
• DAC Buffer
• Test Equipment
• Medical Instrumentation
Available Tools
• SPICE Macro Model (at www.microchip.com)
•FilterLab
®
software (at www.microchip.com)
Typical Application
Description
The MCP6021, MCP6021R, MCP6022, MCP6023 and
MCP6024 from Microchip Technology Inc. are rail-to-
rail input and output op amps with high performance.
Key specifications include: wide bandwidth (10 MHz),
low noise (8.7 nV/√Hz), low input offset voltage and low
distortion (0.00053% THD+N). The MCP6023 also
offers a Chip Select pin (CS
) that gives power savings
when the part is not in use.
The single MCP6021 and MCP6021R are available in
SOT-23-5. The single MCP6021, single MCP6023 and
dual MCP6022 are available in 8-lead PDIP, SOIC and
TSSOP. The Extended Temperature single MCP6021
is available in 8-lead MSOP. The quad MCP6024 is
offered in 14-lead PDIP, SOIC and TSSOP packages.
The MCP6021/1R/2/3/4 family is available in Industrial
and Extended temperature ranges. It has a power
supply range of 2.5V to 5.5V.
Package Types
Detector
100 pF
5.6 pF
100 kΩ
V
DD
/2
MCP6021
Transimpedance Amplifier
MCP6021
SOT-23-5
1
2
3
5
4
V
DD
V
IN
–
V
OUT
V
SS
V
IN
+
MCP6022
PDIP SOIC, TSSOP
1
2
3
4
8
7
6
5
CS
V
DD
V
OUT
V
REF
NC
V
IN
–
V
IN
+
V
SS
MCP6023
PDIP SOIC, TSSOP
1
2
3
4
8
7
6
5
V
DD
V
OUTB
V
INB
–
V
INB
+
V
OUTA
V
INA
–
V
INA
+
V
SS
MCP6024
PDIP SOIC, TSSOP
1
2
3
4
V
OUTD
V
IND
–
V
IND
+
V
SS
V
OUTA
V
INA
–
V
INA
+
V
DD
V
INC
+
V
INC
–
V
OUTC
5
6
7
V
INB
+
V
INB
–
V
OUTB
14
13
12
11
10
9
8
MCP6021
PDIP SOIC,
MSOP, TSSOP
1
2
3
4
8
7
6
5
NC
V
DD
V
OUT
V
REF
NC
V
IN
–
V
IN
+
V
SS
MCP6021R
SOT-23-5
1
2
3
5
4
V
SS
V
IN
–
V
OUT
V
DD
V
IN
+
Rail-to-Rail Input/Output, 10 MHz Op Amps
