© 2008 Microchip Technology Inc. DS11177E-page 5
MCP606/7/8/9
2.0 TYPICAL PERFORMANCE CURVES
Note: Unless otherwise indicated, V
DD
= +2.5V to +5.5V, V
SS
= GND, T
A
=+25°C, V
CM
=V
DD
/2, V
OUT
≈ V
DD
/2,
V
L
= V
DD
/2, R
L
= 100 kΩ to V
L
, C
L
= 60 pF, and CS is tied low.

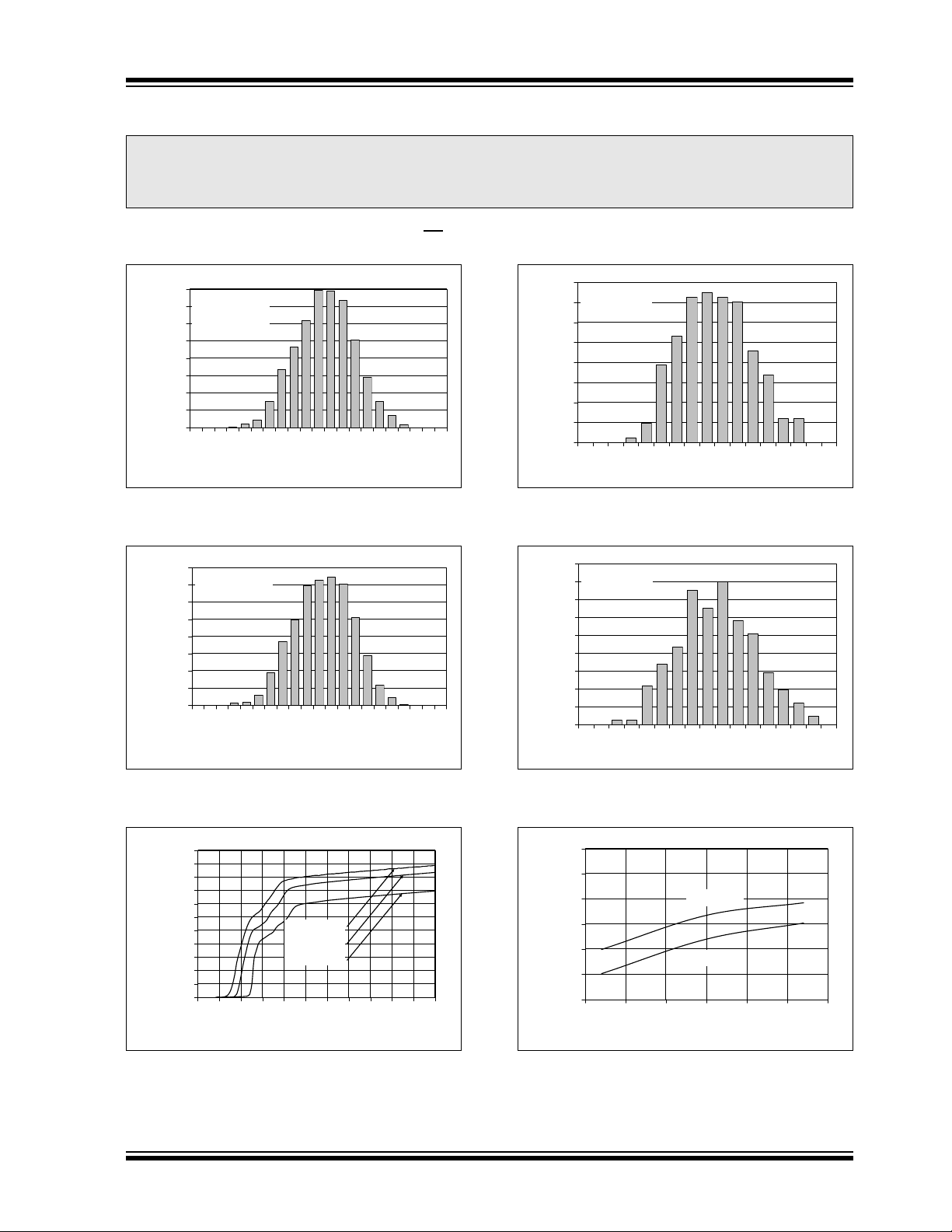

FIGURE 2-1: Input Offset Voltage at
V
DD
=5.5V.
FIGURE 2-2: Input Offset Voltage at
V
DD
=2.5V.
FIGURE 2-3: Quiescent Current vs.
Power Supply Voltage.
FIGURE 2-4: Input Offset Voltage Drift
Magnitude at V
DD
=5.5V.
FIGURE 2-5: Input Offset Voltage Drift
Magnitude at V
DD
=2.5V.
FIGURE 2-6: Quiescent Current vs.
Ambient Temperature.
Note: The graphs and tables provided following this note are a statistical summary based on a limited number of
samples and are provided for informational purposes only. The performance characteristics listed herein
are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified
operating range (e.g., outside specified power supply range) and therefore outside the warranted range.
0%
2%
4%
6%
8%
10%
12%
14%
16%
-250
-200
-150
-100
-50
0
50
100
150
200
250
Input Offset Voltage (µV)
Percentage of Occurances ( )
1200 Samples
V
DD
= 5.5V
0%
2%
4%
6%
8%
10%
12%
14%
16%
-250
-200
-150
-100
-50
0
50
100
150
200
250
Input Offset Voltage (µV)
Percentage of Occurances ( )
1200 Samples
V
DD
= 2.5V
0
2
4
6
8
10
12
14
16
18
20
22
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5
Power Supply Voltage (V)
Quiescent Current
per Amplifier (µA)
T
A
= +85°C
T
A
= +25°C
T
A
= -40°C
0%
2%
4%
6%
8%
10%
12%
14%
16%
-8-6-4-202468
Input Offset Voltage Drift (µV/°C)
Percentage of Occurances
206 Samples
V
DD
= 5.5V
0%
2%
4%
6%
8%
10%
12%
14%
16%
18%
-8 -6 -4 -2 0 2 4 6 8
Input Offset Voltage Drift (µV/°C)
Percentage of Occurances
206 Samples
V
DD
= 2.5V
12
14
16
18
20
22
24
-50 -25 0 25 50 75 100
Ambient Temperature (°C)
Quiescent Current
per Amplifier (µA)
V
DD
= 5.5V
V
DD
= 2.5V
