2019-2020 Microchip Technology Inc. DS20001696K-page 1
MCP6541/1R/1U/2/3/4
Features
• Low Quiescent Current: 600 nA/Comparator (typ.)
• Rail-to-Rail Input: V
SS
- 0.3V to V
DD
+ 0.3V
• CMOS/TTL-Compatible Output
• Propagation Delay: 4 µs
(typical, 100 mV Overdrive)
• Wide Supply Voltage Range: 1.6V to 5.5V
• Available in Single, Dual and Quad
• Single Available in SOT-23-5, SC-70-5 * Packages
• Chip Select (CS
) with MCP6543
• Low Switching Current
• Internal Hysteresis: 3.3 mV (typ.)
• Temperature Ranges:
- Industrial: -40°C to +85°C
- Extended: -40°C to +125°C
Typical Applications
• Laptop Computers
• Mobile Phones
• Metering Systems
• Hand-held Electronics
• RC Timers
• Alarm and Monitoring Circuits
• Windowed Comparators
• Multivibrators
Related Devices
• Open-Drain Output: MCP6546/7/8/9
Description
The Microchip Technology Inc. MCP6541/1R/1U/2/3/4
family of comparators is offered in single (MCP6541,
MCP6541R, MCP6541U), single with Chip Select (CS)
(MCP6543), dual (MCP6542) and quad (MCP6544)
configurations. The outputs are push-pull (CMOS/TTL-
compatible) and are capable of driving heavy DC or
capacitive loads.
These comparators are optimized for low-power,
single-supply operation with greater than rail-to-rail
input operation. The push-pull output of the
MCP6541/1R/1U/2/3/4 family supports rail-to-rail out-
put swing and interfaces with TTL/CMOS logic. The
internal input hysteresis eliminates output switching
due to internal input noise voltage, reducing current
draw. The output limits supply current surges and
dynamic power consumption while switching. This
product family operates with a single-supply voltage as
low as 1.6V and draws less than 1 µA/comparator of
quiescent current.
The related MCP6546/7/8/9 family of comparators from
Microchip has an open-drain output. Used with a pull-
up resistor, these devices can be used as level-shifters
for any desired voltage up to 10V and in wired-OR
logic.
* SC-70-5 E-Temp parts not available at this release of
the data sheet.
MCP6541U SOT-23-5 is E-Temp only.

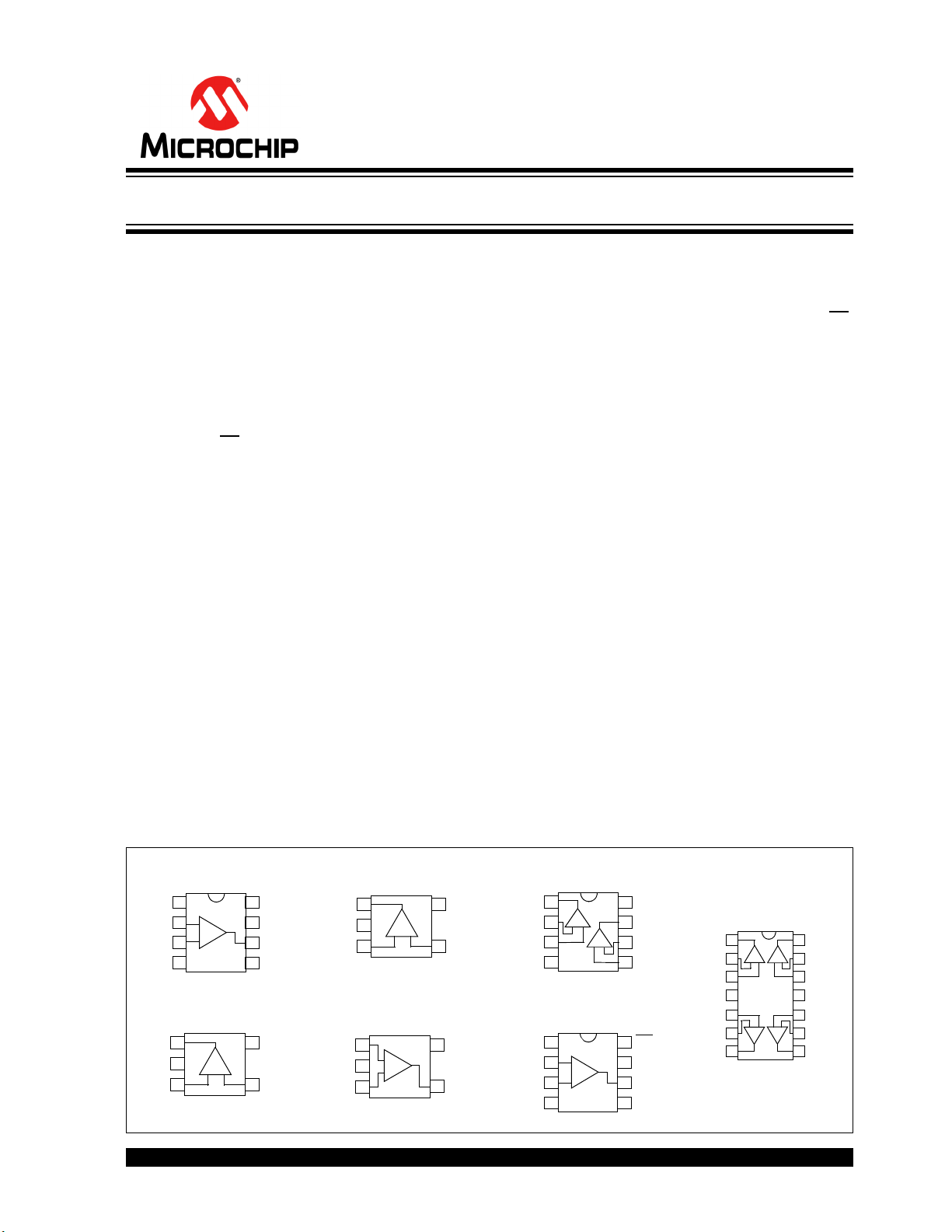

Package Types
V
INA
+
V
IN
–
MCP6541
V
SS
V
DD
OUT
1
2
3
4
8
7
6
5
-
+
NC
NC
NC
PDIP, SOIC, MSOP
4
1
2
3
-
+
5
SOT-23-5
V
DD
OUT
V
IN
+
V
SS
V
IN
–
MCP6542
V
INA
+
V
INA
–
V
SS
1
2
3
4
8
7
6
5
-
OUTA
+
-
+
V
DD
OUTB
V
INB
–
V
INB
+
V
IN
+
V
IN
–
MCP6543
V
SS
V
DD
OUT
1
2
3
4
8
7
6
5
-
+
NC
CS
NC
PDIP, SOIC, MSOP
PDIP, SOIC, MSOP
MCP6544
V
INA
+
V
INA
–
V
SS
1
2
3
4
14
13
12
11
-
OUTA
+
-
+
V
DD
OUTD
V
IND
–
V
IND
+
10
9
8
5
6
7
OUTB
V
INB
–
V
INB
+
V
INC
+
V
INC
-
OUTC
+
-
-
+
PDIP, SOIC, TSSOP
-
+
MCP6541R
4
1
2
3
5
SC-70-5, SOT-23-5
V
SS
V
IN
+
V
IN
–
V
DD
OUT
MCP6541U
+
4
1
2
3
-
+
5
V
SS
OUT
V
IN
+
V
DD
V
IN
–
MCP6541
SC-70-5, SOT-23-5
–
Push-Pull Output Sub-Microamp Comparators
