MLF2012E100K 其他数据使用手册 - TDK（东电化）
制造商:
TDK（东电化）
分类:
贴片电感
封装:
0805
描述:
TDK MLF2012E100K. 电感, 多层, 10uH, 15mA, 0805
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
应用领域在P1
电气规格在P1
导航目录
MLF2012E100K数据手册
Page:
of 3 Go
若手册格式错乱，请下载阅览PDF原文件

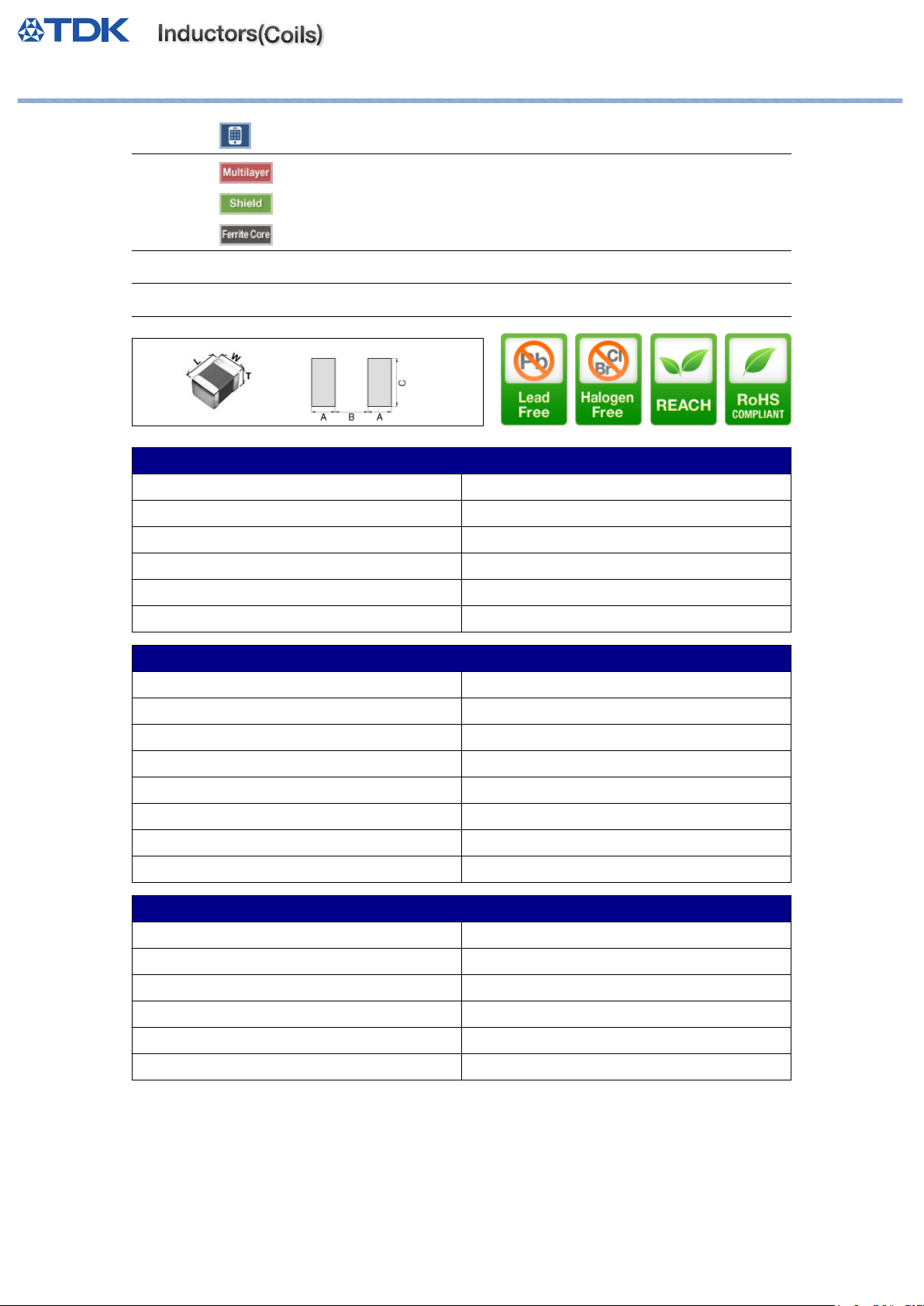

•This PDF document was created based on the data listed on the TDK Corporation website.
•All specifications are subject to change without notice.
Copyright(c) TDK Corporation. All rights reserved
1 of 3
Creation Date :March 02 2016
MLF2012E100KT000
Applications Commercial Grade
Feature
Multilayer
Magnetic Shield
Ferrite Core
Series MLF Series / MLF2012 Type
Status Production
Size
Length(L) 2.00mm +/-0.20mm
Width(W) 1.25mm +/-0.20mm
Thickness(T) 1.25mm +/-0.20mm
Recommended Land Pattern (A) 0.80mm Nom.
Recommended Land Pattern (B) 1.00mm Nom.
Recommended Land Pattern (C) 1.20mm Nom.
Electrical Characteristics
Inductance 10uH +/-10% at 2MHz
Rated Current 15mA
Self-Resonant Frequency [Min.] 30MHz
Self-Resonant Frequency [Typ.] 50MHz
Q [Min.] 50 at 2MHz
Q [Typ.] 75 at 2MHz
DC Resistance [Nom.] 400mΩ
DC Resistance [Max.] 800mΩ
Other
Operating Temp. Range (Including Self-Temp. Rise) -55 to 125degC
Soldering Method Reflow, Iron Soldering
AEC Q200 No
Packing Blister (Plastic)Taping [180mm Reel]
Package Quantity 2000Pcs Min.
Weight 0.014g
