Document Number: MM908E624
Rev. 11.0, 4/2012
Freescale Semiconductor
Technical Data
© Freescale Semiconductor, Inc., 2012. All rights reserved.
*This document contains certain information on a product under development.
Freescale reserves the right to change or discontinue this product without notice.
Integrated Triple High Side
Switch with Embedded MCU
and LIN Serial Communication
for Relay Drivers
The 908E624 is an integrated single-package solution that
includes a high performance HC08 microcontroller with a
SMARTMOS analog control IC. The HC08 includes flash memory, a
timer, enhanced serial communications interface (ESCI), an analog-
to-digital converter (ADC), internal serial peripheral interface (SPI),
and an internal clock generator module. The analog control die
provides three high side outputs with diagnostic functions, voltage
regulator, watchdog, current sense operational amplifier, and local
interconnect network (LIN) physical layer.
The single package solution, together with LIN, provides optimal
application performance adjustments and space saving PCB design.
It is well-suited for the control of automotive high current motors
applications using relays (e.g., window lifts, fans, and sun roofs).
Features
• High performance M68HC908EY16 core
•16 KB of on-chip flash memory, 512 B of RAM
• Internal clock generator module
• Two 16-bit, two-channel timers
• 10-bit ADC
• LIN physical layer interface
• Low dropout voltage regulator
• Three high side outputs
• Two wake-up inputs
• 16 microcontroller I / Os
908E624

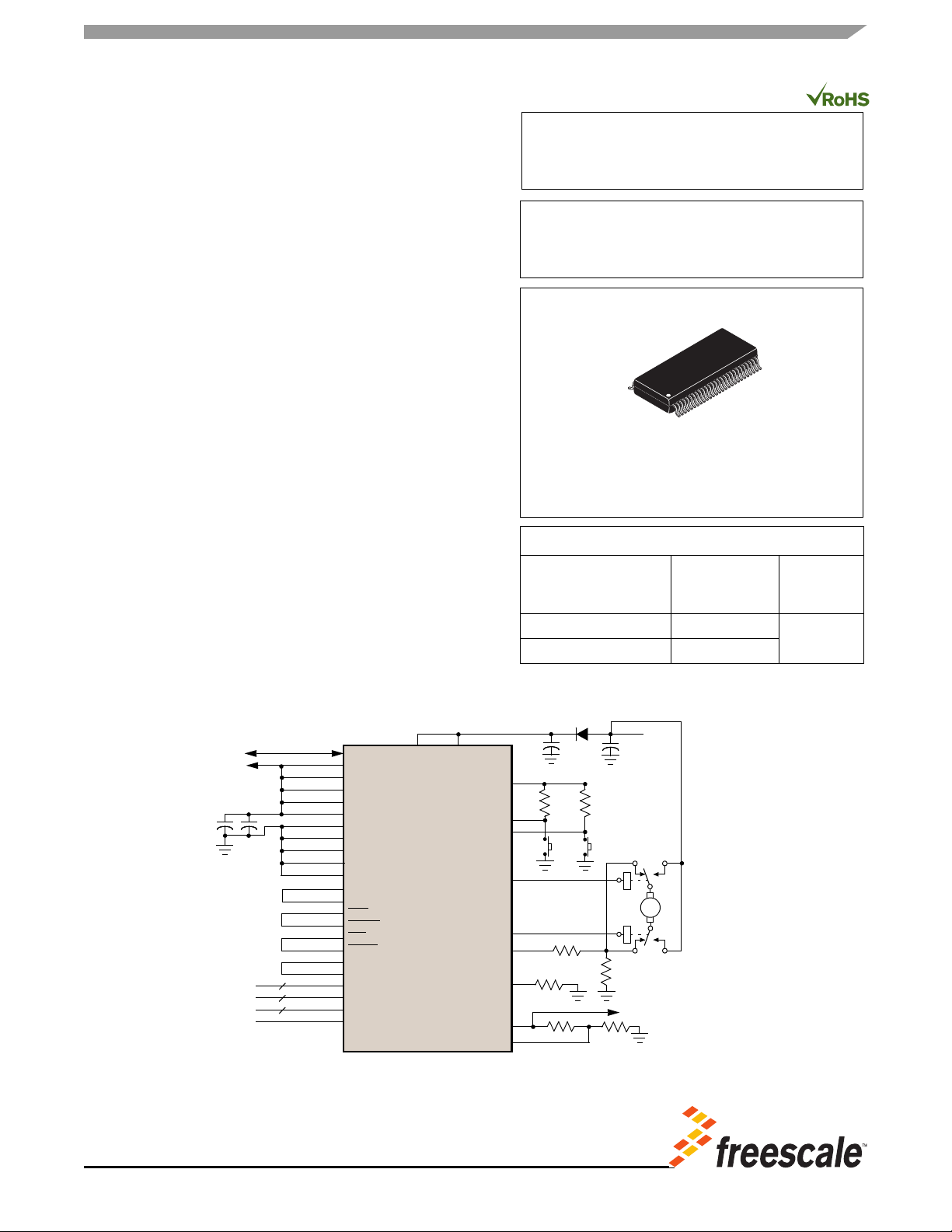

Figure 1. 908E624 Simplified Application Diagram
HIGH SIDE SWITCH
908E624
ORDERING INFORMATION
Device
(Add an R2 suffix for Tape
and reel orders)
Temperature
Range (T
A
)
Package
MM908E624ACPEW
- 40°C to 85°C
54 SOICW
MM908E624AYPEW
- 40°C to 125°C
EW (Pb-FREE) SUFFIX
98ASA99294D
54-pin SOICW
LIN
VREFH
VDDA
EVDD
VCC
VDD
VREFL
VSSA
EVSS
RXD
PTE1/RXD
RST
RST_A
IRQ
IRQ_A
PTD0/TACH0
PW/MIN
PTA0-4
PTB1;3-7
PTC2-4
PTD1/TACH1
HS3
L1
L2
HS1
OUT
-E
WDCONF
GND
AGND
VSP1
To Microcontroller A/D Channel
Microcontroller
5.0 V
LIN Interface
HS2
+E
VSP
Ports
V
BAT
M
