MOC306XM, MOC316XM — 6-Pin DIP Zero-Cross Phototriac Driver Optocoupler (600 Volt Peak)
©2005 Fairchild Semiconductor Corporation www.fairchildsemi.com
MOC306XM, MOC316XM Rev. 1.0.4
September 2010
MOC3061M, MOC3062M, MOC3063M,
MOC3162M, MOC3163M
6-Pin DIP Zero-Cross Phototriac Driver Optocoupler
(600 Volt Peak)
Features
■
Simplifies logic control of 115/240 VAC power
■
Zero voltage crossing
■
dv/dt of 1000V/µs guaranteed (MOC316X-M),
– 600V/µs guaranteed (MOC306X-M)
■
VDE recognized (File # 94766)
– ordering option V (e.g., MOC3063V-M)
■
Underwriters Laboratories (UL) recognized
(File #E90700, volume 2)
Applications
■
Solenoid/valve controls
■
Static power switches
■
Temperature controls
■
AC motor starters
■
Lighting controls
■
AC motor drives
■
E.M. contactors
■
Solid state relays
Description
The MOC306XM and MOC316XM devices consist of a
GaAs infrared emitting diode optically coupled to a
monolithic silicon detector performing the function of a
zero voltage crossing bilateral triac driver. They are
designed for use with a triac in the interface of logic sys-
tems to equipment powered from 115/240 VAC lines,
such as solid-state relays, industrial controls, motors,
solenoids and consumer appliances, etc.

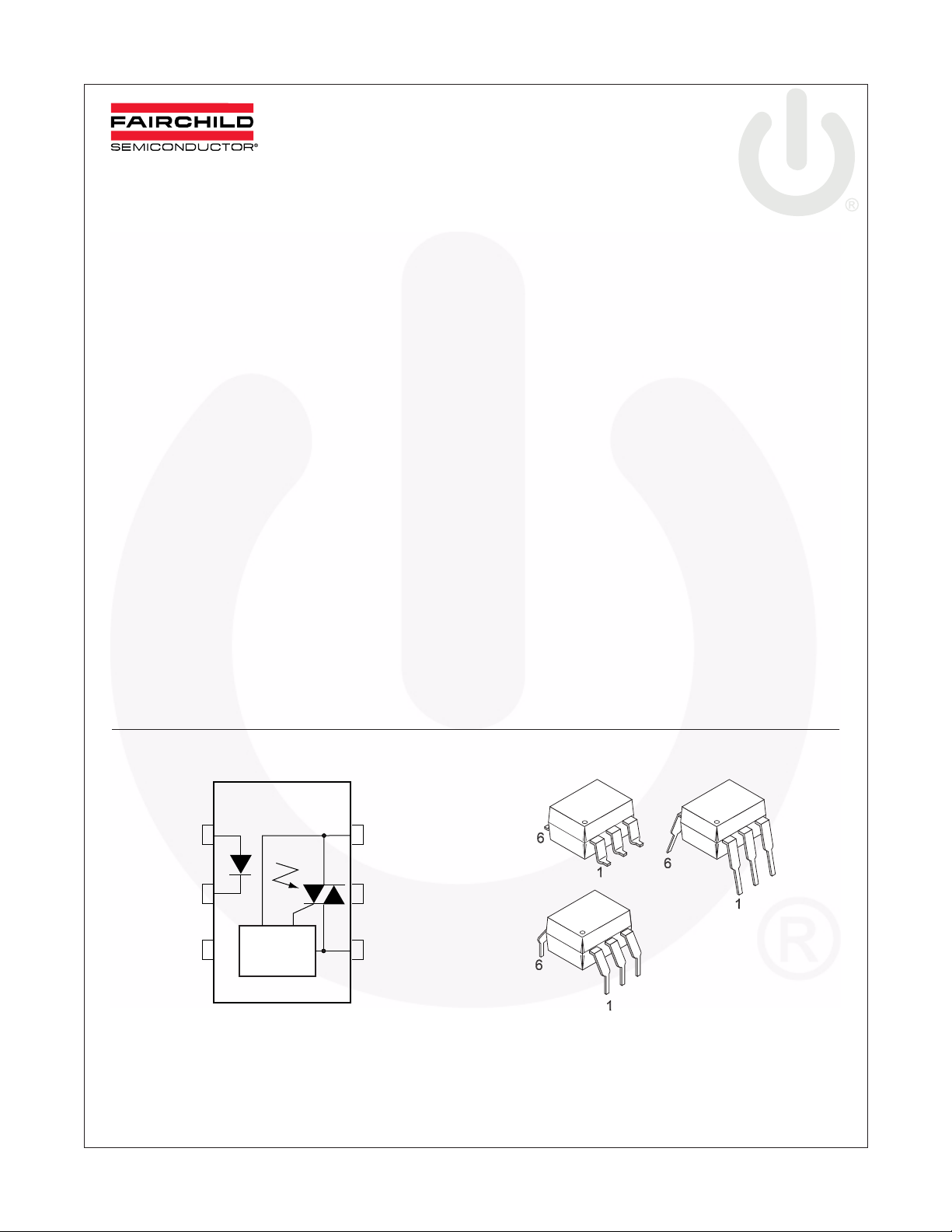

Schematic Package Outlines
MAIN TERM.
NC*
N/C
*DO NOT CONNECT
(TRIAC SUBSTRATE)
1
2
3
ANODE
CATHODE
4
5
6
MAIN TERM.
ZERO
CROSSING
CIRCUIT
