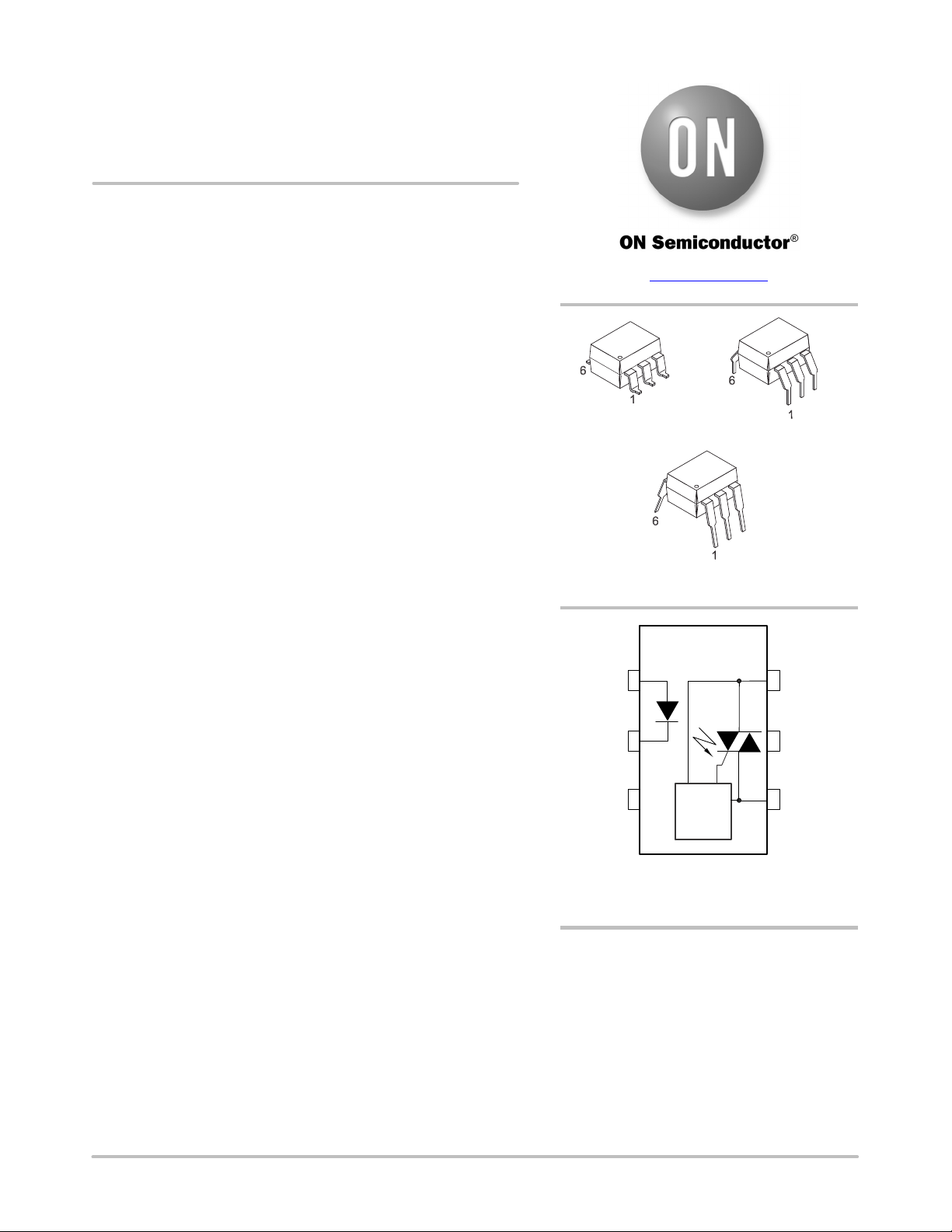

© Semiconductor Components Industries, LLC, 2019
September, 2019 − Rev. 1
1 Publication Order Number:
MOC3083M/D
6-Pin DIP Zero-Cross Triac
Driver Optocoupler
(800 V Peak)
MOC3081M, MOC3082M,
MOC3083M
Description
The MOC3081M, MOC3082M and MOC3083M devices consist of
a GaAs infrared emitting diode optically coupled to a monolithic
silicon detector performing the function of a zero voltage crossing
bilateral triac driver.
They are designed for use with a discrete power triac in the interface
of logic systems to equipment powered from 240 VAC lines, such as
solid−state relays, industrial controls, motors, solenoids and consumer
appliances, etc.
Features
• Simplifies Logic Control of 240 VAC Power
• Zero Voltage Crossing to Minimize Conducted and Radiated Line
Noise
• 800 V Peak Blocking Voltage
• Superior Static dv/dt
♦ 1500 V/ms Typical, 600 V/ms Guaranteed
• Safety and Regulatory Approvals
♦ UL1577, 4,170 VAC
RMS
for 1 Minute
♦ DIN EN/IEC60747−5−5
• These are Pb−Free Devices
Applications
• Solenoid/Valve Controls
• Lighting Controls
• Static Power Switches
• AC Motor Starters
• Temperature Controls
• E.M. Contactors
• AC Motor Drives
• Solid State Relays
www.onsemi.com
PDIP6 8.51x6.35, 2.54P
CASE 646BZ
See detailed ordering and shipping information on page 9 o
f
this data sheet.
ORDERING INFORMATION
PDIP6 8.51x6.35, 2.54P
CASE 646BY
PDIP6 8.51x6.35, 2.54P
CASE 646BX
Figure 1. Schematic
MAIN TERM
.
NC*
N/C
*DO NOT CONNECT
(TRIAC SUBSTRATE)
1
2
3
ANODE
CATHODE
4
5
6
CIRCUIT
MAIN TERM
.
CROSSING
ZERO
