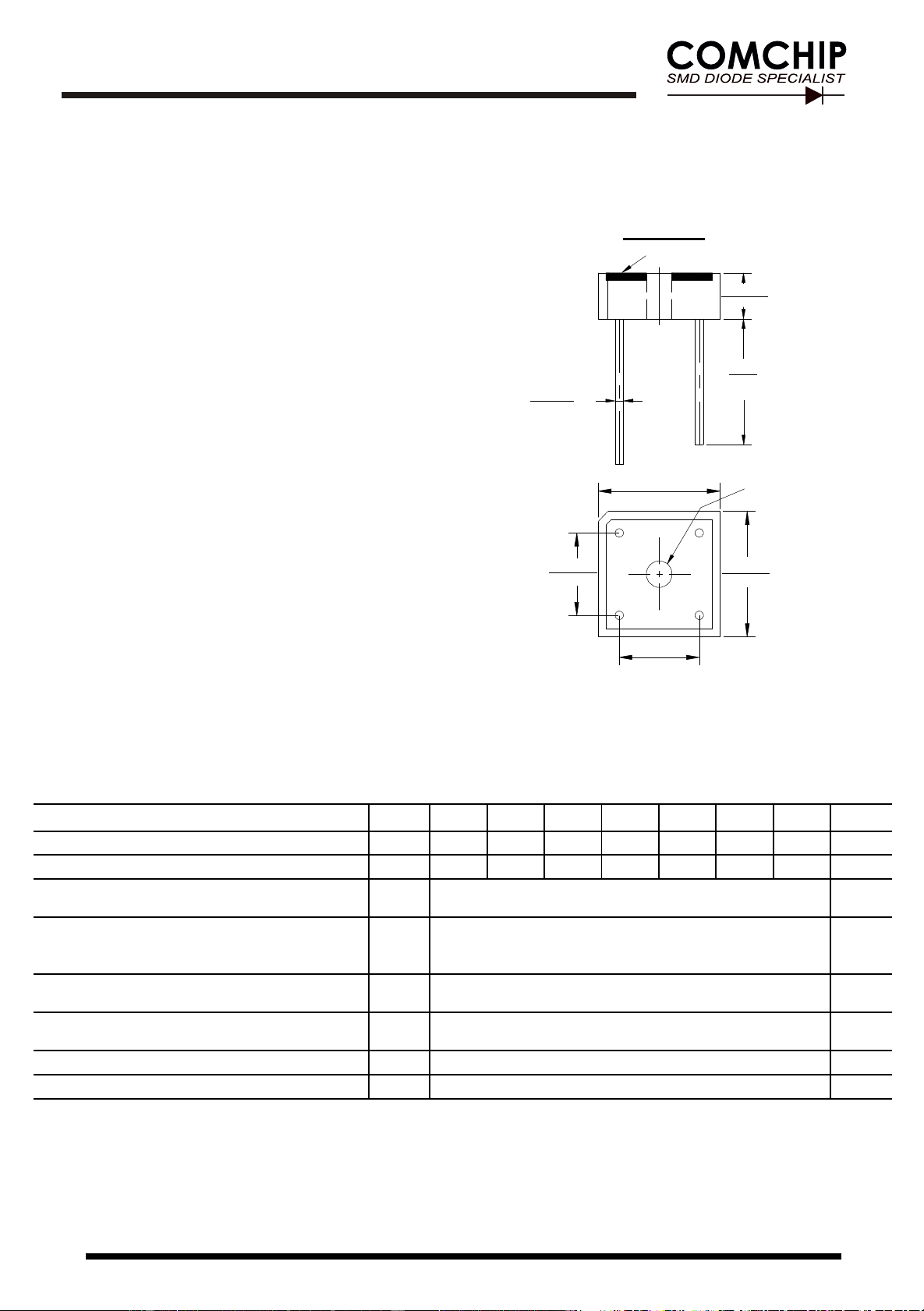

Surface Mount Glass Passivated Bridge Rectifiers
MDS0905012A
Page 1
MP10005G-G thru MP1010G
-G
"-G" : RoHS Device
FEATURES
- Surge overload rating -200 amperes peak
- Low forward voltage drop
- Small size; simple installation
- Sliver plated copper leads
- Mounting position: Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
MP MP MP MP MP MP MP
10005G 1001G 1002G 1004G 1006G 1008G 1010G
Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000
V
Maximum RMS Bridge Input Voltage VRMS 35 70 140 280 420 560 700
V
Maximum Average Forward
Rectified Output Current at TA=50℃
Peak Forward Surge Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load
Maximum Forward Voltage Drop
Per Bridge Element at 5.0A Peak
Maximum Reverse Current at Rated TJ=25℃ μA
DC Blocking Voltage Per Element TJ=100℃ mA
Operating Temperature Range TJ
℃
Storage Temperature Range TSTG
℃
For capacitive load, derate current by 20%
Single phase, half wave ,60Hz, resistive or inductive load.
Rating at 25℃ ambient temperature unless otherwise specified.
REVERSE VOLTAGE - 50 to 1000Volts
FORWARD CURRENT - 10.0 Amperes
Dimensions in inches and (milimeters)
Polarity shown on side of case, Positive lead by beveled corner.
A
IR
10.0
1.0
VF
AI(AV)
UNITSYMBOL
-55 to +150
IFSM
-55 to +150
CHARACTERISTICS
V1.1
200
10.0
MP8
MIN
(19.0)
.750
.307(7.8)
.267(6.8)
HOLE FOR
NO.6 SCREW
.480(12.2)
.520(13.2) .770(19.6)
.730(18.5)
.730(18.5)
.770(19.6)
DIA.
.052(1.3)
.048(1.2)
.520(13.2)
.480(12.2)
METAL HEAT SINK
