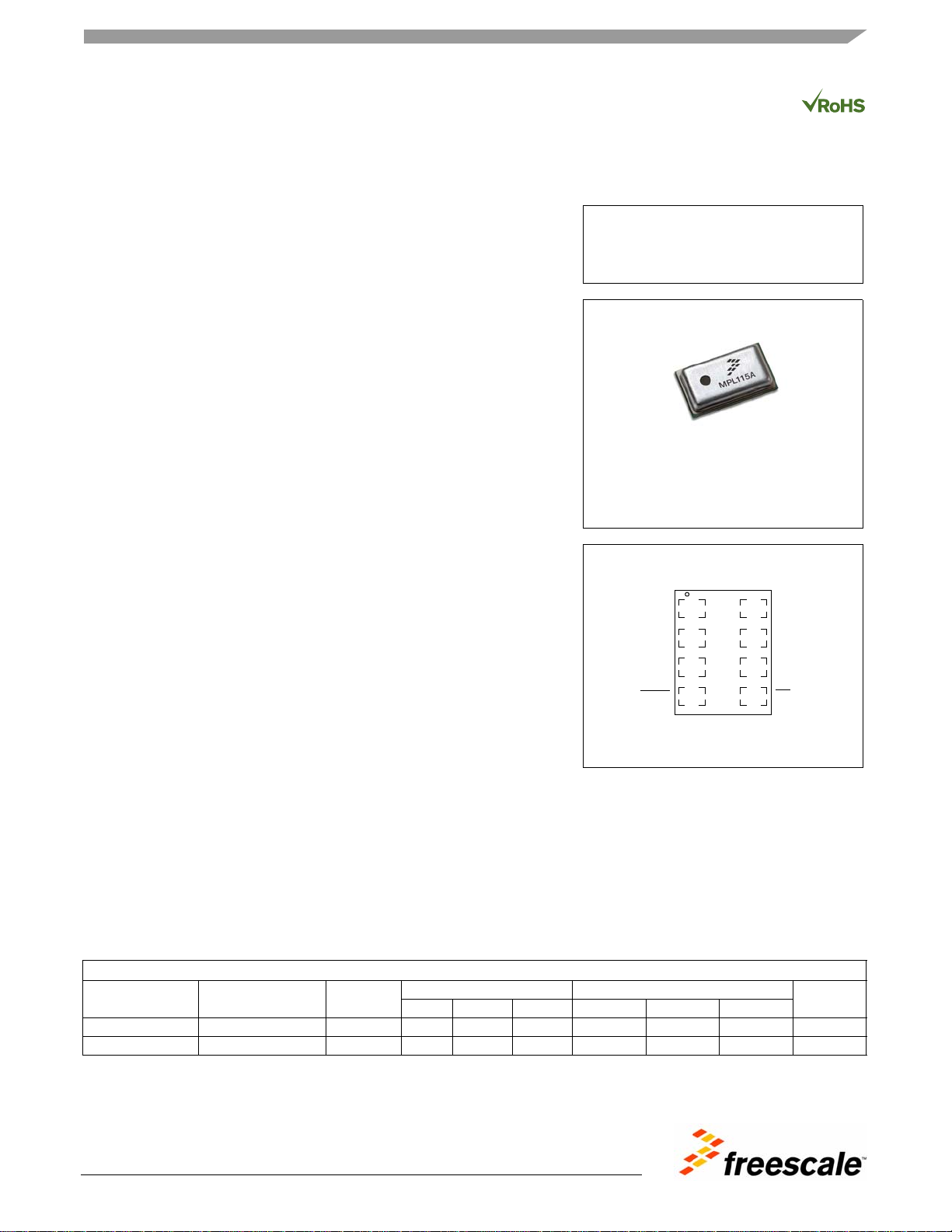

Document Number: MPL115A1
Rev. 7, 02/2013
Freescale Semiconductor
Data Sheet: Technical Data
© 2009-2013 Freescale Semiconductor, Inc. All rights reserved.
Miniature SPI Digital Barometer
The MPL115A1 is an absolute pressure sensor with a digital SPI output targeting
low cost applications. A miniature 5 x 3 x 1.2 mm LGA package is ideally suited
for the space constrained requirements of portable electronic devices. Low
current consumptions of 5 μA during Active mode and 1 μA during Shutdown
(Sleep) mode are essential when focusing on low-power applications. The wide
operating temperature range spans from -40°C to +105°C to fit demanding
environment conditions.
The MPL115A1 employs a MEMS pressure sensor with a conditioning IC to
provide accurate pressure measurements from 50 to 115 kPa. An integrated
ADC converts pressure and temperature sensor readings to digitized outputs via
a SPI port. Factory calibration data is stored internally in an on-board ROM.
Utilizing the raw sensor output and calibration data, the host microcontroller
executes a compensation algorithm to render Compensated Absolute Pressure
with ±1 kPa accuracy.
The MPL115A1 pressure sensor’s small form factor, low power capability,
precision, and digital output optimize it for barometric measurement
applications.
Features
• Digitized pressure and temperature information together with programmed
calibration coefficients for host micro use.
• Factory calibrated
• 50 kPa to 115 kPa absolute pressure
• ±1 kPa accuracy
• 2.375V to 5.5V supply
• Integrated ADC
• SPI Interface
• Monotonic pressure and temperature data outputs
• Surface mount RoHS compliant package
Application Examples
• Barometry (portable and desktop)
• Altimeters
• Weather stations
• Hard-disk drives (HDD)
• Industrial equipment
• Health monitoring
• Air control systems
ORDERING INFORMATION
Device Name Package Options Case No.
# of Ports Pressure Type
Digital
Interface
None Single Dual Gauge Differential Absolute
MPL115A1
Tray 2015 • • SPI
MPL115A1T1
Tape & Reel (1000) 2015 • • SPI
MPL115A1
50 to 115 kPa
Top View
LGA Package
5.0 mm x 3.0 mm x 1.2 mm
Pin Connections
1
DOUT
DIN
VDD
CAP
SHDN
GND
CS
SCLK
2
3
4
8
7
6
5
