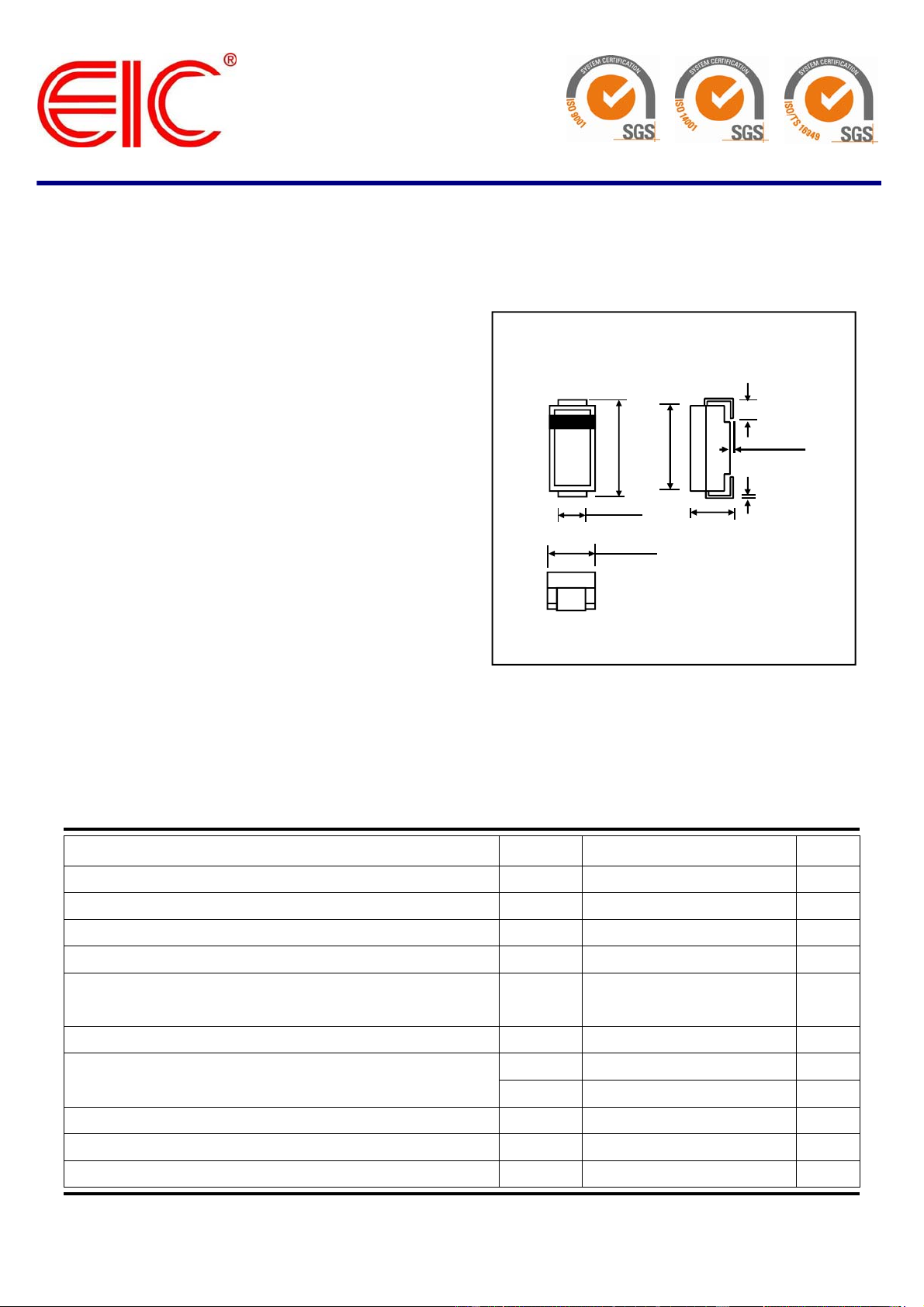

MURS120
SURFACE MOUNT
ULTRA FAST RECTIFIER
PRV : 200 Volts
Io : 1.0 Ampere
FEATURES :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Super Fast Recovery Time
* Pb / RoHS Free
MECHANICAL DATA :
* Case : SMB Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Lead Formed for Surface Mount
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.093 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratin
g
at 25 °C ambient tem
p
erature unless otherwise s
p
ecified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
SYMBOL VALUE UNIT
Maximum Repetitive Peak Reverse Voltage V
RRM
200 V
Maximum Working Reverse Voltage V
RWM
200 V
Maximum DC Blocking Voltage V
DC
200 V
Maximum Average Forward Current T
L
= 155 °C
I
F(AV)
1.0 A
Maximum Peak Forward Surge Current
(Surge applied at rated load conditions, half wave, single phase) I
FSM
40 A
Maximum Forward Voltage at I
F
= 1 A (Note 1) V
F
0.875 V
Maximum Reverse Current at T
J
= 25 °C
I
R
2.0
μA
Rated DC Blocking Voltage T
J
= 150 °C
I
R(H)
50
μA
Maximum Reverse Recovery Time ( Note 2 ) Trr 30 ns
Junction Temperature Range T
J
- 65 to + 175
°C
Storage Temperature Range T
STG
- 65 to + 175
°C
Notes :
(
1
)
Pulse Test : Pulse Width = 300
μ
s, Dut
y
C
y
cle ≤ 2.0%
( 2 ) Reverse Recovery Test Conditions : I
F
= 0.5A, I
R
= 1A ; Irr = 0.25 A
Page 1 of 2 Rev. 03 : September 28, 2012
RATING
SMB (DO-214AA)
Dimensions in millimeters
0.22 ± 0.07
2.1 ±0.15
5.30 ± 0.22
2.28 ± 0.15
4.65 ± 0.30
3.62 ±0.32
1.14 ± 0.38
0.1 ± 0.1
IATF 0113686
SGS TH07/1033
TH09/2479
TH97/2478
www.eicsemi.com
