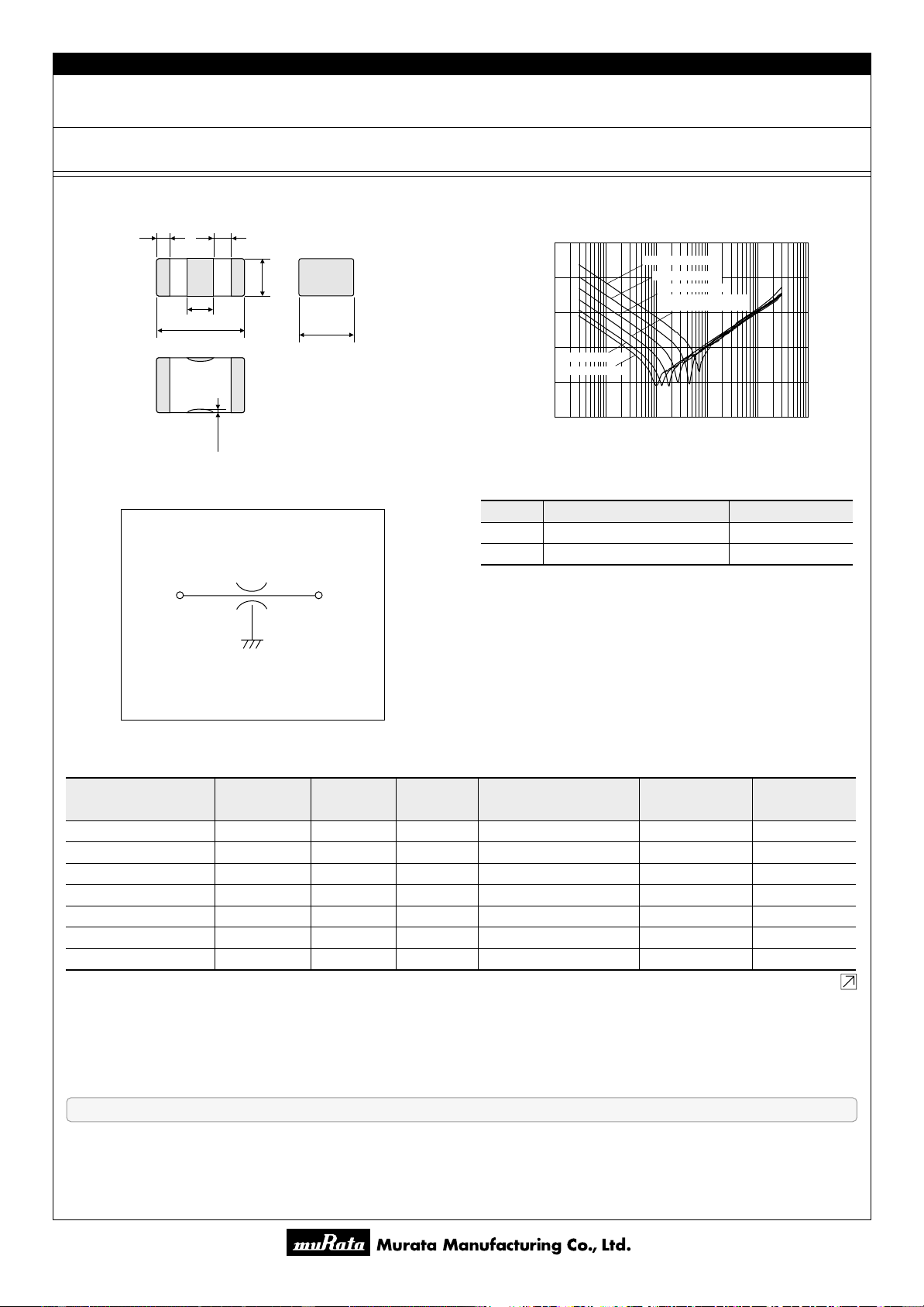

o This data sheet is applied for CHIP EMIFILr used for General Electronics equipment for your design.
2007.5.10
Noise Suppression Products/EMI Suppression Filters > Chip EMIFILr Capacitor Type > Chip EMIFILr for Large Current
0.3±0.2 0.4±0.2
(1) (3)
(2)
(2)
1.25±0.1
2.0±0.2
0.6±0.2
(in mm)
0.85±0.1
0.25±0.2
(50Ω - 50Ω)
Frequency (MHz)
Insertion Loss (dB)
0
20
40
60
80
100
0.1 1 10
100
1000 10000
NFM21PC104R1E3
NFM21PC224R1C3
NFM21PC474R1C3
NFM21PC105B1A3 (10V)
NFM21PC105B1C3 (16V)
NFM21PC225B0J3
NFM21PC475B1A3
Input(1) Output (3)
(2)
GND
No polarity.
Chip EMIFILr Capacitor Type Chip EMIFILr for Large Current
NFM21P Series (0805 Size)
■ Dimension ■ Insertion Loss Characteristics
■ Equivalent Circuit ■ Packaging
Code Packaging Minimum Quantity
D 180mm Paper Tape 4000
B Bulk(Bag) 500
■ Rated Value (p: packaging code)
Part Number Capacitance Rated Current Rated Voltage Insulation Resistance (min.)
Operating
Temperature Range
Number of Circuit
NFM21PC104R1E3p
0.1µF+20%-20% 2A 25Vdc 1000M ohm -55°C to +125°C 1
NFM21PC224R1C3p
0.22µF+20%-20% 2A 16Vdc 1000M ohm -55°C to +125°C 1
NFM21PC474R1C3p
0.47µF+20%-20% 2A 16Vdc 1000M ohm -55°C to +125°C 1
NFM21PC105B1A3p
1.0µF+20%-20% 4A 10Vdc 500M ohm -40°C to +85°C 1
NFM21PC105B1C3p
1.0µF+20%-20% 4A 16Vdc 500M ohm -40°C to +85°C 1
NFM21PC225B0J3p
2.2µF+20%-20% 4A 6.3Vdc 200M ohm -40°C to +85°C 1
NFM21PC475B1A3p
4.7µF+20%-20% 6A 10Vdc 100M ohm -40°C to +85°C 1
Continued on the following page.
