© Semiconductor Components Industries, LLC, 2015
September, 2020 − Rev. 17
1 Publication Order Number:
NL27WZ07/D
Dual Buffer with Open Drain
Outputs
NL27WZ07
The NL27WZ07 is a high performance dual buffer with open drain
outputs operating from a 1.65 to 5.5 V supply.
Features
• Designed for 1.65 V to 5.5 V V
CC
Operation
• 2.1 ns t
PD
at V
CC
= 5 V (Typ)
• Inputs/Outputs Overvoltage Tolerant up to 5.5 V
• I
OFF
Supports Partial Power Down Protection
• Sink 24 mA at 3.0 V
• Available in SC−88, SC−74 and UDFN6 Packages
• Chip Complexity < 100 FETs
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant

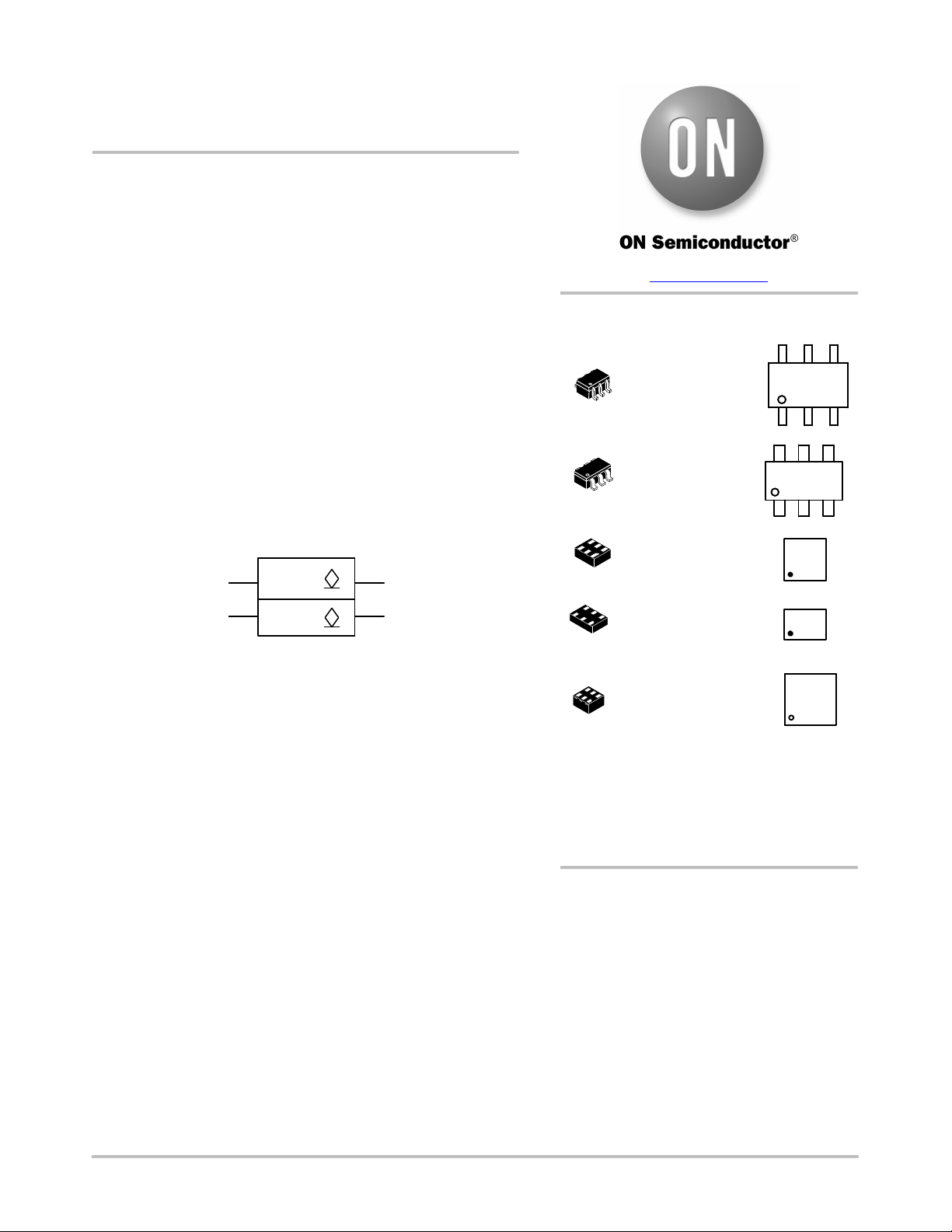

Figure 1. Logic Symbol
A2
Y2
1
1
Y1
A1
G
G
1
XXXM
1
6
See detailed ordering, marking and shipping information in the
package dimensions section on page 7 of this data sheet.
ORDERING INFORMATION
MARKING
DIAGRAMS
www.onsemi.com
X, XXX = Specific Device Code
M = Date Code*
G = Pb−Free Package
(Note: Microdot may be in either location)
*Date Code orientation and/or position may
vary depending upon manufacturing location.
SC−88
DF SUFFIX
CASE 419B
UDFN6
1.0 x 1.0
CASE 517BX
X M
1
XXX MG
G
SC−74
CASE318F−05
XM
UDFN6
1.45 x 1.0
CASE 517AQ
1
1
6
1
X M
UDFN6, 1.2x1.0, 0.4P
CASE 517AA−01
