Nordic Semiconductor ASA - Otto Nielsens vei 12 N-7004 Trondheim, Norway - Phone +4772898900 - Fax +4772898989
Revision: 1.0 Page 1 of 25 Date: 2008-02-29
nRF24L01+ TEST SETUP
INTRODUCTION
This document describes the different tests that can be done with the nRF24L01+ EVKIT.
The tests can be divided into three categories: RF performance tests, Range test and protocol
test.
It is required to read the documents describing the hardware and the software before these
tests are performed.
RF PERFORMANCE TEST
This chapter describes a basic RF performance test; measuring the out put power and how to
measure the current consumption of the nRF24L01+ in different modes.
Measuring the output power
To measure the output power, a PC running the nRF24L01+EC software, a nRF24L01+
EVSYSTEM with the nRF24L01+ REFMOD with SMA connector and a spectrum analyzer
are needed.
Connect the equipment as shown in Figure 1.
USB
AAA
AAA
AAA
MCU

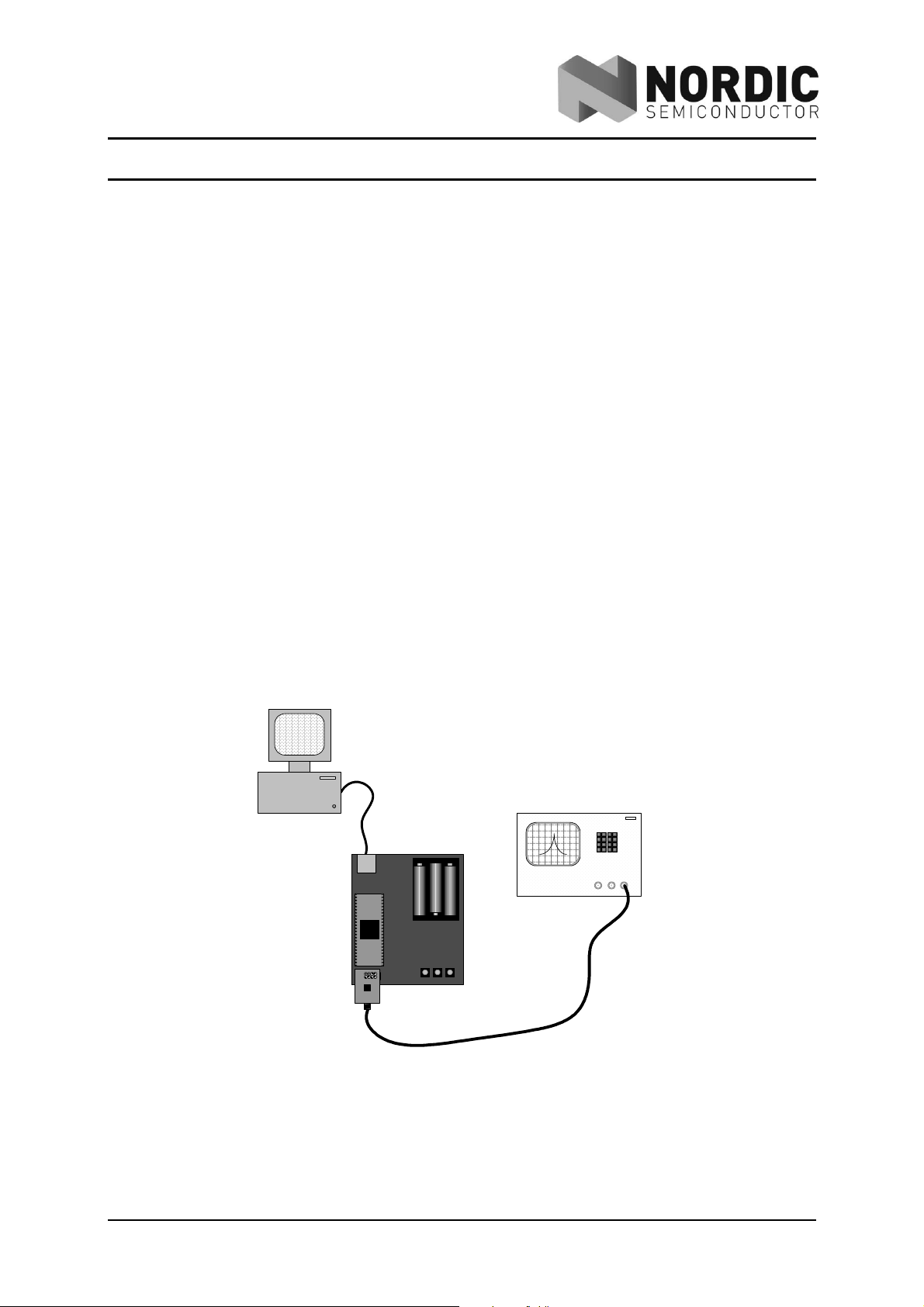

Figure 1: Test setup for output power measurement
