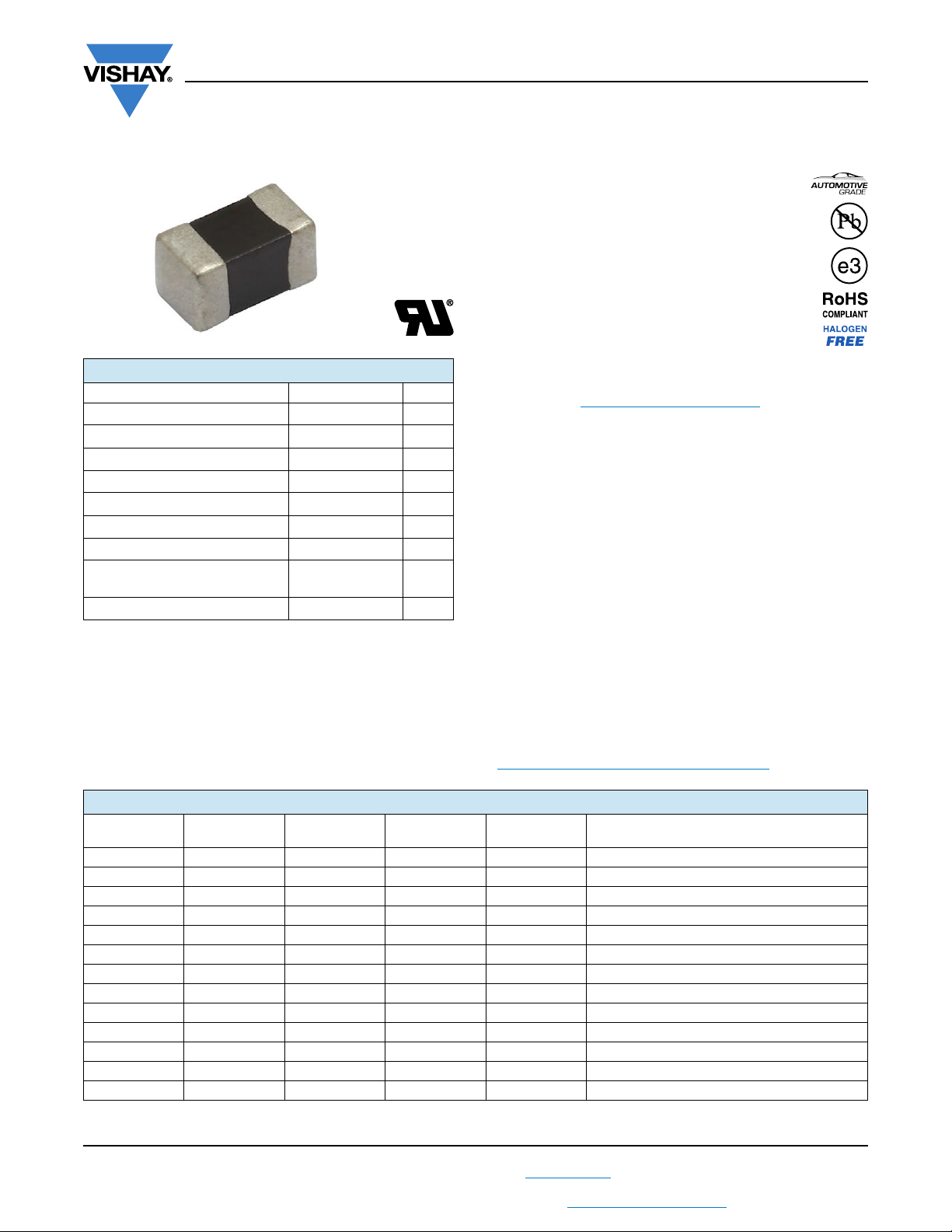

NTCS0603E3.....T
www.vishay.com
Vishay BCcomponents
Revision: 13-Jul-17
1
Document Number: 29056
For technical questions, contact: nlr@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
SMD 0603, Glass Protected NTC Thermistors
FEATURES
• TCR ranging from -7 %/K at -40 °C to -2 %/K
at 150 °C
• Tolerance on R
25
down to 1 %, and on B
25/85
down to 1 %
• Suitable for wave or reflow soldering
• NiSn terminations
• Fully glass coated and protected
• cUL recognized for safety applications
(file E148885)
• AEC-Q200 qualified
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
APPLICATIONS
• Temperature sensing, protection and compensation in
automotive, industrial, telecom and consumer
applications. Examples are:
- Battery chargers
- Power suppliers
- Office equipment
- LCD compensation
- In-car entertainment
DESCRIPTION
Size 0603 (M1608) glass protected SMD chip thermistor
with negative temperature coefficient (TCR) and tin (Sn)
plated terminations. The device has no marking.
PACKAGING
Available in 8 mm punched paper tape on reel package of
4000 units.
DESIGN-IN SUPPORT
For complete curve computation, please visit:
www.vishay.com/thermistors/ntc-curve-list/
Note
(1)
Replace * in SAP material number by J for ± 5 %, H for ± 3 %, G for ± 2 %, F for ± 1 % tolerance on R
25
QUICK REFERENCE DATA
PARAMETER VALUE UNIT
Resistance value at 25 °C 2.0K to 100K Ω
Tolerance on R
25
-value ± 1; ± 2; ± 3; ± 5 %
B
25/85
-value 3420 to 4100 K
Tolerance on B
25/85
-value ± 1 %
Maximum dissipation at 25 °C 125 mW
Thermal time constant τ≈ 8s
Dissipation factor D 3.0 mW/K
Operating temperature range
at zero power
-40 to +150 °C
Weight ≈ 0.006 g
ELECTRICAL DATA AND ORDERING INFORMATION
R
25
(Ω)
R
25
-TOL.
(± %)
B
25/85
(K)
B
25/85
-TOL.
(± %)
UL
RECOGNIZED
SAP MATERIAL AND ORDERING NUMBER
(1)
2000 5 3420 1 Y NTCS0603E3202JLT
2200 1, 2, 3, 5 3520 1 Y NTCS0603E3222*MT
2700 1, 2, 3, 5 3600 1 Y NTCS0603E3272*MT
4700 1, 2, 3, 5 3830 1 Y NTCS0603E3472*HT
10 000 1, 2, 3, 5 3435 1 Y NTCS0603E3103*LT
10 000 1, 2, 3, 5 3610 1 Y NTCS0603E3103*MT
10 000 1, 2, 3, 5 3960 1 Y NTCS0603E3103*HT
15 000 1, 2, 3, 5 3600 1 N NTCS0603E3153*MT
22 000 1, 2, 3, 5 3730 1 Y NTCS0603E3223*MT
33 000 1, 2, 3, 5 3860 1 Y NTCS0603E3333*HT
47 000 1, 2, 3, 5 3960 1 Y NTCS0603E3473*HT
68 000 1, 2, 3, 5 3985 1 Y NTCS0603E3683*HT
100 000 1, 2, 3, 5 4100 1 Y NTCS0603E3104*XT
