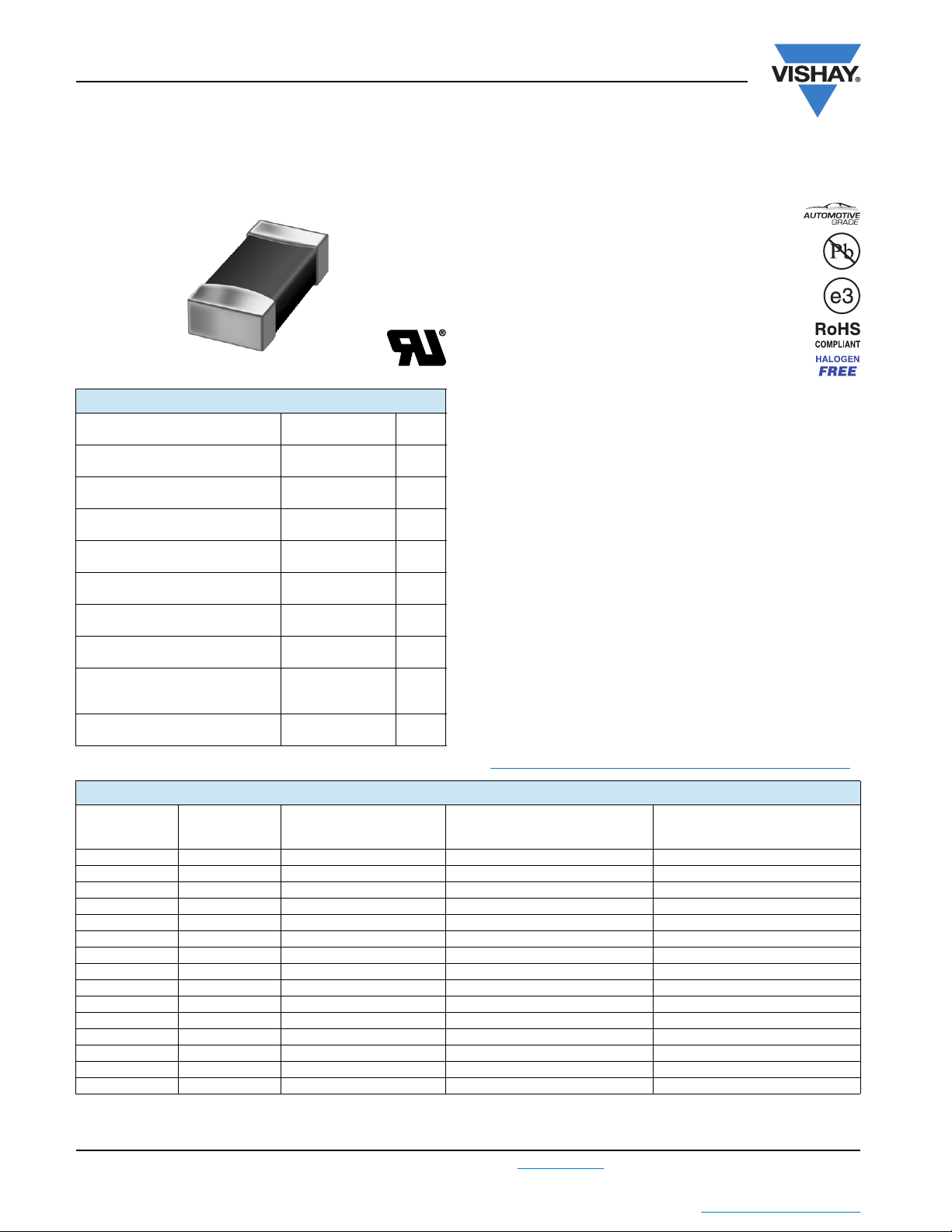

SMD 0805, Glass Protected NTC Thermistors
www.vishay.com For technical questions, contact: nlr@vishay.com
Document Number: 29044
16 Revision: 09-Mar-11
This datasheet is subject to change without notice.
THE PRODUCT DESCRIBED HEREIN AND THIS DATASHEET ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
NTCS0805E3.....T
Vishay BCcomponents
FEATURES
• TCR ranging from - 6 %/K at - 40 °C to
- 2 %/K at 150 °C
• Tolerance on R
25
down to 1 %, and on B
25/85
down to 1 %
• Suitable for wave or reflow soldering
• NiSn terminations
• Fully glass coated and protected
• cUL recognized for safety applications
(file E148885)
• AEC-Q200 qualified
• Compliant to RoHS Directive 2002/95/EC and in
accordance to WEEE 2002/96/EC
• Halogen-free according to IEC 61249-2-21 definition
APPLICATIONS
• Temperature sensing, protection and compensation in
automotive, industrial, telecom and consumer
applications. Examples are:
- Battery chargers
- Power suppliers
- Office equipment
- LCD compensation
- In-car entertainment
DESCRIPTION
Size 0805 chip thermistors with a negative temperature
coefficient. The device has no marking.
PACKAGING
Available in 8 mm punched paper tape on reel package of
4000 units.
DESIGN-IN SUPPORT
For complete Curve Computation, visit:
www.vishay.com/resistors-non-linear/curve-computation-list/
Notes
(1)
Replace * in SAP by J for 5 %, H for 3 %, G for 2 %, F for 1 % tolerance on R
25
(2)
Replace * in 12NC by 3 for 5 %, 6 for 3 %, 4 for 2 %, 5 for 1 % tolerance on R
25
QUICK REFERENCE DATA
PARAMETER VALUE UNIT
Resistance value at 25 °C 2.2K to 680K
Tolerance on R
25
-value ± 1; ± 2; ± 3; ± 5 %
B
25/85
-value 3600 to 4125 K
Tolerance on B
25/85
-value ± 1; ± 3 %
Maximum dissipation at 25 °C 210 mW
Thermal time constant 10 s
Dissipation factor D 3.5 mW/K
Operating temperature range
at zero power
- 40 to + 150 °C
Weight 0.008 g
ELECTRICAL DATA AND ORDERING INFORMATION
R
25
-VALUE
(k)
B
25/85
-VALUE
(K)
TOLERANCE ON B
25/85
(%)
SAP MATERIAL AND
ORDERING NUMBER
NTCS0805E3...
(1)
12NC OLD MATERIAL NUMBER
2381 615 5...
(2)
2.2 3600 ± 1 222*MT *222
4.7 3500 ± 1 472*MT *472
10 3430 ± 3 103*LT -
10 3570 ± 3 103*MT *103
10 3940 ± 1 103*HT -
15 3700 ± 1 153*MT *153
22 3800 ± 1 223*HT *223
33 3920 ± 1 333*HT *333
47 3960 ± 1 473*HT *473
68 4100 ± 1 683*XT *683
100 3590 ± 1 104*MT -
100 4100 ± 1 104*XT *104
330 3930 ± 1 334*HT *334
470 4025 ± 1 474*XT *474
680 4125 ± 1 684*XT *684
