ADS7816
12-Bit A/D
DCLOCK
D
OUT
OPA340
+5V
V
IN
V+
2
+In
3
-In
V
REF
8
4GND
Serial
Interface
1
0.1 Fm 0.1 Fm
7
6
5
NOTE: A/D Input = 0 to V
REF
V = 0V to 5V for
IN
0V to 5V output.
RC network filters high-frequency noise.
500W
3300pF
CS/SHDN
Copyright © 2016, Texas Instruments Incorporated
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
Reference
Design
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
OPA340
,
OPA2340
,
OPA4340
SBOS073C –SEPTEMBER 1997–REVISED AUGUST 2016
OPAx340 Single-Supply, Rail-to-Rail Operational Amplifiers
MicroAmplifier™ Series
1
1 Features
1
• Rail-to-Rail Input
• Rail-to-Rail Output (Within 1 mV)
• MicroSize Packages
• Wide Bandwidth: 5.5 MHz
• High Slew Rate: 6 V/µs
• Low THD + Noise: 0.0007% (f = 1 kHz)
• Low Quiescent Current: 750 µA/Channel
• Single, Dual, and Quad Versions
2 Applications
• Driving A/D Converters
• PCMCIA Cards
• Data Acquisition
• Process Control
• Audio Processing
• Communications
• Active Filters
• Test Equipment
3 Description
The OPA340 series rail-to-rail CMOS operational
amplifiers are optimized for low-voltage, single-supply
operation. Rail-to-rail input and output and high-
speed operation make them ideal for driving sampling
analog-to-digital (A/D) converters. They are also well-
suited for general purpose and audio applications as
well as providing I/V conversion at the output of
digital-to-analog (D/A) converters. Single, dual, and
quad versions have identical specifications for design
flexibility.
The OPA340 series operate on a single supply as low
as 2.5 V with an input common-mode voltage range
that extends 500 mV below ground and 500 mV
above the positive supply. Output voltage swing is to
within 1 mV of the supply rails with a 100-kΩ load.
These devices offer excellent dynamic response
(BW = 5.5 MHz, SR = 6 V/µs), yet quiescent current
is only 750 A. Dual and quad designs feature
completely independent circuitry for lowest crosstalk
and freedom from interaction.
The single (OPA340) packages are the tiny 5-pin
SOT-23 surface mount, 8-pin SOIC surface mount,
and 8-pin DIP. The dual (OPA2340) comes in the
miniature 8-pin VSSOP surface mount, 8-pin SOIC
surface mount, and 8-pin PDIP packages. The quad
(OPA4340) packages are the space-saving 16-pin
SSOP surface mount and 14-pin SOIC surface
mount. All are specified from –40°C to 85°C and
operate from –55°C to 125°C. A SPICE macromodel
is available for design analysis.
Device Information
(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
OPA340 SOT-23 (5) 3.00 mm × 3.00 mm
OPA340, OPA2340
PDIP (8) 9.81 mm × 6.35 mm
SOIC (8) 4.90 mm × 3.91 mm
OPA2340 VSSOP (8) 3.00 mm × 3.00 mm
OPA4340
SOIC (14) 8.65 mm × 3.91 mm
SSOP (16) 4.90 mm × 3.90 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.

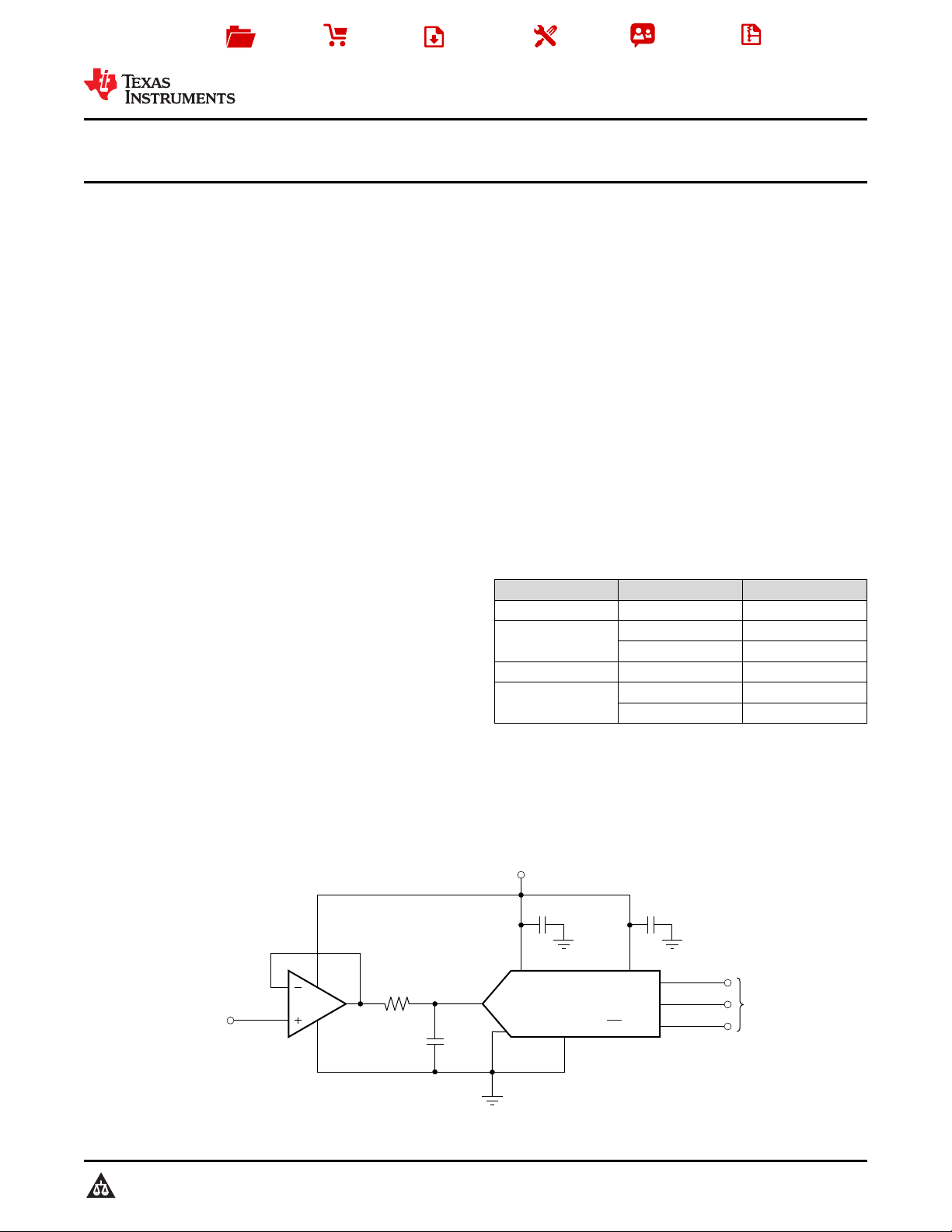

OPA340 in Noninverting Configuration Driving ADS7816
