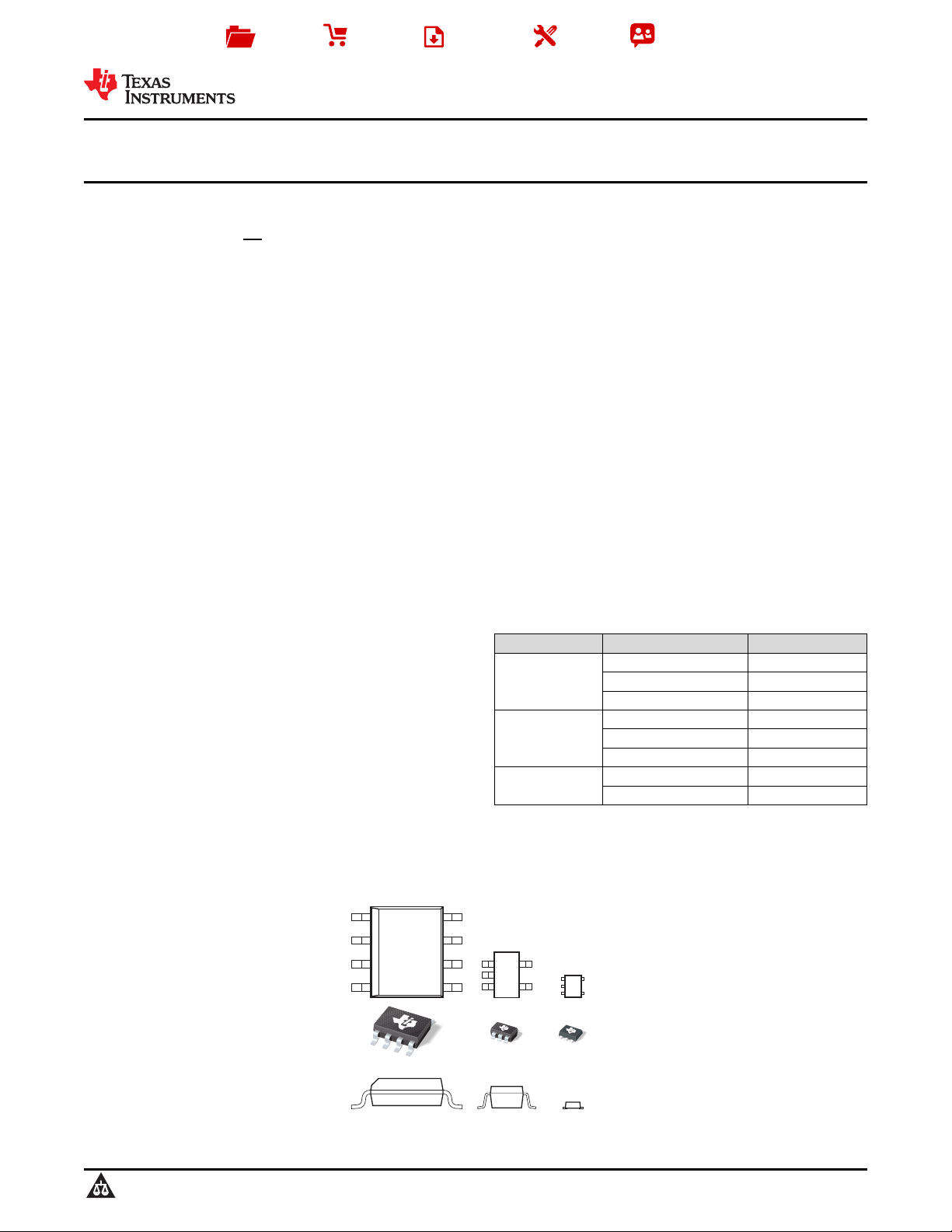

PackageFootprintComparison(toScale)
PackageHeight (toScale)Comparison
D(SO-8) DBV(SOT23-5) DRL(SOT553)
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
OPA170
,
OPA2170
,
OPA4170
SBOS557C –AUGUST 2011–REVISED MARCH 2016
OPAx170 36-V, Single-Supply, SOT553, Low-Power
Operational Amplifiers Value Line Series
1
1 Features
1
• Supply Range: 2.7 V to 36 V, ±1.35 V to ±18 V
• Low Noise: 19 nV/√Hz
• RFI Filtered Inputs
• Input Range Includes the Negative Supply
• Input Range Operates to Positive Supply
• Rail-to-Rail Output
• Gain Bandwidth: 1.2 MHz
• Low Quiescent Current: 110 µA per Amplifier
• High Common-Mode Rejection: 120 dB
• Low Bias Current: 15 pA (Maximum)
• Industry-Standard Packages and micro Packages
Available
2 Applications
• Tracking Amplifier in Power Modules
• Merchant Power Supplies
• Transducer Amplifiers
• Bridge Amplifiers
• Temperature Measurements
• Strain Gauge Amplifiers
• Precision Integrators
• Battery-Powered Instruments
• Test Equipment
3 Description
The OPA170, OPA2170, and OPA4170 devices
(OPAx170) are a family of 36-V, single-supply, low-
noise operational amplifiers that feature micro
packages with the ability to operate on supplies
ranging from 2.7 V (±1.35 V) to 36 V (±18 V). They
offer good offset, drift, and bandwidth with low
quiescent current. The single, dual, and quad
versions all have identical specifications for maximum
design flexibility.
Unlike most operational amplifiers, which are
specified at only one supply voltage, the OPAx170
family of operational amplifiers is specified from 2.7 V
to 36 V. Input signals beyond the supply rails do not
cause phase reversal. The OPAx170 family is stable
with capacitive loads up to 300 pF. The input can
operate 100 mV below the negative rail and within
2 V of the positive rail for normal operation. Note that
these devices can operate with full rail-to-rail input
100 mV beyond the positive rail, but with reduced
performance within 2 V of the positive rail. The
OPAx170 operational amplifiers are specified from
–40°C to 125°C.
Device Information
(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
OPA170
SOIC (8) 4.90 mm × 3.91 mm
SOT (5) 1.60 mm × 1.20 mm
SOT-23 (5) 2.90 mm × 1.60 mm
OPA2170
SOIC (8) 4.90 mm × 3.91 mm
VSSOP (8) 3.00 mm × 3.00 mm
VSSOP (8), micro size 2.30 mm × 2.00 mm
OPA4170
SOIC (14) 8.65 mm × 3.91 mm
TSSOP (14) 5.00 mm × 4.40 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Smallest Packaging for 36-V Operational Amplifiers
