C & K COMPONENTS OS102011MS2QN1C 拨动开关, SPDT, 开-开, 通孔安装, 100 mA
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
导航目录
OS102011MS2QN1C数据手册
Page:
of 7 Go
若手册格式错乱，请下载阅览PDF原文件

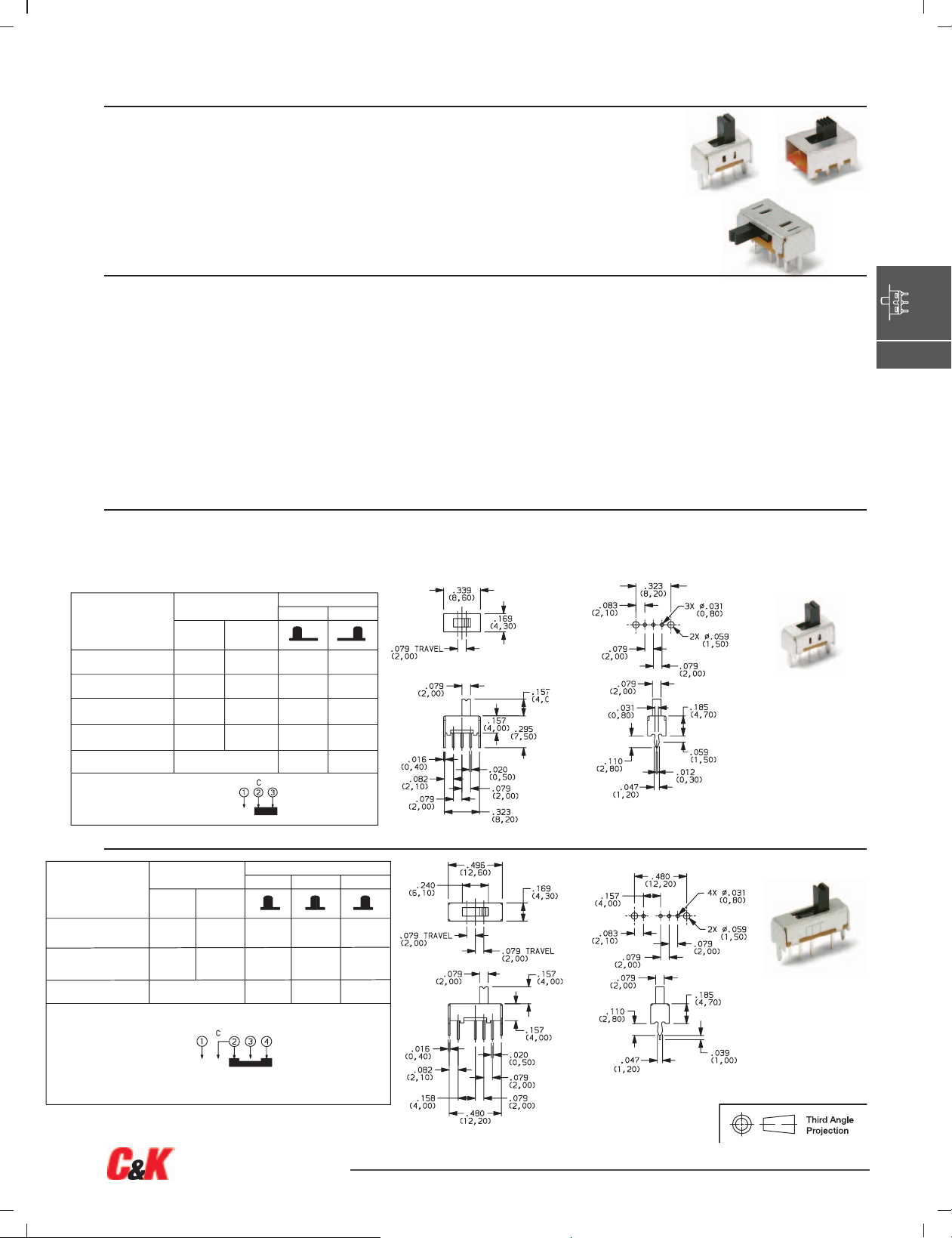

I
Slide
I–37
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
POS.1
POS.2
1-2
CONN. TERMINALS
SCHEMATIC
SPDT
PART NUMBER
SWIT
CH FUNCTION
OS102011MS2QN1
(non-shorting)
ON
ON
YES NO
RoHS
Comp
liant
RoH
S
Compatible
OS102011MS2QN1C
(non-shorting)
ON
ON
YES YES
2-3
OS102011MS2QS1
(shorting)
ON
ON
YES NO
OS102011MS2QS1C
(shorting)
ON
ON
YES YES
POS.1
POS.3POS.2
1-2
2-3
CONN. TERMINALS
SCHEMATIC
PART NUMBER
SWITCH FUNCTION
SP3T
OS103011MS8QP1
(Non-specified)
ROHS
Compliant
ROHS
Compatible
ONON
ON
YES NO
2-4
OS103011MS8QP1C
(Non-specified)
ONON
ON
YES YES
OS Series
Miniature Slide Switches
Actuator shown in pos. 3
4
1
2
3
4
PC MOUNTING
1
2
3
4
Actuator shown in pos. 2
3
1
2
3
PC MOUNTING
12
3
Features/Benefits
• Variety of actuators & terminations
• PC and panel mounting
• Gold or silver plating available
• Shorting or non-shorting contacts
• RoHS compliant
• Halogen free material
Typical Applications
• Test & measurement equipment
• Computer peripherals &
network products
• Consumer products
Specifications
CONTACT RATING: See individual parts.
MECHANICAL & ELECTRICAL LIFE: 10,000 cycles.
CONTACT RESISTANCE: 20 m Ω or less.
INSULATION RESISTANCE: 100 M Ω min. at 500 VDC.
DIELECTRIC STRENGTH: 500 VAC for 1 minute.
OPERATING TEMPERATURE: –30ºC to +70ºC.
PACKAGING: Bulk
* For RoHS compatible switches contact customer service.
How To Order
Complete part numbers for OS Series Slide Switches are shown on pages I–37 through I–43.
NOTE: Adding “C” option at the end of part number designates high temperature actuators
Materials
BASE: Phenolic resin.
ACTUATOR: POM, black.
HOUSING PLATE: Non-compatible; SPCC Sn plated.
Compatible; SPCC Ni plated.
MOVABLE CONTACT: Copper alloy, silver plated or gold.
STATIONARY CONTACTS: Brass, silver plated.
TERMINALS: Brass, silver plated (Gold plate - Contact
customer service).
TERMINAL SEALED.
NOTE: Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center
.
OS102011MS2QN1
SPDT
OS103011MS8QP1
SP3T
CONT
ACT RA
TING: 0.1A @ 12 VDC
CONT
ACT RA
TING: 0.1A @ 12 VDC
