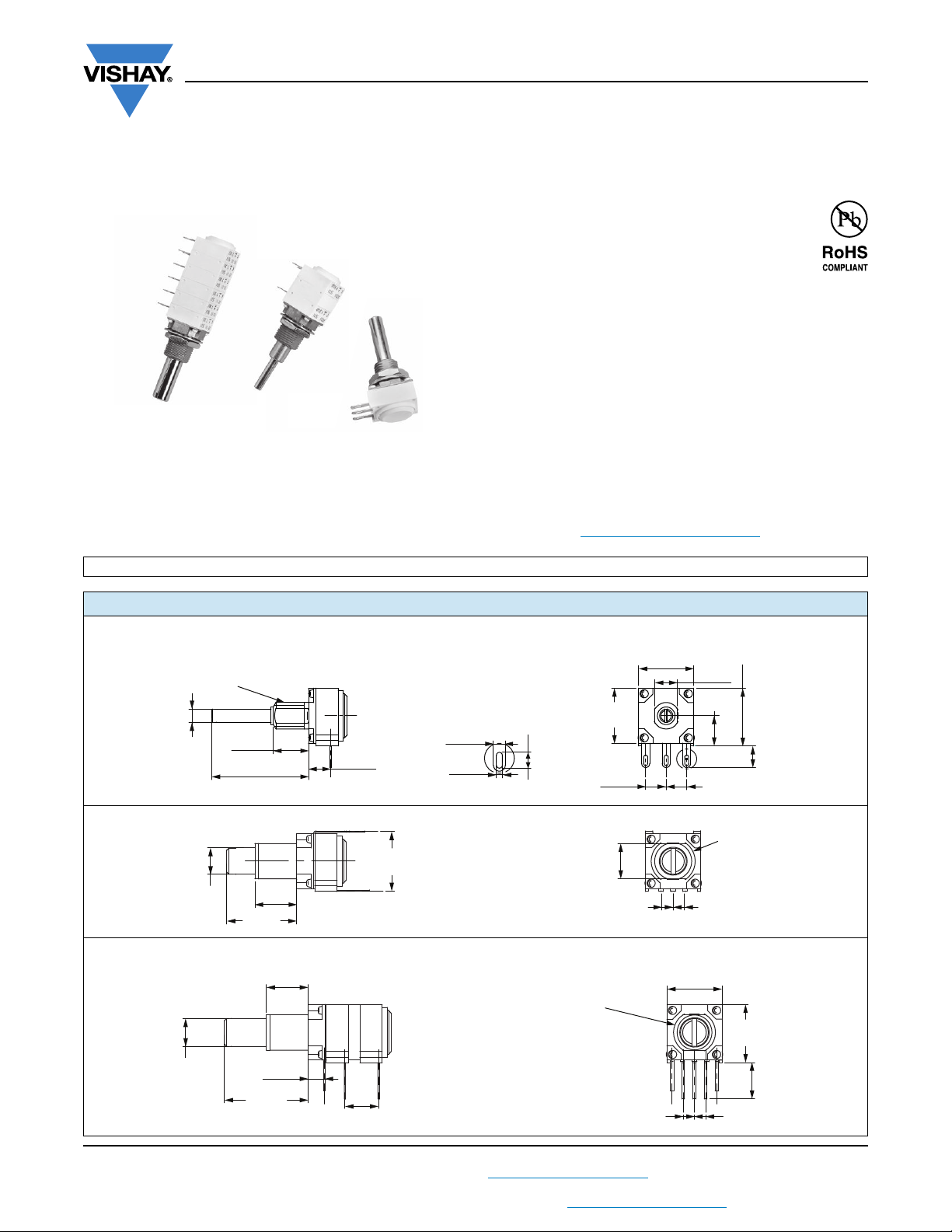

P11S, P11A
www.vishay.com
Vishay Sfernice
Revision: 24-Sep-15
1
Document Number: 51031
For technical questions, contact: sferpottrimmers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
12.5 mm Modular Panel Potentiometer Cermet (P11S)
or Conductive Plastic Elements (P11A)
FEATURES
• 12.5 mm square single turn panel control
• Five shaft diameters and 29 terminal styles
• Multiple assemblies - up to seven modules
• Tests according to CECC 41000 or IEC 60393-1
•GAM T1
• P11S version for industrial, military, and aeronautics
applications
• P11A version for professional audio applications
• Low current compatibility
• Shaft and panel sealed version
• Up to twenty-one indent positions
• Rotary and push/push switch options
• Concentric shafts
• Custom designs on request
• Trimmer version T11 (see document no. 51021)
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
VERSATILE MODULAR COMPACT ROBUST
CONFIGURATION EXAMPLE - Dimensions in millimeters (inches) ± 0.5 mm (± 0.02")
Single module, single shaft, solder lugs, metric bushing and shaft
Single module, single shaft, vertical mounting, PC pins with support plate, metric bushing and shaft
Dual modules, single shaft, PC pins with front support plates, imperial bushing and shaft
22
(0.866)
5.07
(0.200)
8
(0.315)
4.65
(0.183)
A
DETAIL A
0,9
(0.035)
1.8
(0.071)
M6 x 0.75
3
Ø (0.118)
2.4
(0.094)
12.5
(0.492)
4.65
(0.183)
12.5
(0.492)
5
(0.197)
6.85
(0.270)
13.1
(0.516)
4.9
(0.193)
M10 x 0.75
6
Ø (0.236)
9.5
(0.374)
16
(0.626)
12.7
(0.500)
8
(0.315)
2.54
(0.100)
2.54
(0.100)
3/8" x 3/8"
12.5
(0.492)
13.1
(0.516)
2.54
(0.100)
2.54
(0.100)
8
(0.325)
9.5
(0.374)
3.6
(0.143)
6.35
Ø (0.250)
19.05
(0.750)
7.62
(0.300)
