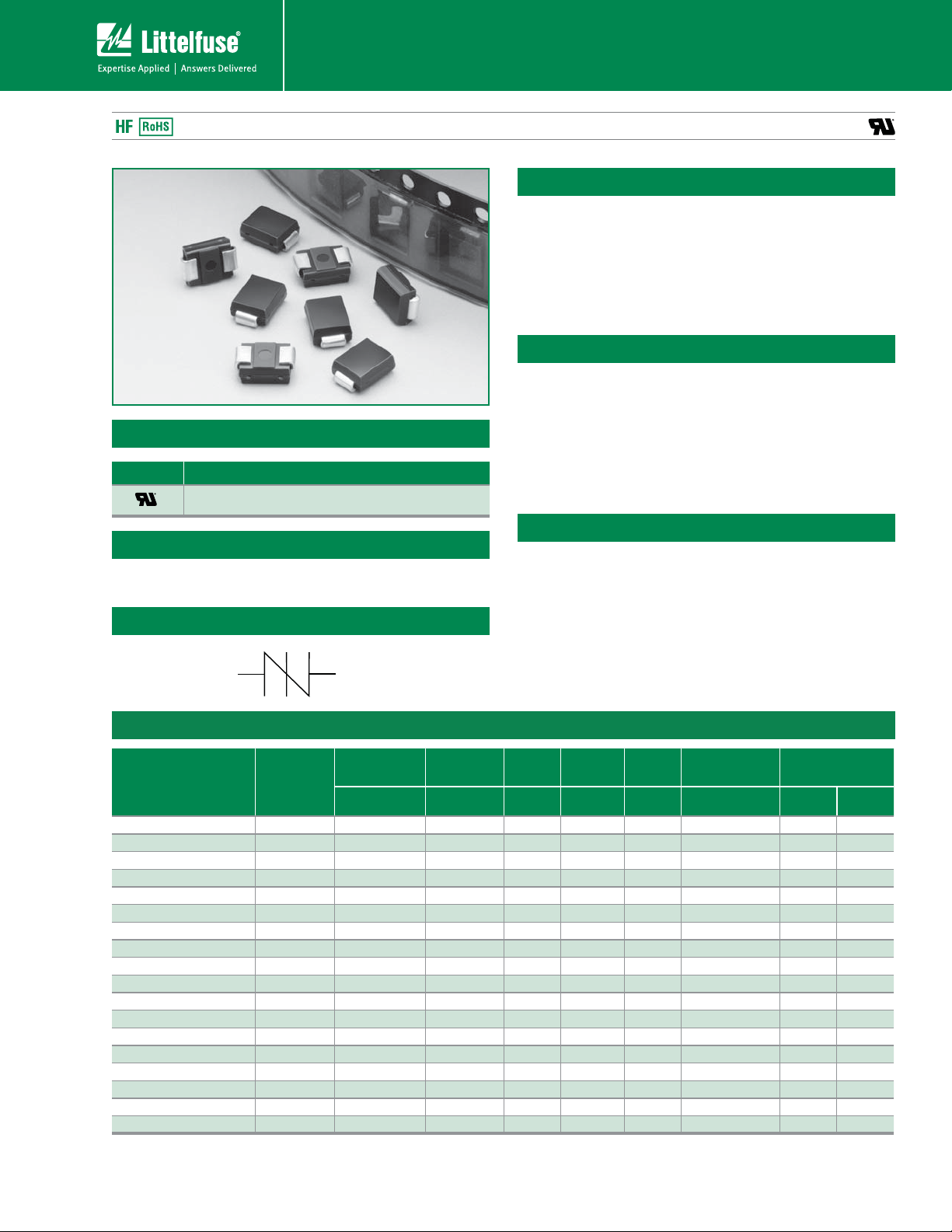

SIDACtor
®
Protection Thyristors
72
Revised: February 22, 2011
© 2011 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
Broadband Optimized™ Protection
MC Series DO-214 are low capacitance SIDACtor
®
devices designed to protect broadband equipment such
as VOIP, DSL modems and DSLAMs from damaging
overvoltage transients.
The series provides a surface mount solution that enables
equipment to comply with global regulatory standards
while limiting the impact to broadband signals.
MC Series - DO-214
Electrical Characteristics
Description
Applicable Global Standards
Features and Benefits
Agency Approvals
Agency Agency File Number
E133083
Schematic Symbol
Pinout Designation
NOT APPLICABLE
Part Number Marking
V
DRM
@l
DRM
=5μA
V
S
@100V/μs
I
H
I
S
I
T
V
T
@I
T
=2.2 Amps
Capacitance
@1MHz, 2V bias
V min V max mA min mA max A max V max pF min pF max
P0080SAMCLRP P-8AM 6 25 50 800 2.2 4 25 55
P0220SAMCLRP P02AM 15 32 50 800 2.2 4 25 50
P0300SAMCLRP P03AM 25 40 50 800 2.2 4 15 35
P0080SCMCLRP P-8CM 6 25 50 800 2.2 4 25 75
P0220SCMCLRP P02CM 15 32 50 800 2.2 4 30 65
P0300SCMCLRP P03CM 25 40 50 800 2.2 4 25 45
P0640SCMCLRP P06CM 58 77 150 800 2.2 4 55 85
P0720SCMCLRP P07CM 65 88 150 800 2.2 4 50 75
P0900SCMCLRP P09CM 75 98 150 800 2.2 4 45 70
P1100SCMCLRP P11CM 90 130 150 800 2.2 4 45 70
P1300SCMCLRP P13CM 120 160 150 800 2.2 4 40 60
P1500SCMCLRP P15CM 140 180 150 800 2.2 4 35 55
P1800SCMCLRP P18CM 170 220 150 800 2.2 4 35 50
P2100SCMCLRP P21CM 180 240 150 800 2.2 4 30 50
P2300SCMCLRP P23CM 190 260 150 800 2.2 4 30 50
P2600SCMCLRP P26CM 220 300 150 800 2.2 4 30 45
P3100SCMCLRP P31CM 275 350 150 800 2.2 4 30 45
P3500SCMCLRP P35CM 320 400 150 800 2.2 4 25 40
t TIA-968-A
t TIA-968-B
t ITU K.20/21 Enhanced
Level*
t ITU K.20/21 Basic Level*
t GR 1089 Inter-building*
t GR 1089 Intra-building*
t IEC 61000-4-5
t YD/T 1082
t YD/T 993
t YD/T 950
*A-rated parts require series resistance
t Low voltage overshoot
t Low on-state voltage
t Does not degrade with
use
t Fails short circuit when
surged in excess of
ratings
t 40% lower capacitance
than our Baseband
Protectors, for
applications that demand
greater signal integrity
Notes:
- Absolute maximum ratings measured at T
A
= 25ºC (unless otherwise noted).
- Devices are bi-directional (unless otherwise noted).
