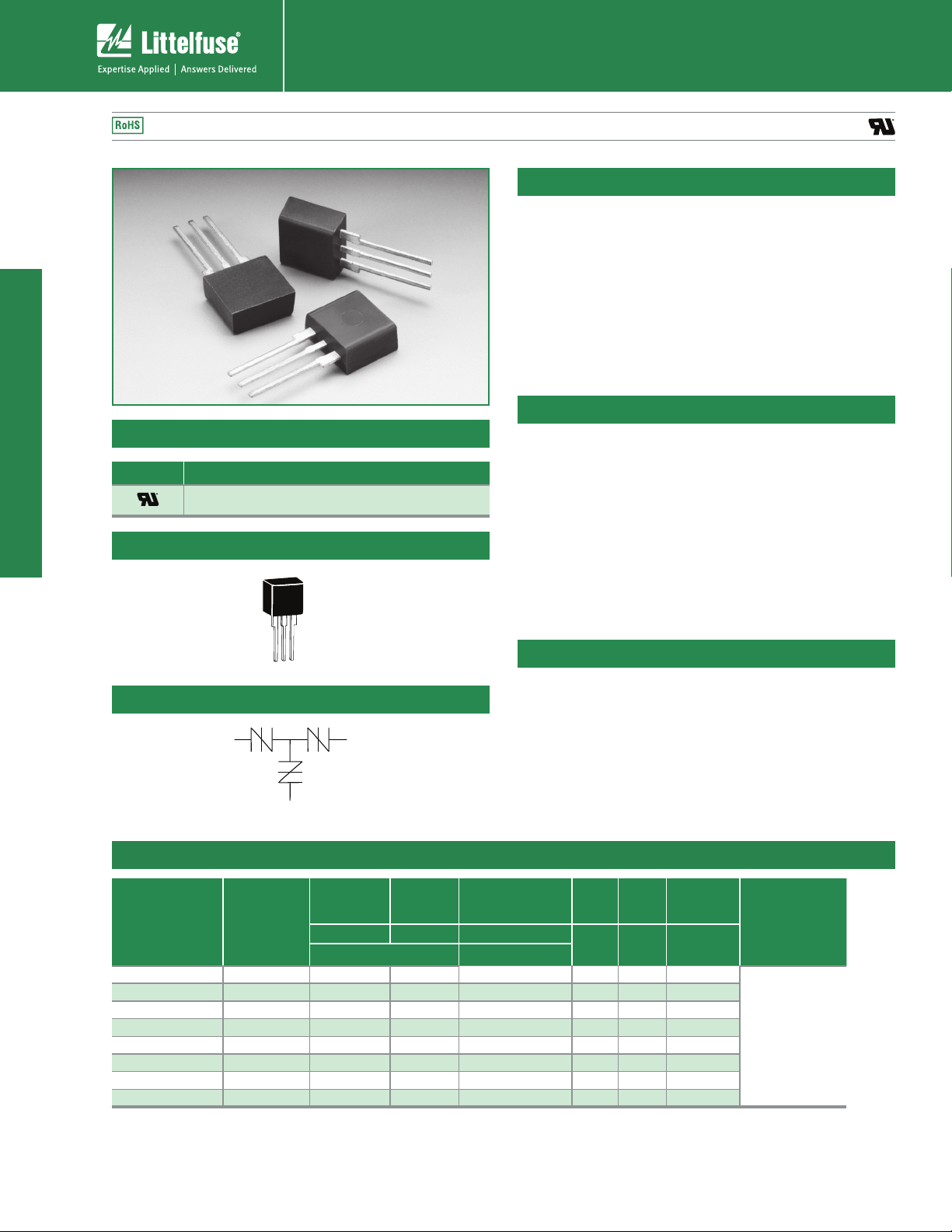

85
SIDACtor
®
Protection Thyristors
© 2010 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
Broadband Optimized™ Protection
Balance MC TO-220 Series
Balanced MC Series - Modified TO-220
Electrical Characteristics
Balanced MC Series Modified TO-220 are low
capacitance SIDACtor
®
devices designed to protect
broadband equipment from damaging overvoltage
transients. The patented “Y” configuration also ensures
balanced overvoltage protection.
The series provides a single port solution that enables
equipment to comply with various global requlatory
standards while limiting the impact to broadband
signals.
1
2
3
(T)
(R)
(G)
Description
Applicable Global Standards
Features and Benefits
t Low voltage overshoot
t Low on-state voltage
t Does not degrade with
use
t Fails short circuit when
surged in excess of
ratings
t Balanced overvoltage
protection
t 40% lower capacitance
than our Baseband
Protectors, for
applications that demand
greater signal integrity
t Robust Modified TO-220
Package
t Custom lead forms
available
Agency Approvals
Agency Agency File Number
E133083
Schematic Symbol
Pinout Designation
PIN 1
PIN 2
PIN 3
Part Number Marking
V
DRM
@l
DRM
=5μA
V
S
@100V/μs
I
H
I
S
I
T
V
T
@I
T
=2.2
Amps
Capacitance
V min V max mA max
mA
max
A max V min
Pins 1-2, 3-2, 1-3 Pins 1-2, 3-2, 1-3
P1553ACMCLxx P1553ACMC 130 180 150 800 2.2 8
See Capacitance
Values Table
P1803ACMCLxx P1803ACMC 150 210 150 800 2.2 8
P2103ACMCLxx P2103ACMC 170 250 150 800 2.2 8
P2353ACMCLxx P2353ACMC 200 270 150 800 2.2 8
P2703ACMCLxx P2703ACMC 230 300 150 800 2.2 8
P3203ACMCLxx P3203ACMC 270 350 150 800 2.2 8
P3403ACMCLxx P3403ACMC 300 400 150 800 2.2 8
P5103ACMCLxx
P5103ACMC
420 600 150 800 2.2 8
t TIA-968-A
t ITU K.20/21 Enhanced
Level
t ITU K.20/21 Basic
t GR 1089 Inter-building
t GR 1089 Intra-building
t IEC 61000-4-5
t YD/T 1082
t YD/T 993
t YD/T 950
Notes:
- Absolute maximum ratings measured at T
A
= 25ºC (unless otherwise noted).
- Devices are bi-directional (unless otherwise noted).
- XX Part Number Suffix: ‘RP’ (Reel Pack), Blank (Bulk Pack), or ‘60’ (Type 60 lead form, Bulk Pack. Special order item -- contact factory.)
