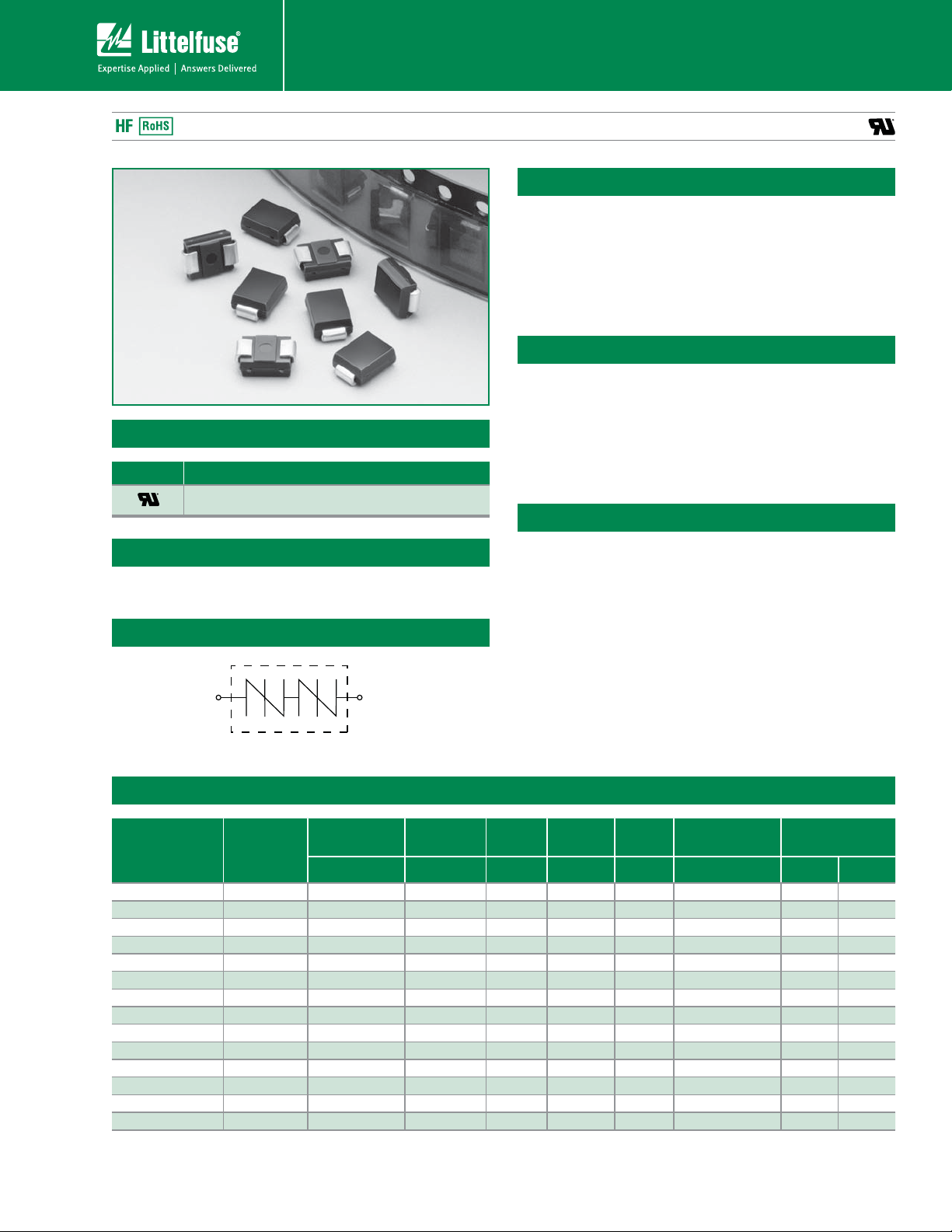

SIDACtor
®
Protection Thyristors
44
Revised: February 22, 2011
© 2011 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
Broadband Optimized™ Protection
TwinChip™ Series - DO-214
TwinChip™ Series DO-214 are very low capacitance
SIDACtor
®
devices designed to protect broadband
equipment such as VoIP, DSL modems and DSLAMs
from damaging overvoltage transients. This series
provides a surface mount solution that enables
equipment to comply with global regulatory standards,
while limiting the impact to broadband signals.
Electrical Characteristics
Description
t TIA/968-A
t ITU K.20/21
t IEC 61000-4-5
t GR 1089 Intra-building
t YD/T 1082
t YD/T 993
t YD/T 950
Applicable Global Standards
Features and Benefits
t Low voltage overshoot
t Low on-state voltage
t Does not degrade with
use
t Low distortion
t Fails short circuit when
surged in excess of
ratings
t 40% lower capacitance
than comparable product
Agency Approvals
Agency Agency File Number
E133083
Schematic Symbol
Pinout Designation
Part Number Marking
V
DRM
@l
DRM
=5μA
V
S
@100V/μs
I
H
I
S
I
T
V
T
@I
T
=2.2 Amps
Capacitance
@1MHz, 2V bias
V min V max mA min mA max A max V max pF min pF max
P0642SALRP
P062A
58 77 120 800 2.2 8 25 45
P0722SALRP P072A 65 88 120 800 2.2 8 20 45
P0902SALRP P092A 75 98 120 800 2.2 8 20 40
P1102SALRP P112A 90 130 120 800 2.2 8 15 35
P1302SALRP P132A 120 160 120 800 2.2 8 15 35
P1502SALRP P152A 140 180 120 800 2.2 8 15 30
P1802SALRP P182A 170 220 120 800 2.2 8 10 30
P2302SALRP P232A 190 260 120 800 2.2 8 10 25
P2602SALRP P262A 220 300 120 800 2.2 8 10 25
P3002SALRP P302A 280 360 120 800 2.2 8 10 25
P3502SALRP P352A 320 400 120 800 2.2 8 10 20
P4202SALRP P422A 380 500 120 800 2.2 8 10 20
P4802SALRP P482A 440 600 120 800 2.2 8 5 20
P6002SALRP
P602A
550 700 120 800 2.2 8 5 20
NOT APPLICABLE
Table continues on next page.
