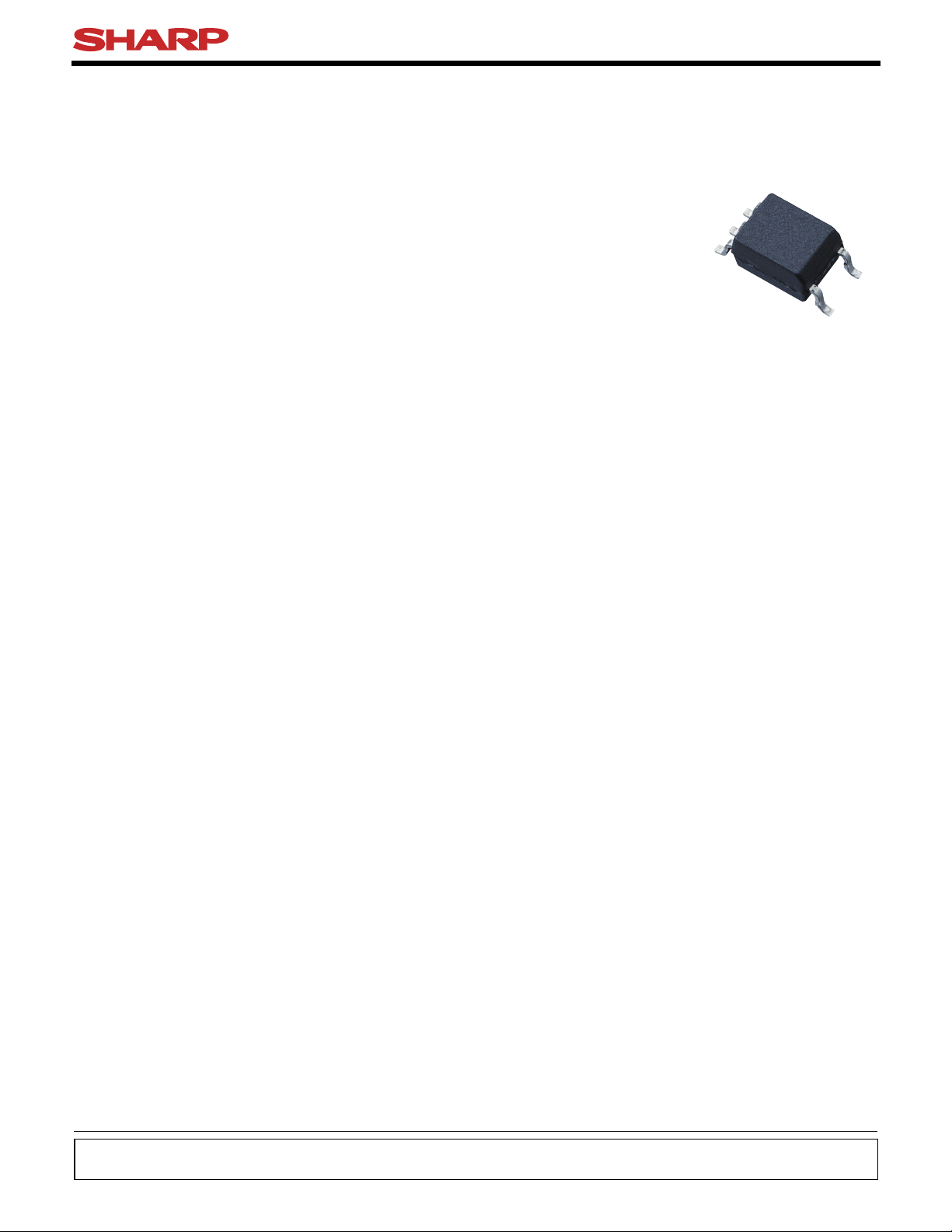

PC410L0NIP0F
Series
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No. PC410L)
2. Approved by VDE, DIN EN60747-5-2
(∗)
(as an op-
tion), file No. 40009162 (as model No. PC410L)
3. Package resin : UL flammability grade (94V-0)
(∗)
DIN EN60747-5-2 : successor standard of DIN VDE0884
■ Features
■ Agency approvals/Compliance
1. Programmable controllers
2. Inverter
■ Applications
High Speed 10Mb/s, High CMR
Mini-flat Package
∗
OPIC
Photocoupler
1. 5 pin Mini-flat package
2. Double transfer mold package
(Ideal for Flow Soldering)
3. High noise immunity due to high instantaneous com-
mon mode rejection voltage (CM
H
: MIN.10 kV/µs,
CM
L
: MIN. −10 kV/µs)
4. High speed response
(t
PHL :
TYP. 48 ns, t
PLH :
TYP. 50 ns)
5. High isolation voltage between input and output
(V
iso(rms)
: 3.75 kV)
6. Lead-free and RoHS directive compliant
■ Description
PC410L0NIP0F Series contains a LED optically cou-
pled to an OPIC chip.
It is packaged in a 5 pin mini-flat.
Input-output isolation voltage(rms) is 3.75 kV.
High speed response(TYP. 10 Mb/s) and CMR is
MIN. 10 kV/µs.
1
Sheet No.: D2-A04802EN
Date Jun. 30. 2005
© SHARP Corporation
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
PC410L0NIP0F Series
∗
"OPIC"(Optical IC) is a trademark of the SHARP Corporation. An OPIC consists of a light-detecting element and a signal-processing
circuit integrated onto a single chip.
