PC4H520NIP0F
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No. PC4H52)
2. Package resin : UL flammability grade (94V-0)
■ Features
■ Agency approvals/Compliance
1. Modems
■ Applications

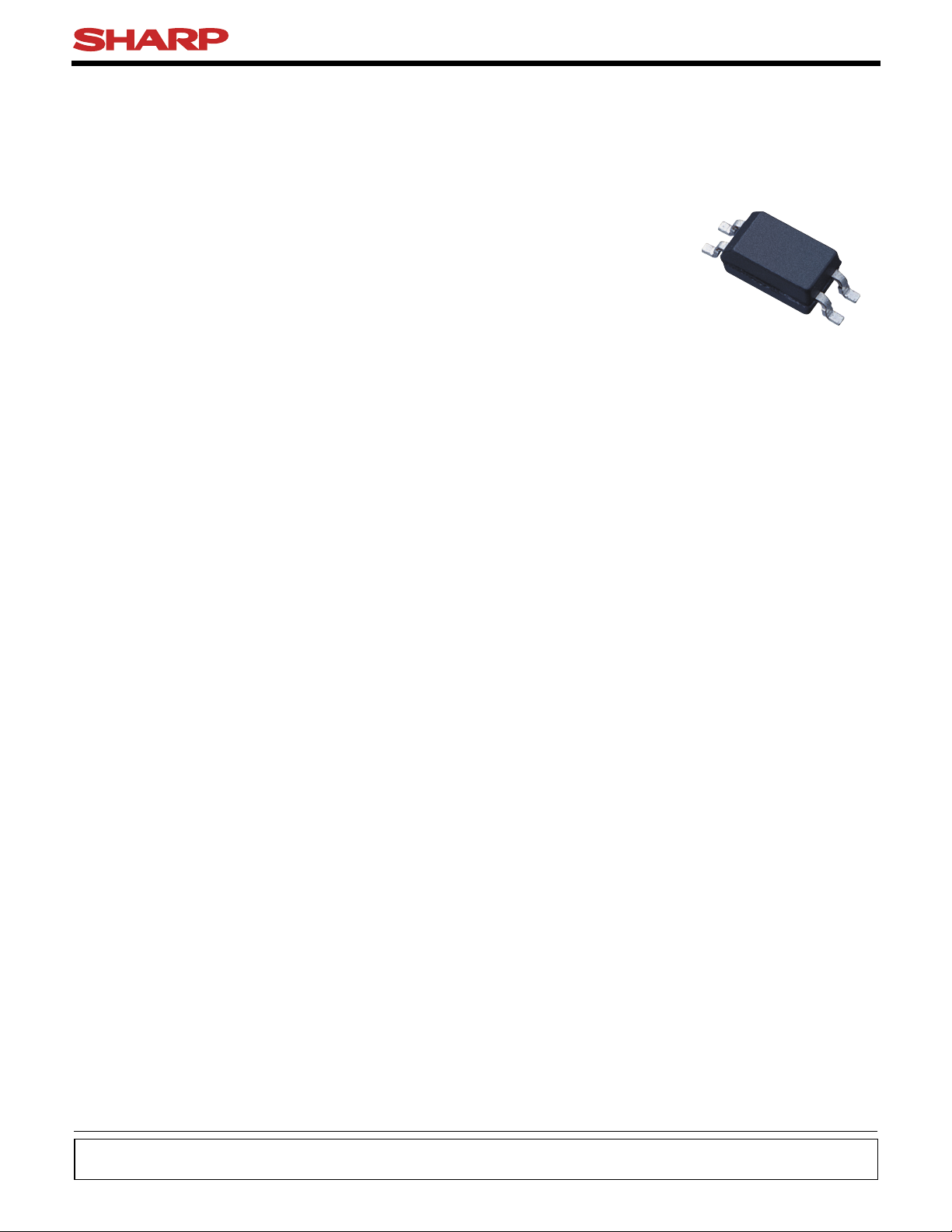

Mini-flat Half-pitch Package
Darlington Phototransistor Output
High Collector-emitter Voltage
Photocoupler
1. 4-pin Mini-flat Half pitch package (Lead pitch :
1.27mm)
2. Double transfer mold package (Ideal for Flow
Soldering)
3. High collector-emitter voltage (V
CEO
: 350V)
4. Darlington phototransistor output (CTR : MIN.1000%
at I
F
=lmA,V
CE
=2V)
5. Isolation voltage between input and output (V
iso(rms)
:
2.5kV)
6. Lead-free and RoHS directive compliant
■ Description
PC4H520NIP0F contains a IRED optically coupled
to a phototransistor.
It is packaged in a 4-pin Mini-flat, Half pitch type.
Input-output isolation voltage(rms) is 2.5kV.
Collector-emitter voltage is 350V and CTR is MIN.
1000% at input current of 1mA.
1
Sheet No.: D2-A02802EN
Date Jun. 30. 2005
© SHARP Corporation
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
PC4H520NIP0F
