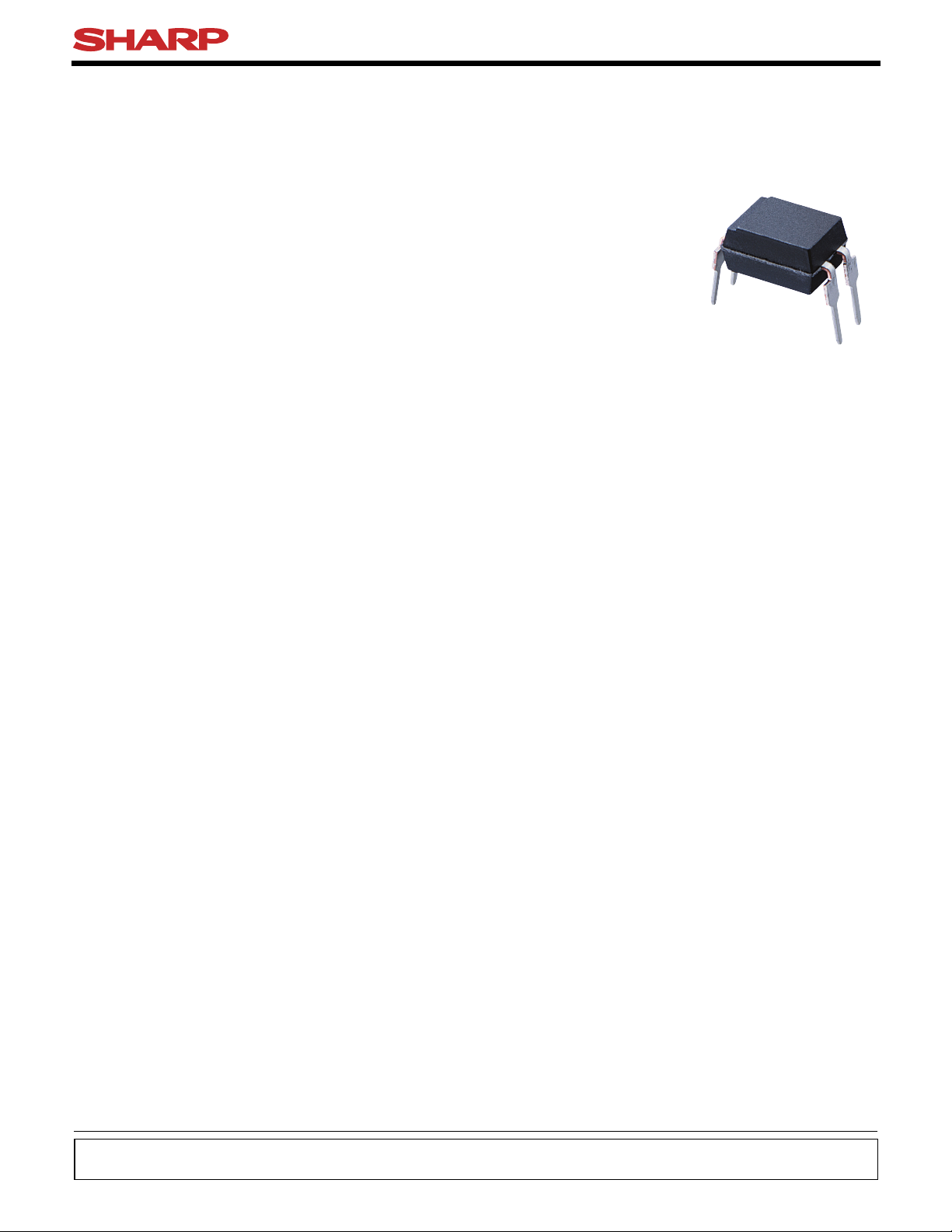

PC817X Series
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No. PC817)
2. Package resin : UL flammability grade
(94V-0)
■ Features
■ Agency approvals/Compliance
1. I/O isolation for MCUs (Micro Controller Units)
2. Noise suppression in switching circuits
3. Signal transmission between circuits of different po-
tentials and impedances
■ Applications
DIP 4pin General Purpose
Photocoupler
1. 4pin DIP package
2. Double transfer mold package (Ideal for Flow Solder-
ing)
3. High collector-emitter voltage (V
CEO
:80V
(*)
)
4. Current transfer ratio (CTR : MIN. 50% at I
F
=5 mA,
V
CE
=5V)
5. Several CTR ranks available
6. High isolation voltage between input and output
(V
iso(rms)
: 5.0 kV)
(*) Up to Date code "P7" (July 2002) V
CEO
: 35V.
From the production Date code "J5" (May 1997) to "P7" (July
2002), however the products were screened by BV
CEO
≥70V.
∗
4-channel package type is also available.
(model No. PC847X Series)
■ Description
PC817X Series contains an IRED optically coupled
to a phototransistor.
It is packaged in a 4pin DIP, available in wide-lead
spacing option and SMT gullwing lead-form option.
Input-output isolation voltage(rms) is 5.0kV.
Collector-emitter voltage is 80V
(*)
and CTR is 50%
to 600% at input current of 5mA.
1
Sheet No.: D2-A03101EN
Date Sep. 30. 2003
© SHARP Corporation
Notice The content of data sheet is subject to change without prior notice.
