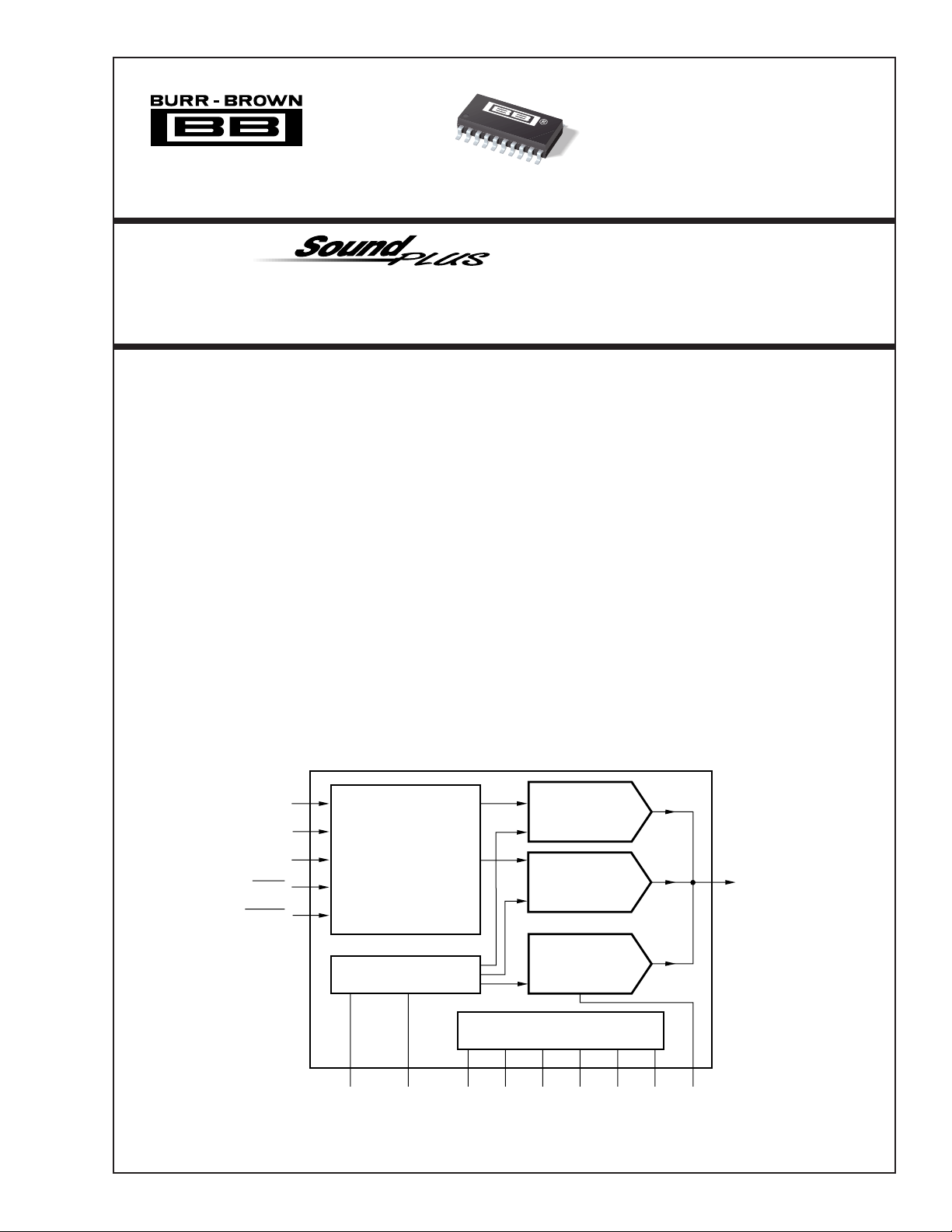

24-Bit, 96kHz
BiCMOS Sign-Magnitude
DIGITAL-TO-ANALOG CONVERTER
49%
FPO
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111 • Twx: 910-952-1111
Internet: http://www.burr-brown.com/ • FAXLine: (800) 548-6133 (US/Canada Only) • Cable: BBRCORP • Telex: 066-6491 • FAX: (520) 889-1510 • Immediate Product Info: (800) 548-6132
PCM1704
®
FEATURES
● SAMPLING FREQUENCY (f
S
): 16kHz to 96kHz
● 8X OVERSAMPLING AT 96kHz
● INPUT AUDIO DATA WORD: 20-, 24-Bit
● HIGH PERFORMANCE:
Dynamic Range: K Grade = 112dB typ
SNR: 120dB typ
THD+N: K Grade = 0.0008% typ
● FAST CURRENT OUTPUT: ±1.2mA/200ns
● GLITCH-FREE OUTPUT
● PIN-PROGRAMMABLE DATA INVERSION
● POWER SUPPLY: ±5V
● SMALL 20-LEAD SO PACKAGE
© 1998 Burr-Brown Corporation PDS-1454C Printed in U.S.A. February, 1999
TM
DESCRIPTION
The PCM1704 is a precision, 24-bit digital-to-analog
converter with exceptionally high dynamic perfor-
mance. The ultra-low distortion and excellent low-
level signal performance makes the PCM1704 an ideal
candidate for high-end consumer and professional
audio applications. When used with a digital interpo-
lation filter, the PCM1704 supports 8X oversampling
at 96kHz.
The PCM1704 incorporates a BiCMOS sign-magni-
tude architecture that eliminates glitches and other
nonlinearities around bipolar zero. The PCM1704 is
precision laser-trimmed at the factory to minimize
differential linearity and gain errors.
In addition to high performance audio systems, the
PCM1704 is well-suited to waveform synthesis appli-
cations requiring very low distortion and noise.
Serial Input
and
Control Logic
Reference and Servo
REF DC SERVO DC DGND +V
DD
–V
CC
AGND
23-Bit DAC A
23-Bit DAC B I
OUT
Bipolar Offset
INVERT
20-BIT
WCLK
DATA
BCLK
Power Supply
–V
DD
+V
CC
BPO DC
PCM1704
